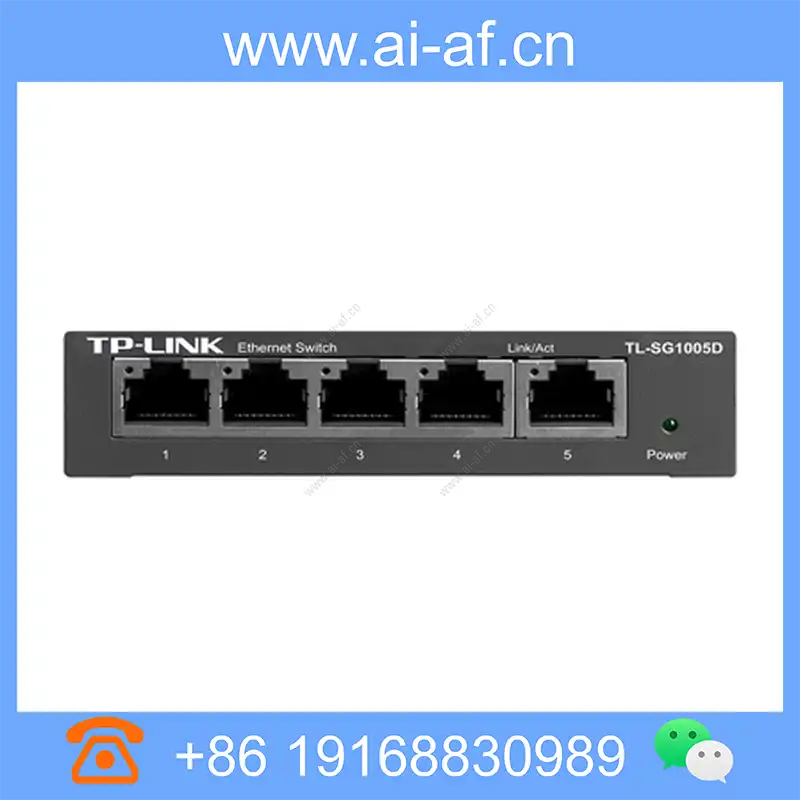

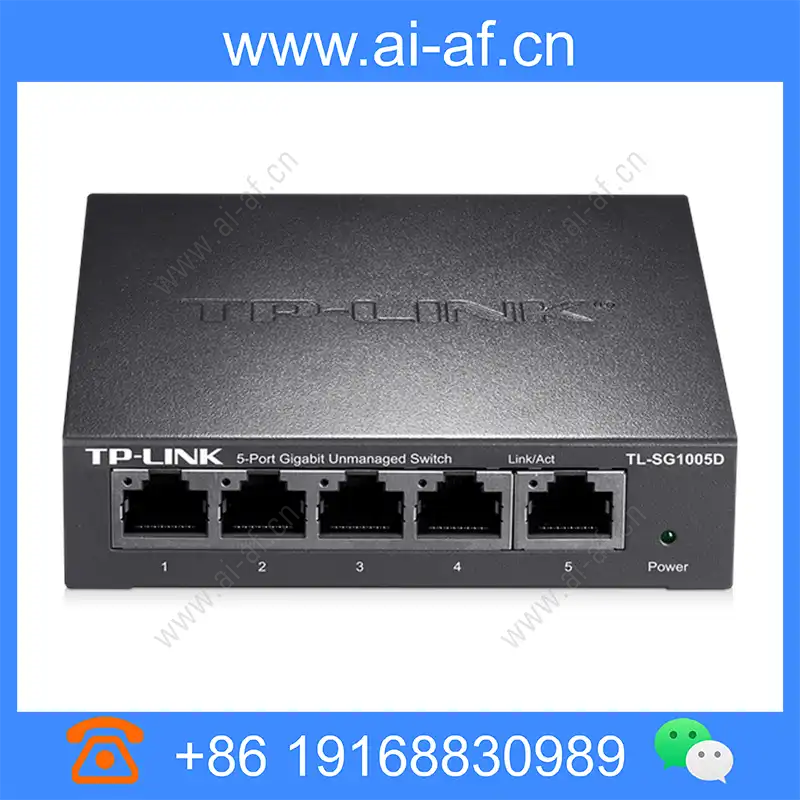

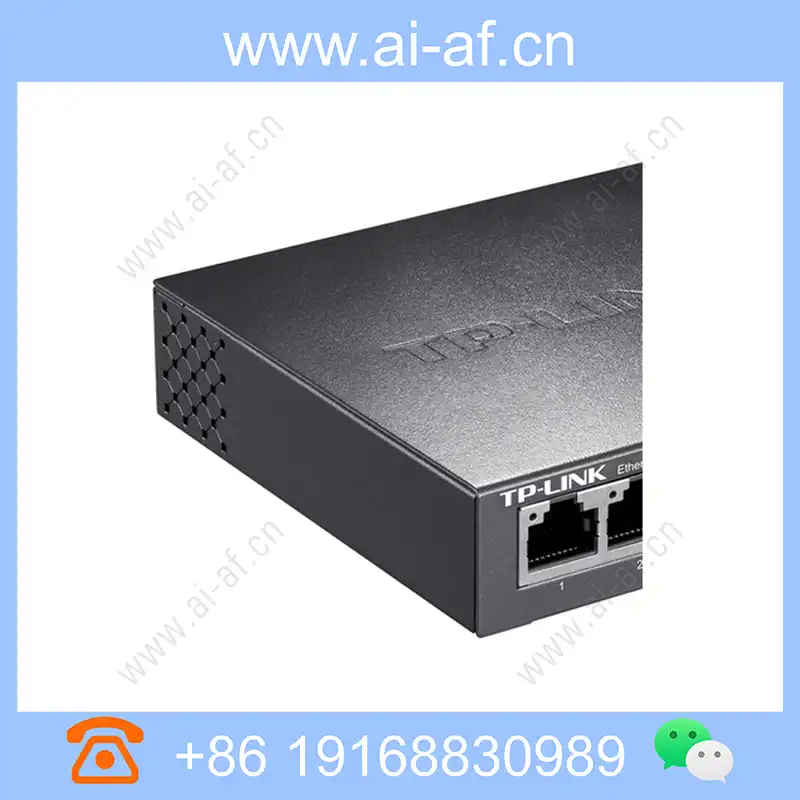

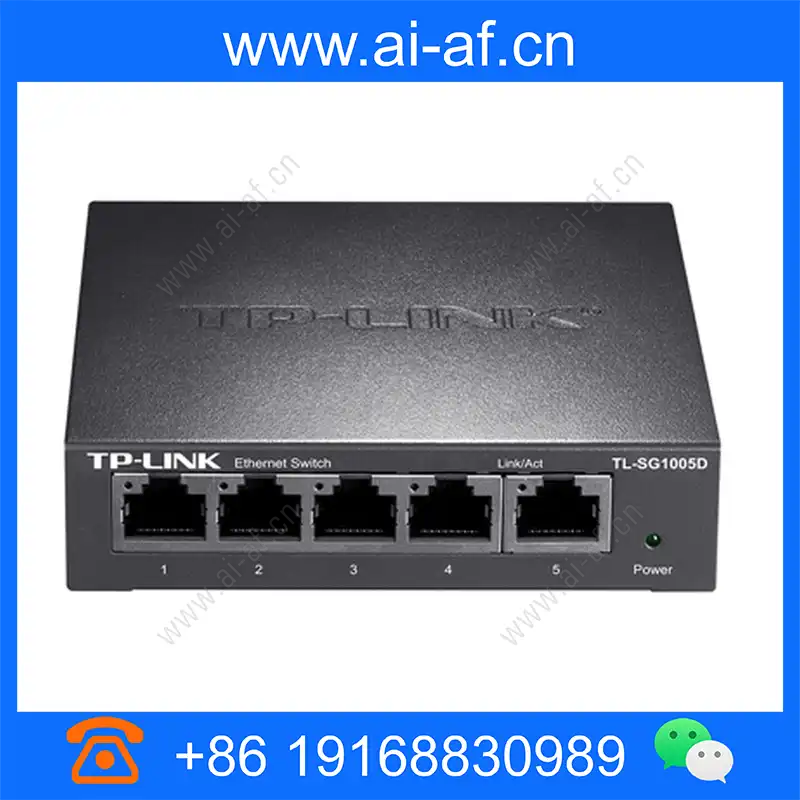

TP-LINK TL-SG1005D 5-port full gigabit unmanaged switch iron layer 2
5 10/100/1000M adaptive RJ45 ports All ports have wire-speed forwarding capabilities Support port auto flip (Auto MDI / MDIX) function Support MAC address self-learning; support full-duplex working mode Desktop housing, plug and play, no management required TL-SG1005D is a full Gigabit unmanaged switch product, providing 5 10/100/1000M adaptive RJ45 ports, all ports support wire-speed forwarding and MDI/MDIX automatic flip function, plug and play. Port performance Provide 5 10/100/1000M adaptive RJ45 ports, all ports can realize wire-speed forwarding; Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation; Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. Simple to use Plug and play, no management required; dynamic LED
Product Features
TL-SG1005D is a full Gigabit unmanaged switch product, providing 5 10/100/1000M adaptive RJ45 ports, all ports support wire-speed forwarding and MDI/MDIX automatic flip function, plug and play. Port performanceProvide 5 10/100/1000M adaptive RJ45 ports, all ports can realize wire-speed forwarding; Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation; Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. Simple to usePlug and play, no management required; dynamic LED indicators provide simple working status prompts and troubleshooting. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Network Standard | IEEE 802.3 、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x |
| port | Five 10/100/1000Mbps RJ45 ports |
| Indicator light | 1 Link/Ack indicator per port 1 Power indicator per device |
| performance | Store and forward support 2K MAC address table depth |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing |
| Input power | 5VDC/0.4A |
| Dimensions (L x W x H) | 100mm x 98mm x 25mm |
