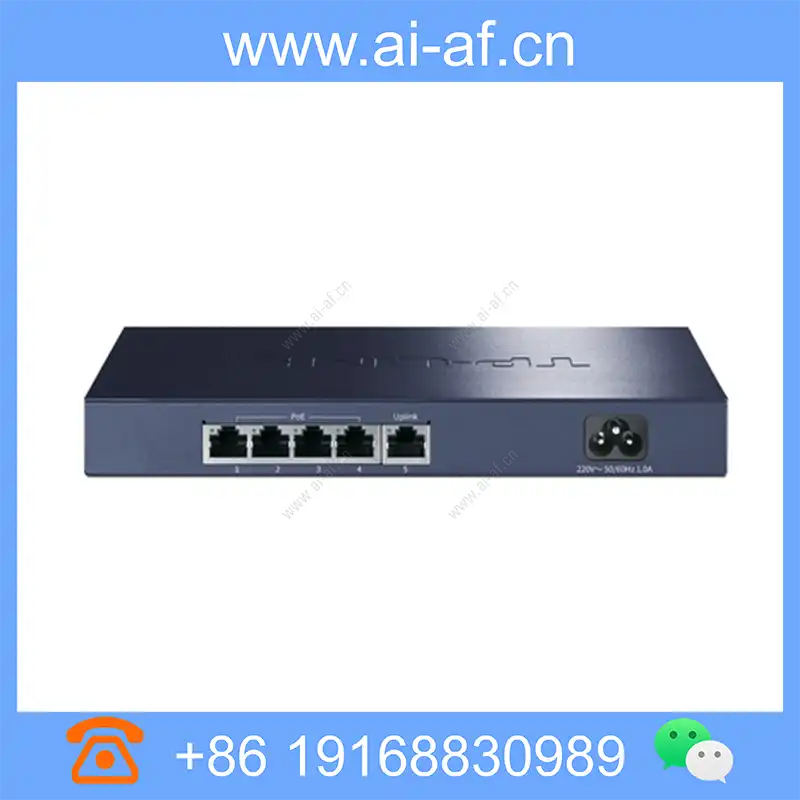

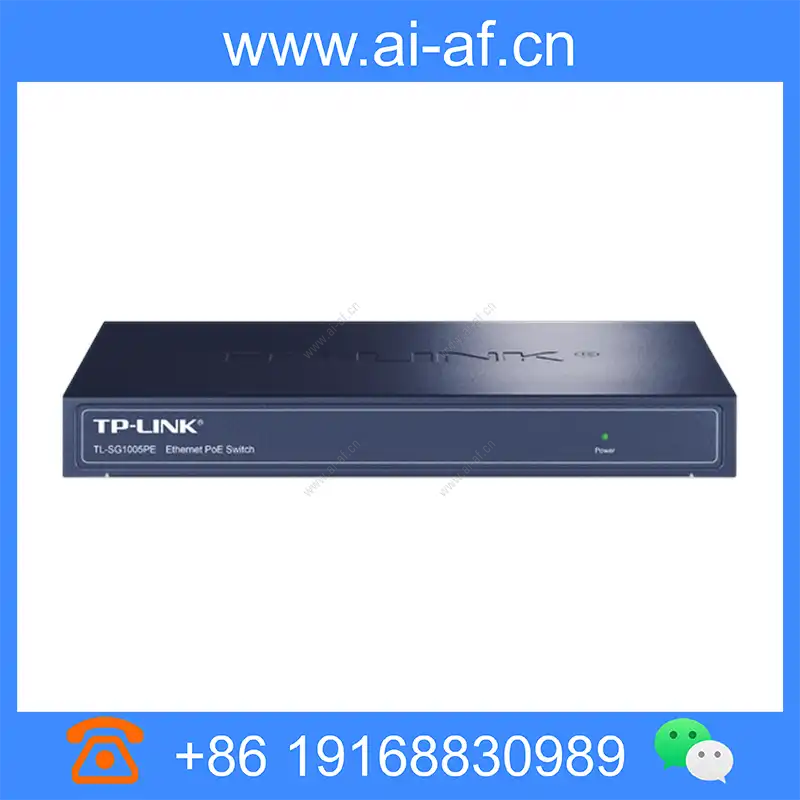

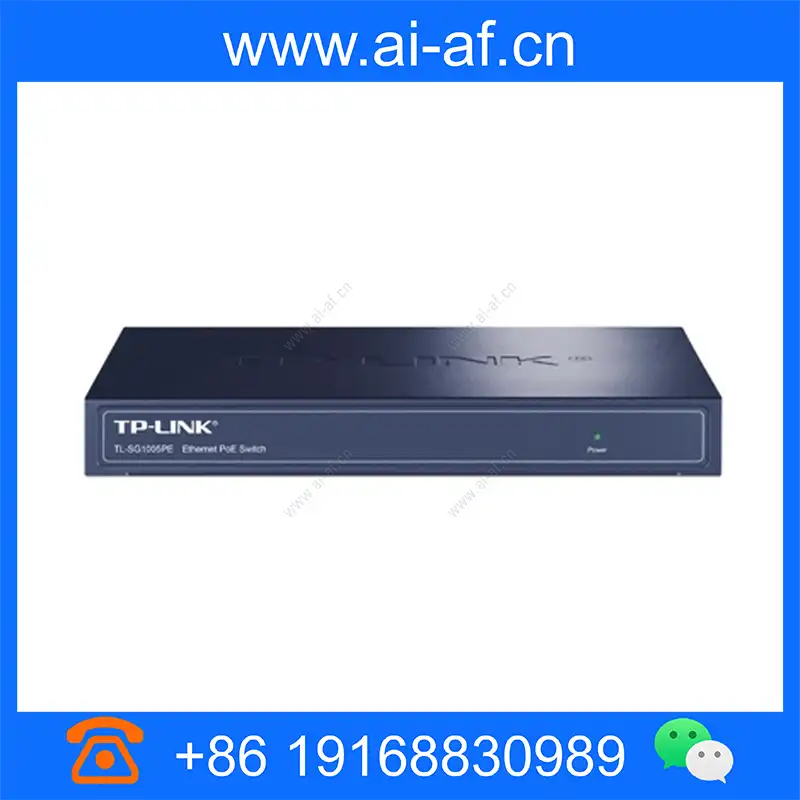

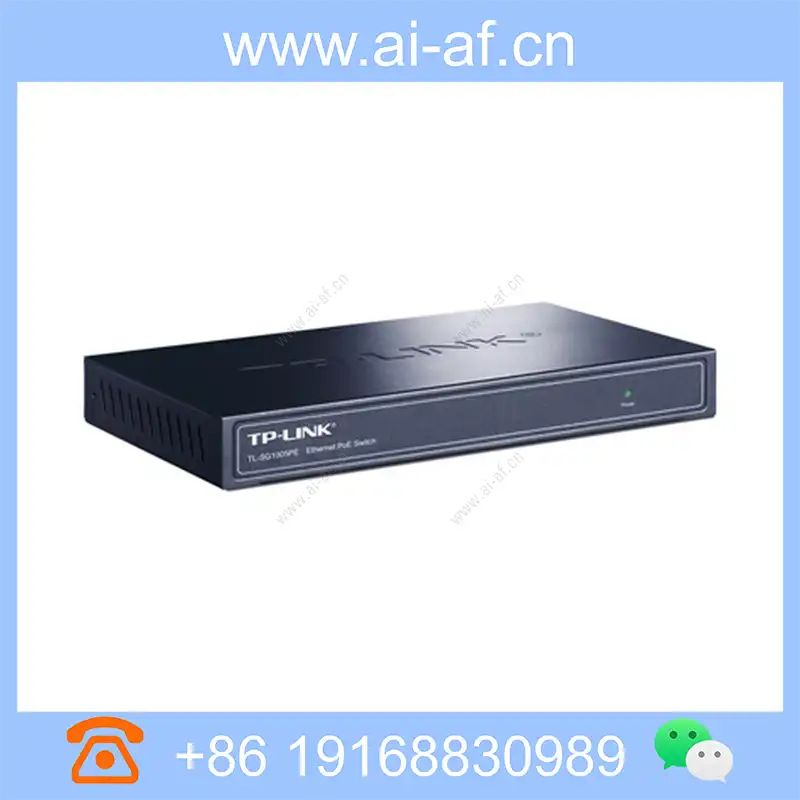

TP-LINK TL-SG1005PE 5-port full gigabit unmanaged PoE switch 1GE 4PoE 62W iron shell

Brand: TP-LINK

Model: TL-SG1005PE

Dimensions: 226mm x 131mm x 35mm

Four 10/100/1000Base-T RJ45 ports support PoE + power supply 1 10/100/1000Base-T RJ45 uplink port The maximum PoE power supply of the whole machine is 62W, and the maximum PoE power supply of a single port is 30W PoE power port supports priority mechanism Product model TL-SG1210PT TL-SG1210P TL-SG1009PH TL-SG1005PE TL-SG1005P Gigabit RJ45 port 9 9 9 5 5 Gigabit SFP port 1 1 0 0 0 PoE port 8GE 8GE 8GE 4GE 4GE PoE output power 121W 54W 76W 62W 57W Machine power consumption 134W 68W 88W 70W 66W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Mode switch Standard switching, video surveillance, VLAN isolation no MAC address capacity 4K 4K 2K 2K 2K Shell size (mm) 171×98×27 171×98×27 226×131×35 226×131×35 100×98×25 Input power 53.5VDC/2.4A 53.5VDC/1.13A 220VAC , 50Hz 53.5VDC/1.13A Use environment

Product Features

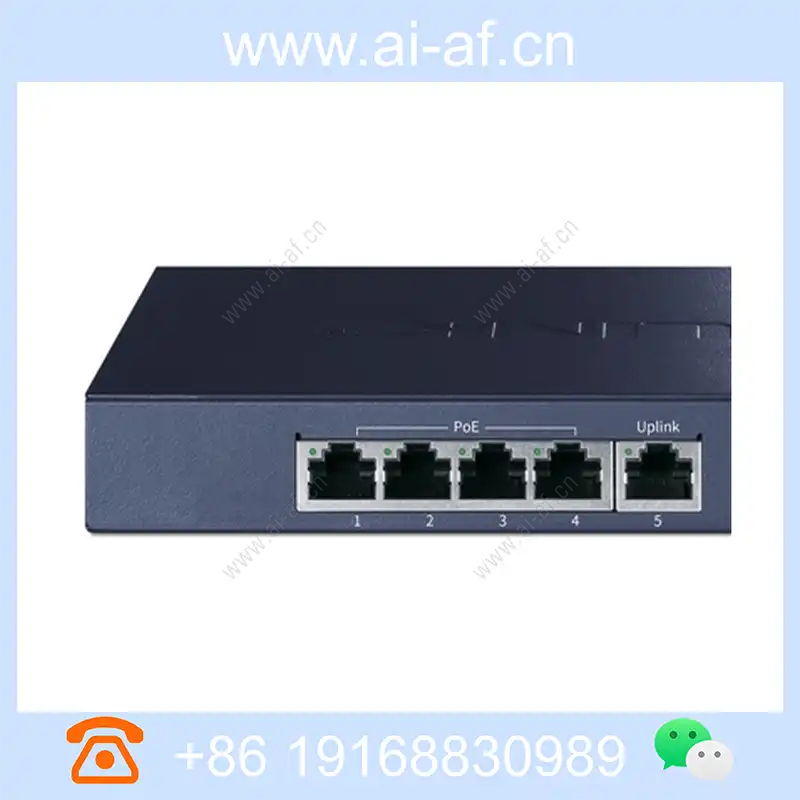

Four 10/100/1000Base-T RJ45 ports support PoE + power supply
1 10/100/1000Base-T RJ45 uplink port
The maximum PoE power supply of the whole machine is 62W, and the maximum PoE power supply of a single port is 30W
PoE power port supports priority mechanism

Product model	TL-SG1210PT	TL-SG1210P	TL-SG1009PH	TL-SG1005PE	TL-SG1005P
Gigabit RJ45 port	9	9	9	5	5
Gigabit SFP port	1	1	0	0	0
PoE port	8GE	8GE	8GE	4GE	4GE
PoE output power	121W	54W	76W	62W	57W
Machine power consumption	134W	68W	88W	70W	66W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Mode switch	Standard switching, video surveillance, VLAN isolation		no
MAC address capacity	4K	4K	2K	2K	2K
Shell size (mm)	171×98×27	171×98×27	226×131×35	226×131×35	100×98×25
Input power	53.5VDC/2.4A	53.5VDC/1.13A	220VAC , 50Hz		53.5VDC/1.13A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
Gigabit RJ45 port	5
Gigabit SFP port	0
PoE port	4GE
PoE output power	62W
Machine power consumption	70W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Mode switch	no
MAC address capacity	2K
Shell size (mm)	226x131x35
Input power	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
