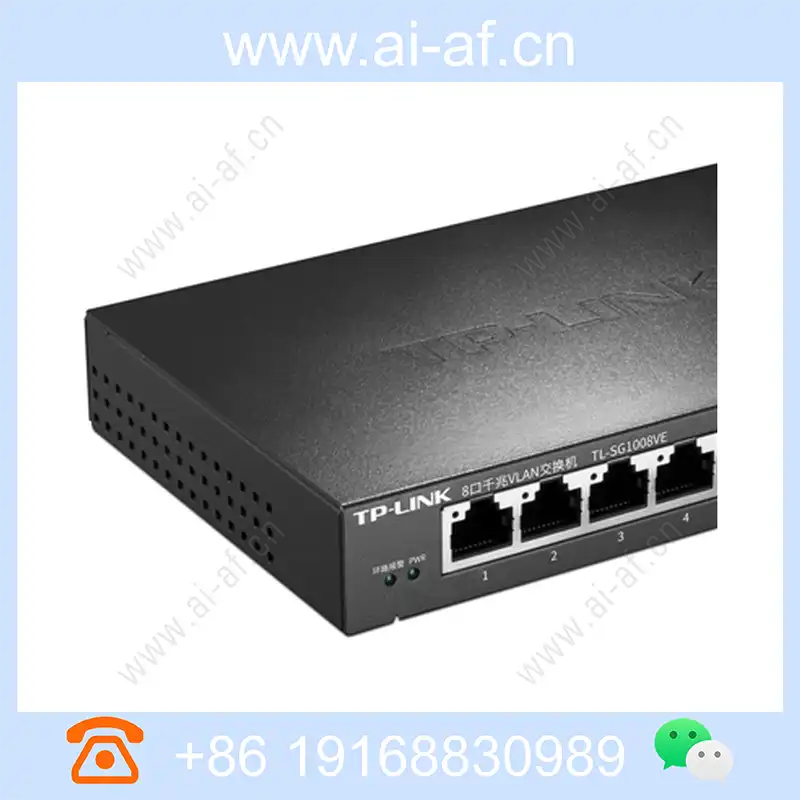

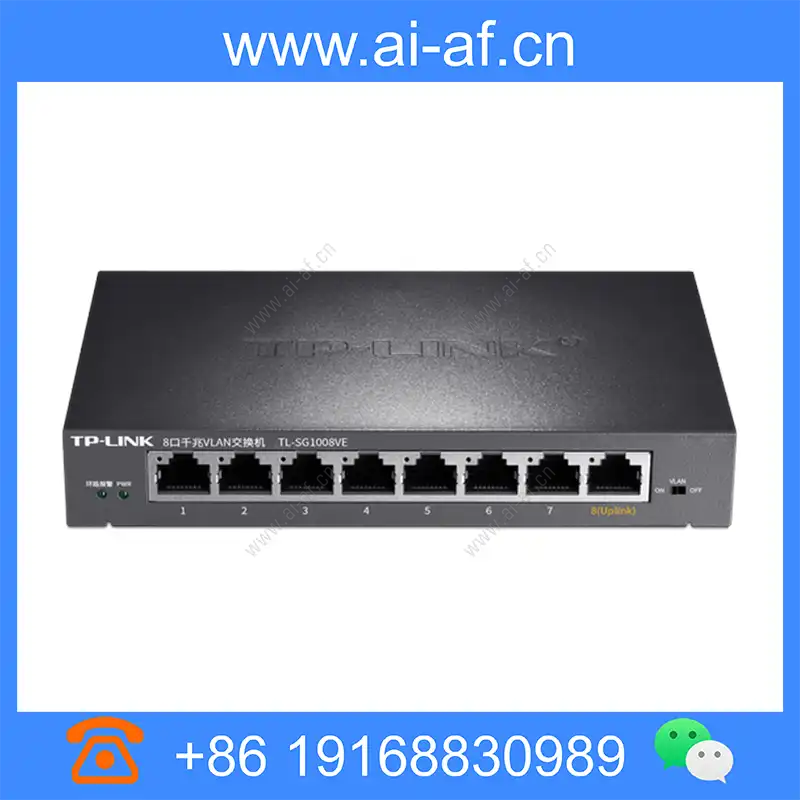

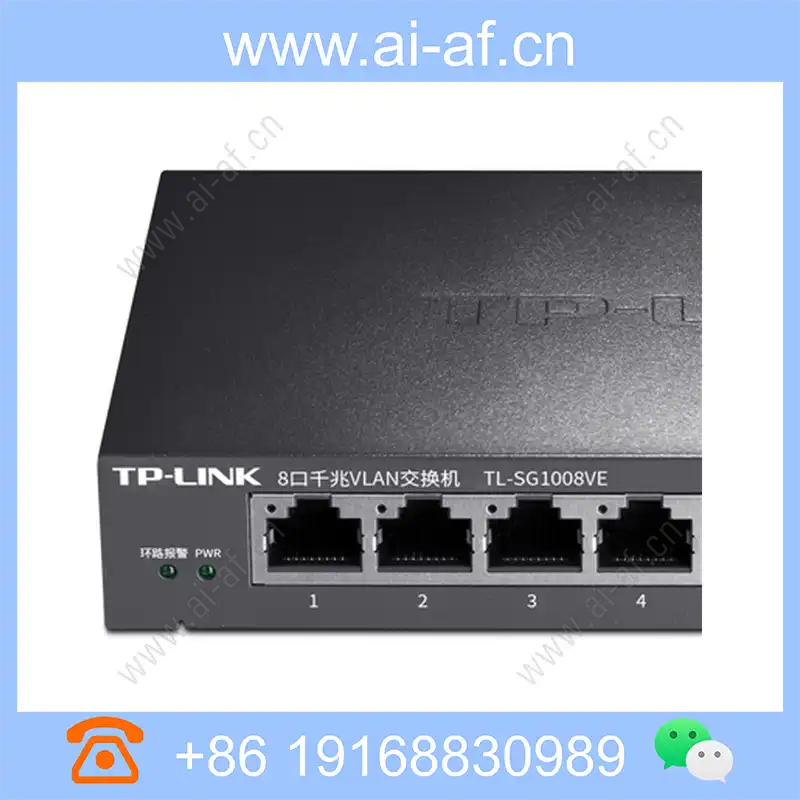

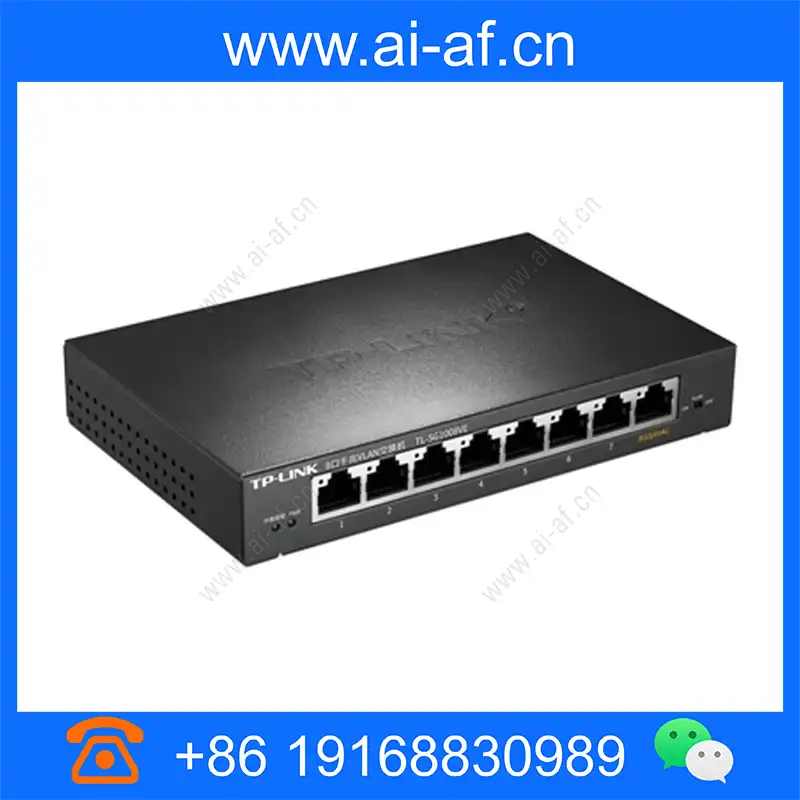

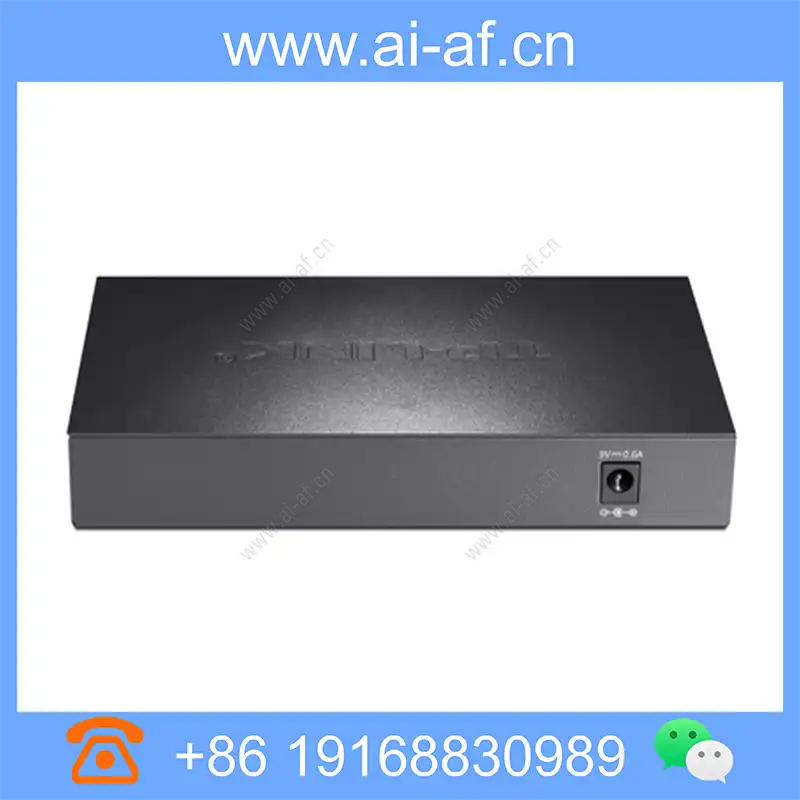

TP-LINK TL-SG1008VE 8-port gigabit VLAN switch iron shell layer 2 supports port isolation

• Eight 10/100/1000M adaptive RJ45 ports
• Support VLAN switch controllable function
• Support loop monitoring function, feedback loop fault in time
• Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
• Support port auto flip (Auto MDI / MDIX) function
• Supports autonomous learning and aging of MAC addresses

TL-SG1008VE is oriented by Pulian Technology Co., Ltd.Residential area, urban village and small and medium-sized enterprise networkThe developed 8-port VLAN switch product provides 8 10/100/1000M Ethernet ports, plug and play, and also provides hardware VLAN switch and loop monitoring functions to meet the needs of isolation and troubleshooting at the network access layer .

8 Gigabit ports, plug and play

Provide 8 10/100/1000M adaptive RJ45 ports, all ports can realize wire-speed forwarding;

Each port supports MDI / MDIX automatic rollover and duplex / rate auto-negotiation;

Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;

Plug and play, no management required; dynamic LED indicators provide simple working status prompts.

VLAN one-click switch

Provide hardware VLAN switch, which can be flexibly switched according to the actual environment.

When the VLAN function is enabled, ports 1-7 cannot access each other and can only communicate with port 8 to achieve port isolation, suppress network storms, and improve network security;

When the VLAN function is disabled, the 8 ports can communicate with each other.

Loop monitoring

Built-in loop monitoring function. When a loop fault occurs, the loop alarm indicator and the corresponding fault port indicator flash at the same frequency, prompting the user to eliminate the loop fault in real time and restore the normal operation of the network.
