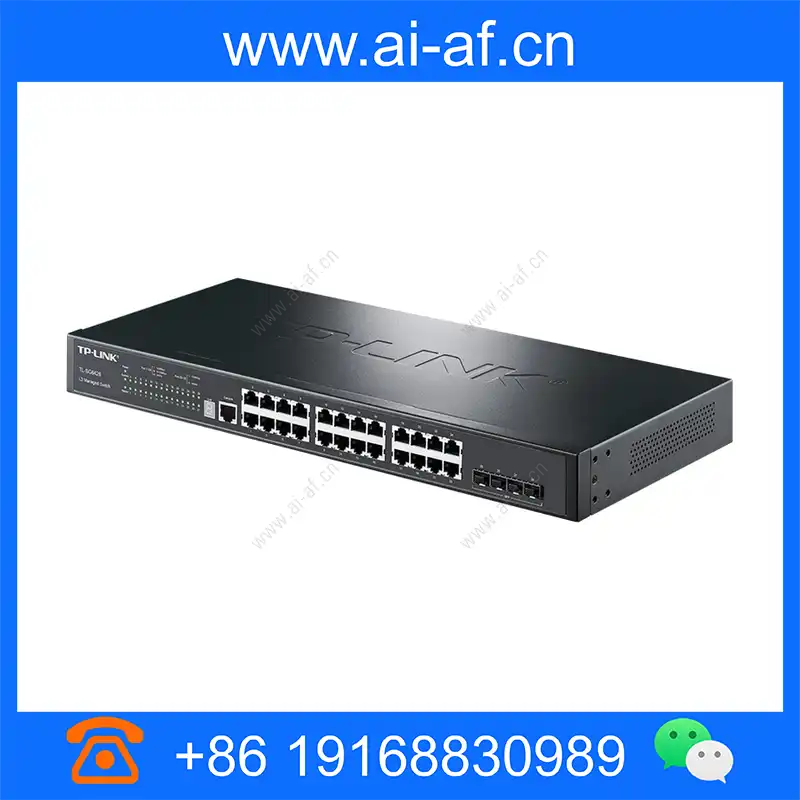

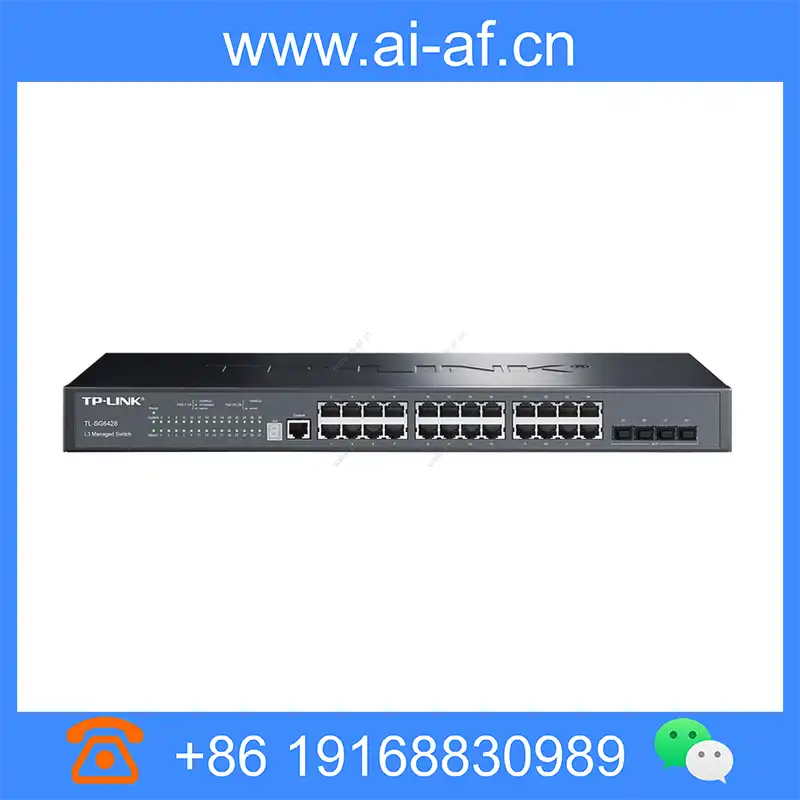

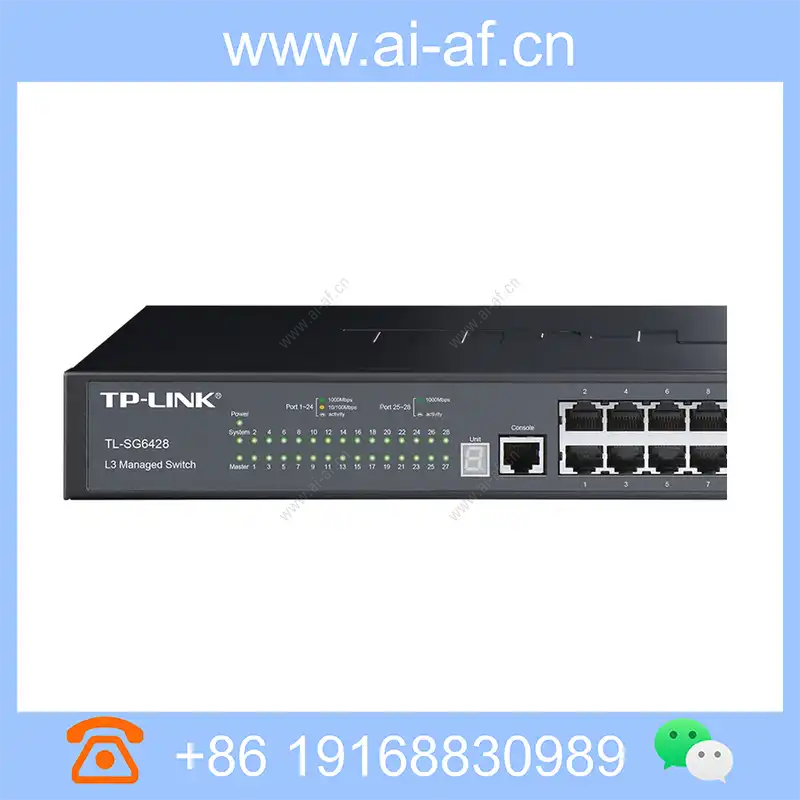

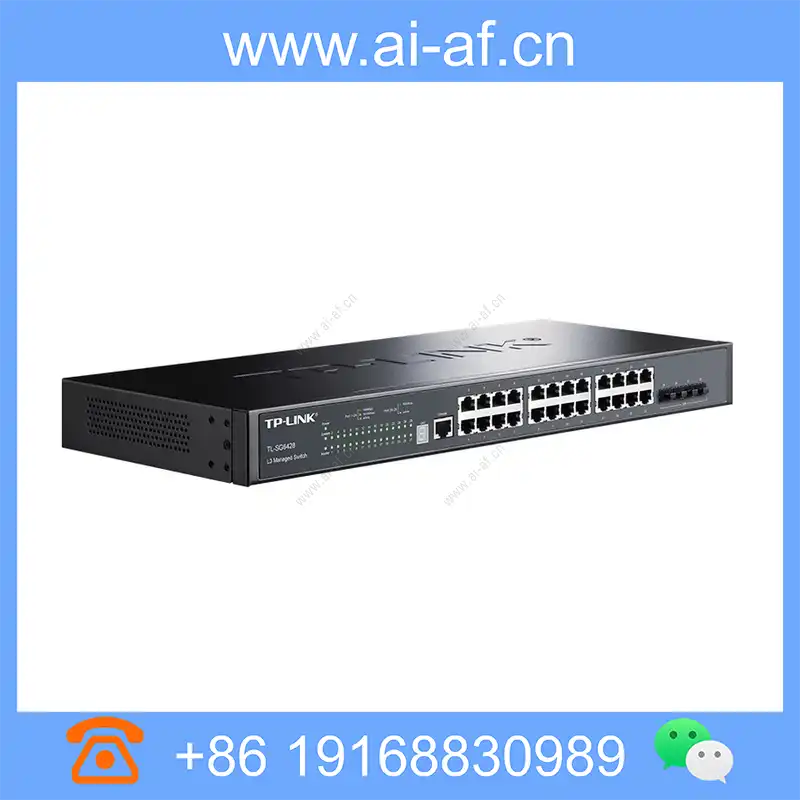

TP-LINK TL-SG6428 Full Gigabit Stacked Three-Layer Network Management Switch

Brand: TP-LINK

Model: TL-SG6428

Dimensions: 440mm x 180mm x 44mm

24 10/100/1000Base-T RJ45 ports 4 independent Gigabit SFP ports Support TP-LINK commercial cloud platform management Support stacking, up to 8 stacking units Support OSPF / RIP dynamic route, static route, ARP proxy Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support Web network management, CLI command line, SNMP port

24 10/100/1000Mbps port
4 independent Gigabit sfp
1 console port

Power consumption

MAC address depth

performance

Exchange capacity: 336Gbps
Packet forwarding rate: 87Mpps

size

440mmx180mmx44mm

working environment

Product Features

24 10/100/1000Base-T RJ45 ports
4 independent Gigabit SFP ports
Support TP-LINK commercial cloud platform management
Support stacking, up to 8 stacking units
Support OSPF / RIP dynamic route, static route, ARP proxy
Support DHCP server, DHCP relay, DHCP Snooping
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
Support Web network management, CLI command line, SNMP

Technical Specifications

Property Description	Property Value
port	24 10/100/1000Mbps port 4 independent Gigabit sfp 1 console port
Power consumption	18W
MAC address depth	16K
performance	Exchange capacity: 336Gbps Packet forwarding rate: 87Mpps
size	440mmx180mmx44mm
working environment	operating temperature: 0°C ~ 40°C Working humidity: 10% ~ 90% (no condensation)
routing	support OSPF, RIP dynamic routing support static routing support ARP proxy
Safety features	IP-Mac-Port-VID quad-binding IP source protection, DOS protection, port security 802.1x authentication, guest vlan
Access control	supports the flow rate-based speed limit based on the L2 ~ L4 package based on the time period, the destination port reDirection, QoS heavy mark support based on port, VLAN Download Policy
VLAN	802.1Q VLAN、MAC VLAN、Private VLAN、Protocol Based VLAN、Voice VLAN VLAN VPN GARP/GVRP
Address table	MAC address display / query, MAC address filter static MAC address setting, dynamic MAC address management support IVL
Port management	port convergence, port monitoring, port speed storm suppression
Spanning tree	STP (802.1d), RSTP (802.1W), MSTP (802.1s) spanning tree security
Multicast management	IGMP V1/V2/V3 multicast address management, multicast VLAN, multicast routing port, static multicast address unknown multicast discard, group Broadcasting filter, Fast Leave
QoS	8 port queue supports port, 802.1p, and DSCP / TOS priority support EQU, SP, WRR, SP + WRR four priorities Level scheduling mode
DHCP	DHCP Server, DHCP relay DHCP Snooping, DHCP attack protection, Option82
system maintenance	Support Configuration Import Export and System Time Setting Ring Backup Detection, Cable Detection, Ping, Tracert Detection Display / Filter System Log, Log Server
System Management	supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2) SNMP V1/V2/V3 ( TP-LINK MIBS), national standard cluster management software free upgrade
Safety management	supports port, Mac, IP address security management
