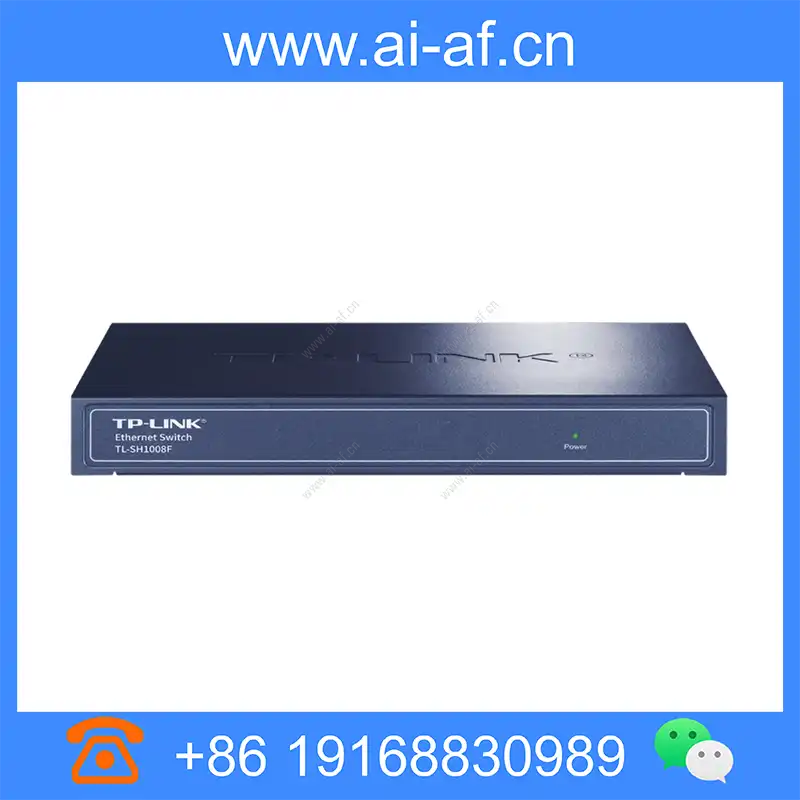

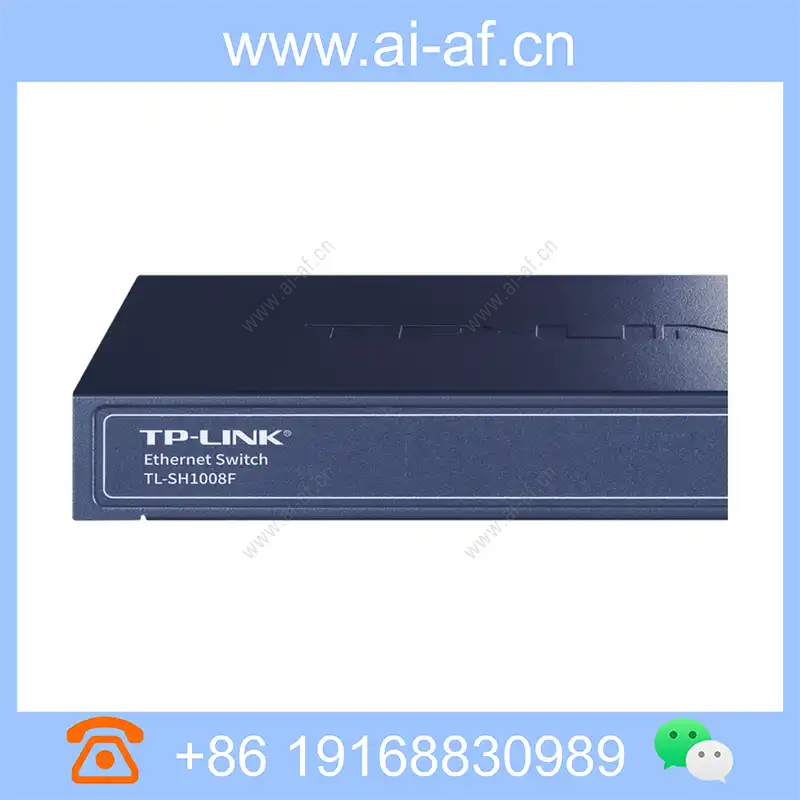

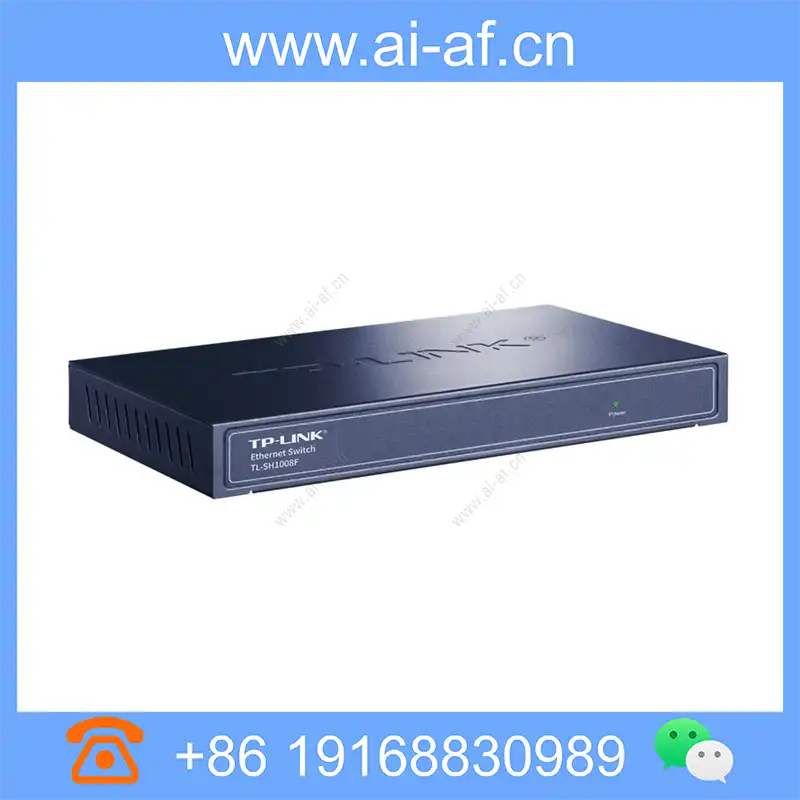

TP-LINK TL-SH1008F 2.5Gbps Ethernet Switch

Brand: TP-LINK

Model: TL-SH1008F

Dimensions: 226mm x 131mm x 35mm

Provide 8 2.5Gbps SFP ports All ports have wire-speed forwarding capabilities Plug and play, no configuration required Support IEEE 802.3z, 802.3cb standard technical standard

IEEE 802.3、IEEE 802.3z、IEEE 802.3cb、IEEE 802.3x

port

8 2.5Gbps SFP ports

Indicator light

Link/Act: Green corresponds to the port connecting the device with a rate of 2.5Gbps, and orange corresponds to the port connecting the device with a rate of 1Gbps
Power: Power indicator

performance

Storage Forwarded
Support 16K MAC address table depth

Use environment

operating temperature: 0°C ~ 40°C
storage temperature: -40°C ~ 70°C
Working humidity: 10% ~ 90% RH does not condense
Storage

Product Features

Provide 8 2.5Gbps SFP ports
All ports have wire-speed forwarding capabilities
Plug and play, no configuration required
Support IEEE 802.3z, 802.3cb standard

Technical Specifications

Property Description	Property Value
technical standard	IEEE 802.3、IEEE 802.3z、IEEE 802.3cb、IEEE 802.3x

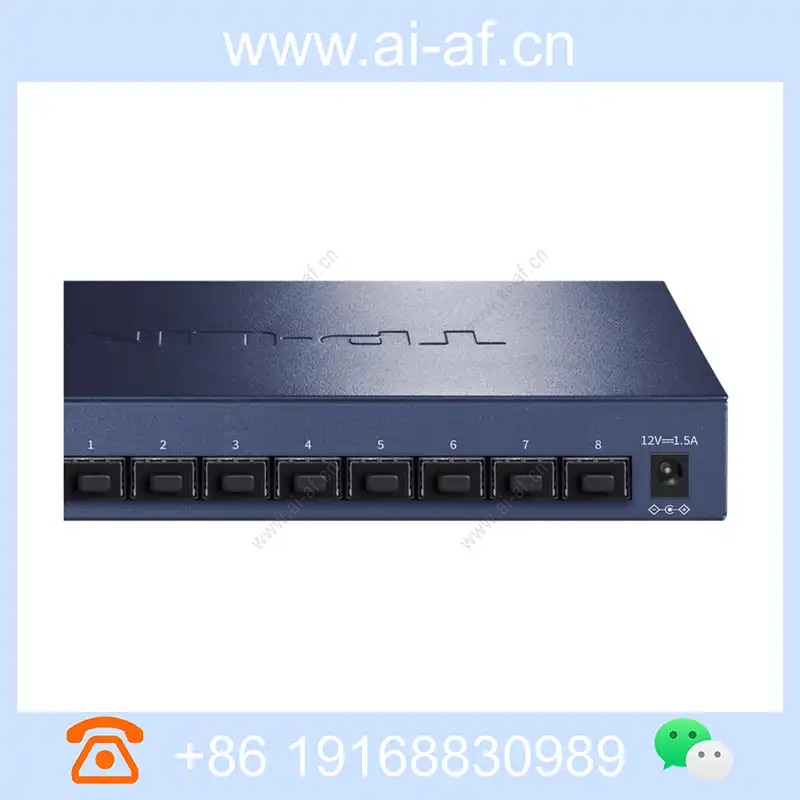

port	8 2.5Gbps SFP ports

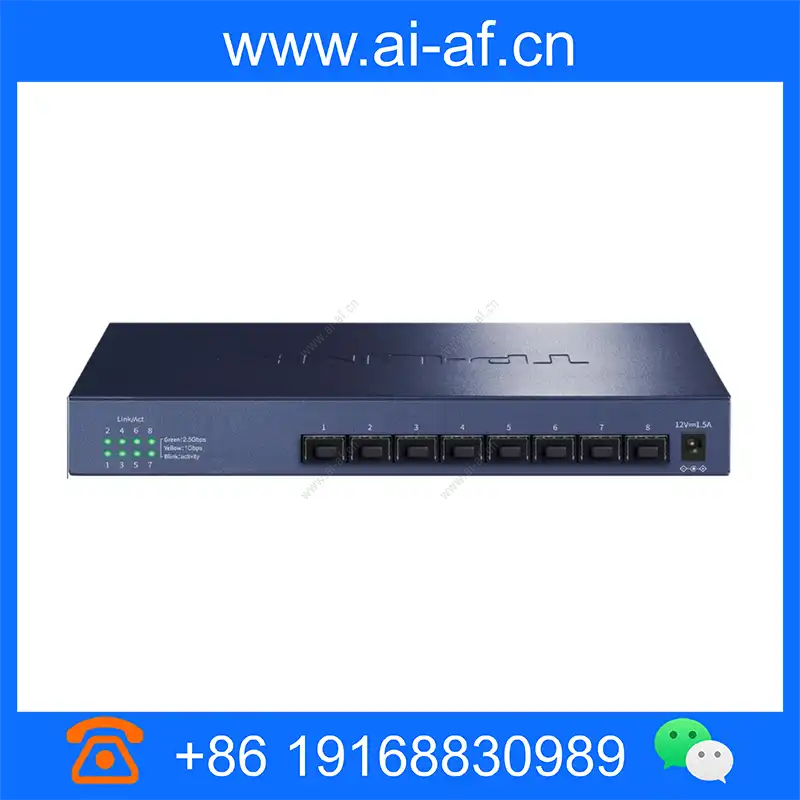

Indicator light	Link/Act: Green corresponds to the port connecting the device with a rate of 2.5Gbps, and orange corresponds to the port connecting the device with a rate of 1Gbps Power: Power indicator
performance	Storage Forwarded Support 16K MAC address table depth
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
Input power	12VDC/1.5A
Shell size (LxWxH)	226mm x 131mm x 35mm
