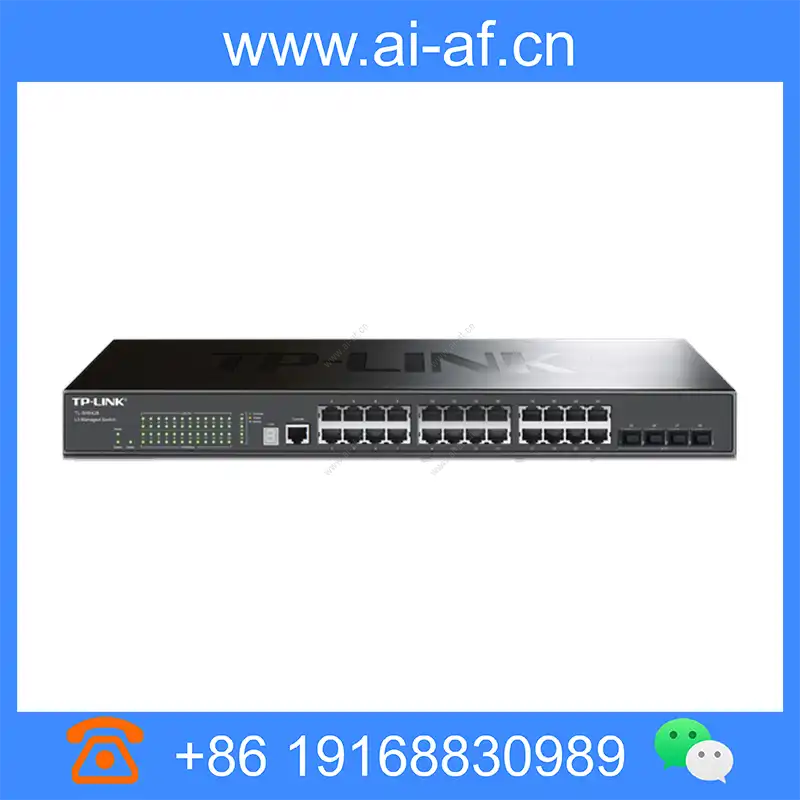

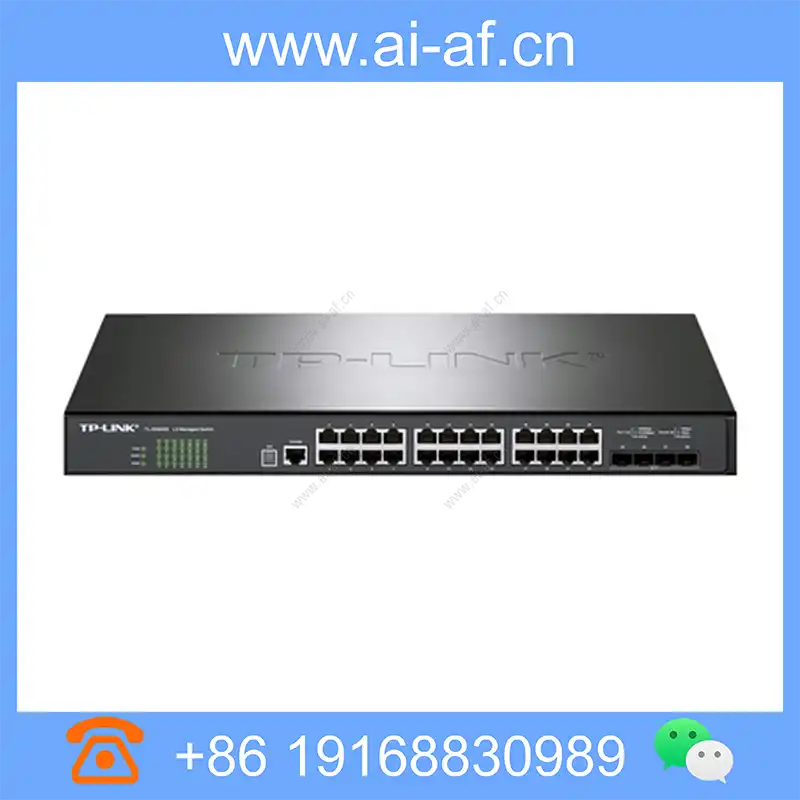

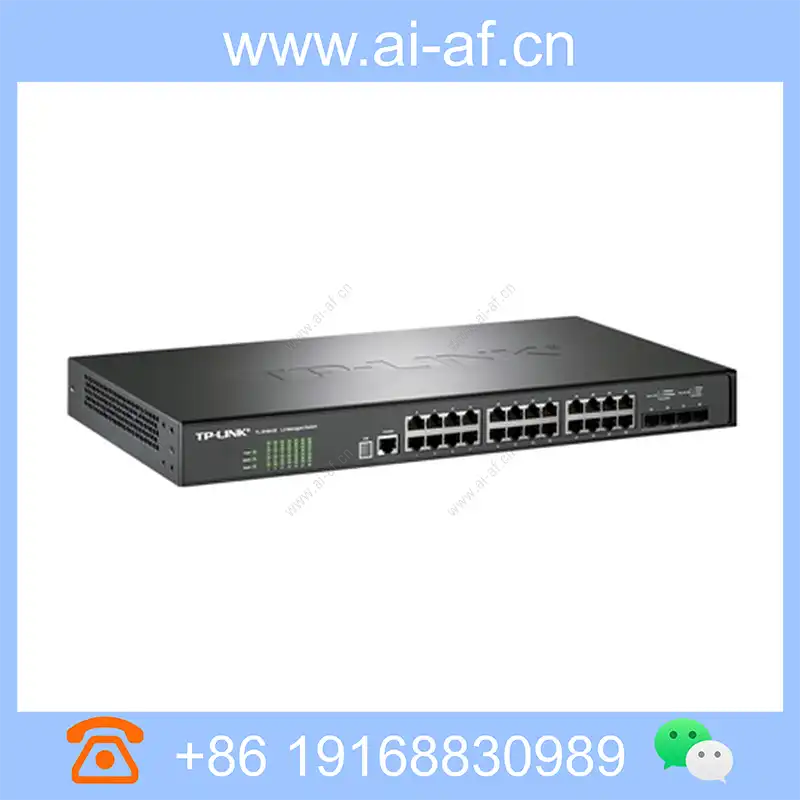

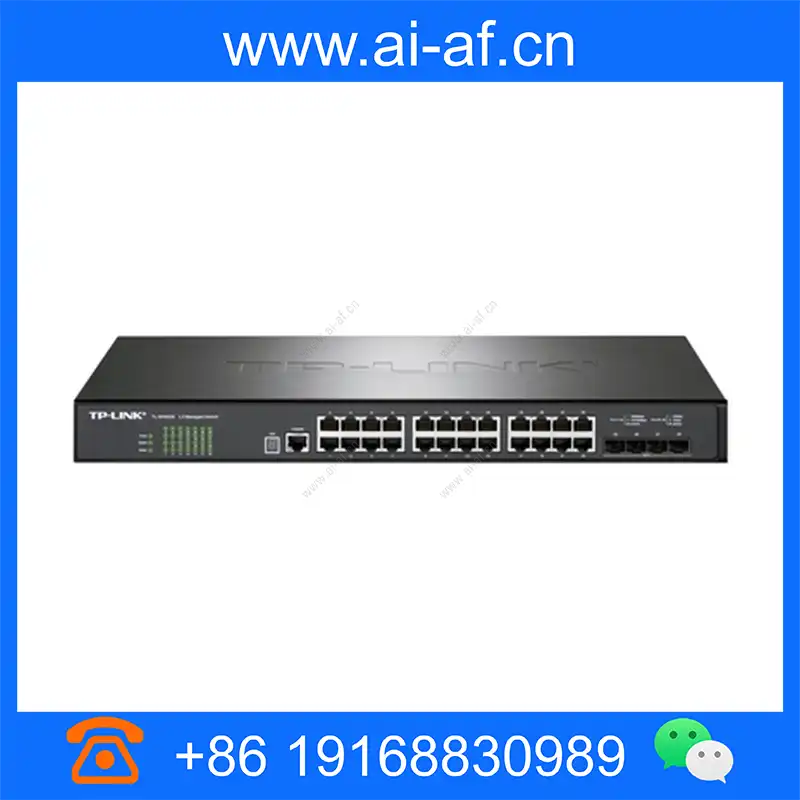

TP-LINK TL-SH6428 gigabit uplink stacked layer 3 managed switch 24GE 4SFP+

Brand: TP-LINK

Model: TL-SH6428

Dimensions: 440mm x 220mm x 44mm

24 10/100/1000Base-T RJ45 ports 4 x 10 Gig SFP+ ports Support TP-LINK commercial cloud platform management Support OSPF, RIP dynamic routing, static routing Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support Web network management, CLI command line, SNMP Support stacking, up to 8 stacking units Product model TL-SH8434F TL-SH8434 TL-SH7428F TL-SH7428 TL-SH6428 Exchange capacity 432Gbps 432Gbps 432Gbps 432Gbps 336Gbps Packet forwarding rate 167Mpps 167Mpps 120Mpps 120Mpps 120Mpps Gigabit RJ45 port 4 (independent) 28 8 (multiplexed) 24 24 Gigabit SFP port 24 4 (multiplexed) 24 4 (multiplexed) 0 10G SFP+ port 4 4 4 4 4 QSFP+ stacking port 2 2 0 0 0 RJ45 Console

Product Features

24 10/100/1000Base-T RJ45 ports
4 x 10 Gig SFP+ ports
Support TP-LINK commercial cloud platform management
Support OSPF, RIP dynamic routing, static routing
Support DHCP server, DHCP relay, DHCP Snooping
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
Support Web network management, CLI command line, SNMP
Support stacking, up to 8 stacking units

Product model	TL-SH8434F	TL-SH8434	TL-SH7428F	TL-SH7428	TL-SH6428
Exchange capacity	432Gbps	432Gbps	432Gbps	432Gbps	336Gbps
Packet forwarding rate	167Mpps	167Mpps	120Mpps	120Mpps	120Mpps
Gigabit RJ45 port	4 (independent)	28	8 (multiplexed)	24	24
Gigabit SFP port	24	4 (multiplexed)	24	4 (multiplexed)	0
10G SFP+ port	4	4	4	4	4
QSFP+ stacking port	2	2	0	0	0
RJ45 Console port	1	1	1	1	1
Micro USB Console port	1	1	1	1	0
USB storage port	1	1	1	1	0
Management management port	1	1	1	1	0
RPS redundant power connector	stand by	stand by	stand by	stand by	not support
Stack	Support (8 stacking units)	Support (8 stacking units)	Not currently supported (subsequent software upgrade support)	Support (8 stacking units)	Support (8 stacking units)
MAC address capacity	32K	32K	16K	16K	16K
TP-LINK commercial cloud platform	stand by	stand by	stand by	stand by	stand by
routing	Support BGP dynamic routing Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support BGP dynamic routing Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy	Support OSPF dynamic routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60
VLAN	Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function
MAC address table	Follows IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table
Safety features	Based on user hierarchical management and password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN quaternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection function
Access Control (ACL)	Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS remarking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast	Support PIM-DM, PIM-SM, static multicast routing (TL-SH6428 does not support PIM-DM, PIM-SM) Support IGMP v1/v2/v3 Snooping Support quick leave mechanism Multicast VLAN supported Support multicast filtering, packet statistics, unknown multicast discard
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support CPU monitoring, memory monitoring Support system logs, graded warnings Support Ping, Tracert detection, cable detection
Shell size (mm)	440×220×44	440×220×44	440×220×44	440×220×44	440×220×44
Input power	100~240VAC, 50/60Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM512LS-10KM	10Gbps	10km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM512LS-5KM	10Gbps	5km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM512LM-300m	10Gbps	300m	OM3 MMF, Double Fiber LC	850nm	0~70℃
	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM510U	10Gbps	30m	Super six network cable	—	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
Gigabit RJ45 port	24
Gigabit SFP port	0
10G SFP+ port	4
QSFP+ stacking port	0
Interface module expansion card slot	0
RJ45 Console port	1
Micro USB Console port	0
USB storage port	0
Management management port	0
Hot-swappable power modules	not support
RPS interface	not support
Stack	Support (6 stacking units)
MAC address capacity	16K
routing	Support RIP V1/V2 dynamic routing; support static routing; support ARP proxy
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60
VLAN	Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function
MAC address table	Comply with IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address table
Safety features	Based on user hierarchical management and password protection Support based on port number, IP address, MAC address to restrict user access Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN four yuan binding Support ARP protection, IP Source protection, DoS protection support DHCP Snooping, DHCP attack protection support 802.1X authentication, AAA support port security, port isolation support CPU protection function
Access Control (ACL)	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port reDirection, flow rate limiting, QoS re-marking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast	Support IGMP v1/v2/v3 Snooping; support MLD v1/v2 Snooping; support fast leave mechanism; support multicast VLAN; support multicast filtering, packet statistics, unknown multicast drop
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support CPU Monitoring, memory monitoring support system logs, graded warning support Ping, Tracert detection, cable detection
Shell size (mm)	440x220x44
Input power	100~240VAC,50/60Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
