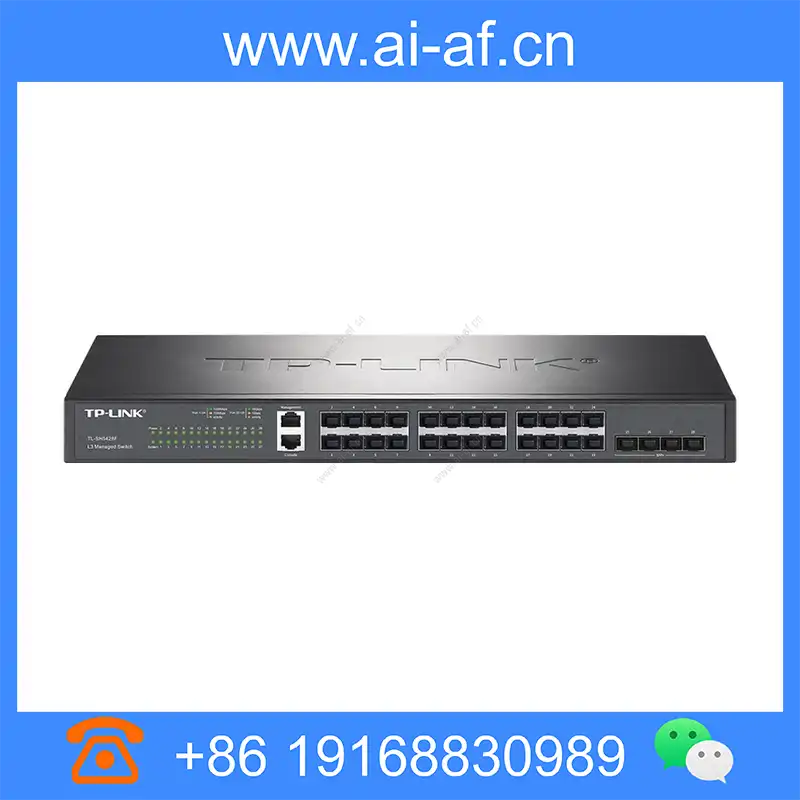

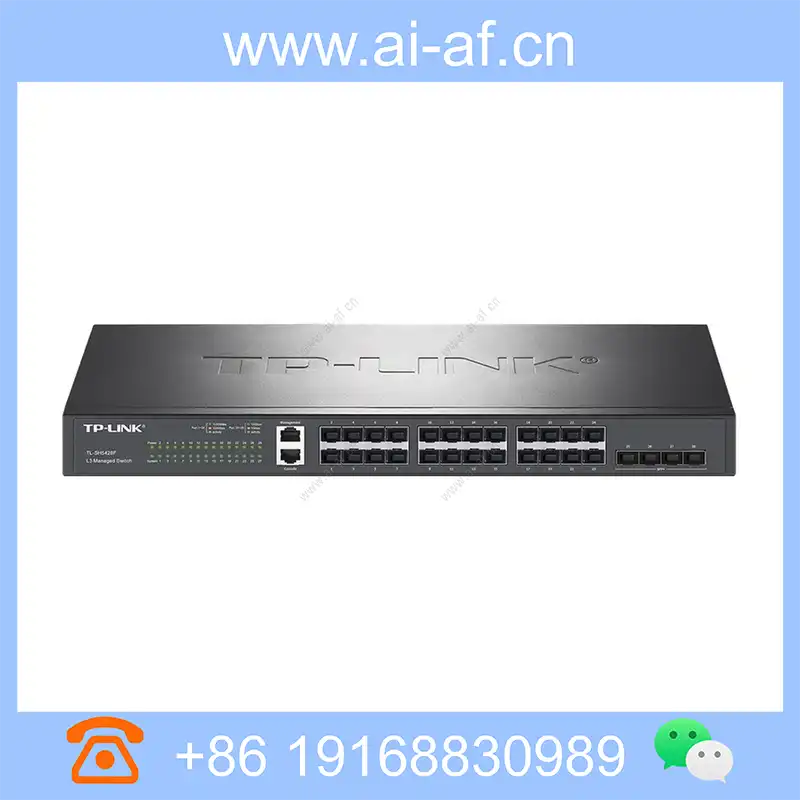

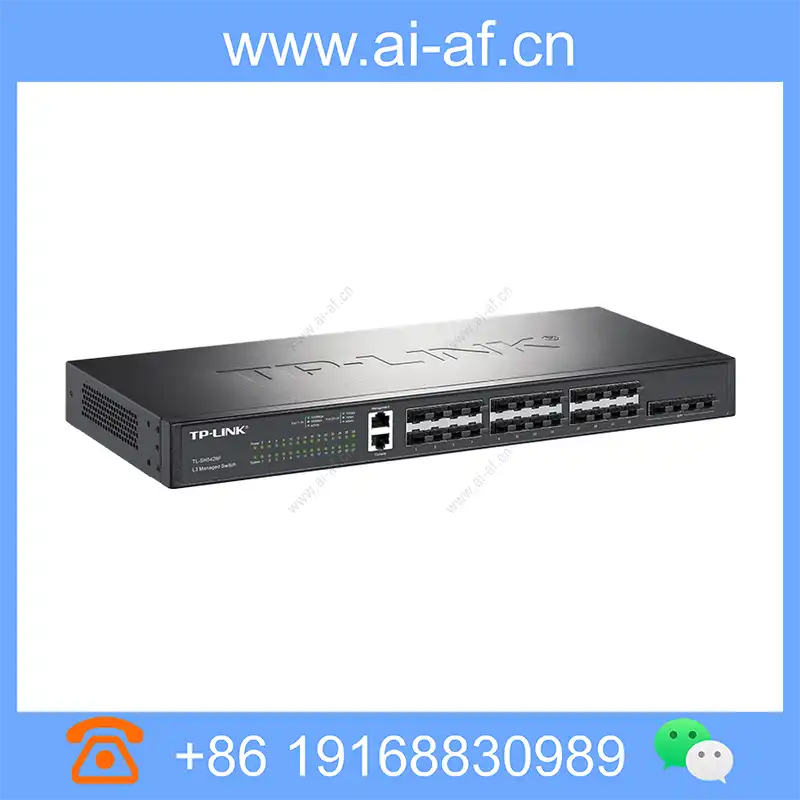

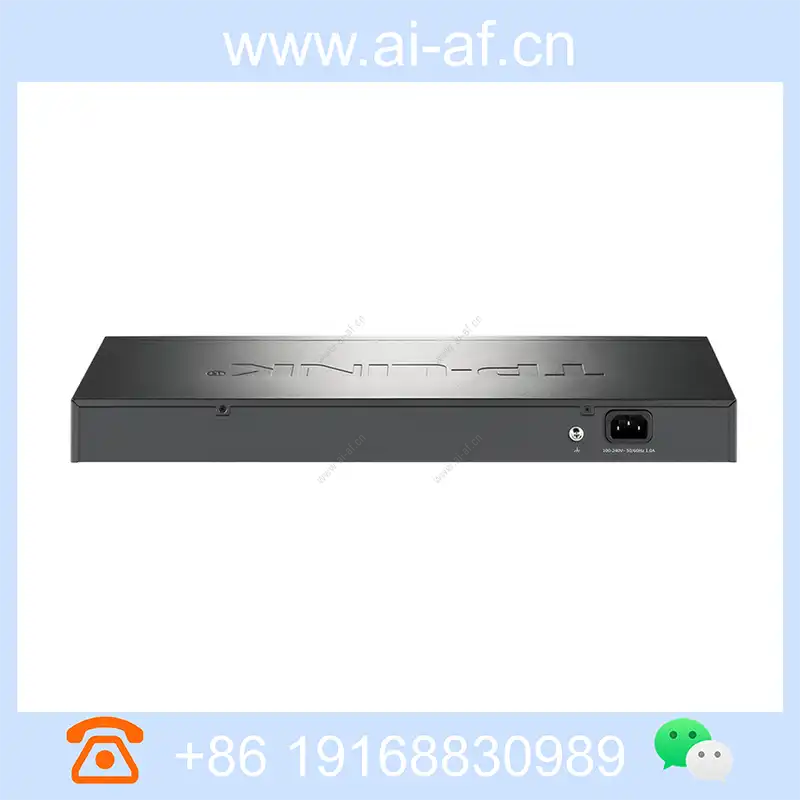

TP-LINK TL-SH5428F 10 Gigably Layer 3 Network Management Switch

Brand: TP-LINK

Model: TL-SH5428F

Dimensions: 440mm x 180mm x 44mm

24 Gigabit SFP ports, 4 10 Gigabits SFP + ports Support Management port, RJ45 Console port Optical port can be used with TP-LINK optical module or electrical port module, easy access to fiber / network cable Support TP-LINK commercial cloud platform remote management, support mobile APP management Support intelligent deployment, automatic configuration of networking, and graphical topology display Support RIP dynamic routing, static routing, ARP proxy, DHCP Server Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Network Standard

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE

Product Features

24 Gigabit SFP ports, 4 10 Gigabits SFP + ports
Support Management port, RJ45 Console port
Optical port can be used with TP-LINK optical module or electrical port module, easy access to fiber / network cable
Support TP-LINK commercial cloud platform remote management, support mobile APP management
Support intelligent deployment, automatic configuration of networking, and graphical topology display
Support RIP dynamic routing, static routing, ARP proxy, DHCP Server
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6

Technical Specifications

Property Description	Property Value
Network Standard	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
port	24 Gigabit SFP fiber optic module expansion slots 4 10 Gigabit SFP+ fiber optic module expansion slots 1 RJ45 Console port, 1 Management Management port
Indicator light	Port status indicator power, system
performance	Storage Forwarded Support 16K MAC address table depth
Input power	100-240V~ 50/60Hz
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
Dimensions (L x W x H)	440mmx180mmx44mm
routing	Support Static Routing Support RIP Dynamic Routing Protocol Support Agent ARP
Safety features	IP-Mac-Port-VID quad-binding IP source protection, DOS protection, port security 802.1x authentication, guest vlan Support Mac-IP-VLAN ID-Port-Port Four-yuan Bind support 802.1x authentication, RADIUS configuration support ARP protection, IP source Protection, DOS protection support port isolation, port security support SSL, SSH
ACL	supports L2 ~ L4 packet filter supports the time period-based ACL control support port, VLAN, POLICY
VLAN	support 802.1q VLAN, Mac VLAN, Private VLAN, protocol VLAN support VLAN VPN support Voice VLAN support GARP / GVRP
MAC address table	support 16K MAC Address Support setting port maximum learning MAC address number address table display, static address table, dynamic address table, filter address table
Port management	port convergence, port monitoring, port speed storm suppression
Spanning tree	STP (802.1d), RSTP (802.1W), MSTP (802.1s) spanning tree security
Multicast	support IGMP V1/V2/V3 multicast VLAN, multicast address table, multicast filter
QoS	Each port supports 8 output queue support port, 802.1p, DSCP / TOS priority support EQU, SP, WRR, SP + WRR Four priority scheduling mode support Voice VLAN
DHCP	DHCP Client、DHCP Server DHCP Relay DHCP Snooping
Convergence Management	support static aggregation support dynamic aggregation
System Management	supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2) SNMP V1/V2/V3 ( TP-LINK MIBS, national standard cluster management support stack
system maintenance	supports LLDP Support Configuration Import Export and System Time Settings Ring Backup Detection, Cable Detection, PING, Tracert Detection Display / Filter System Log, Log Server
