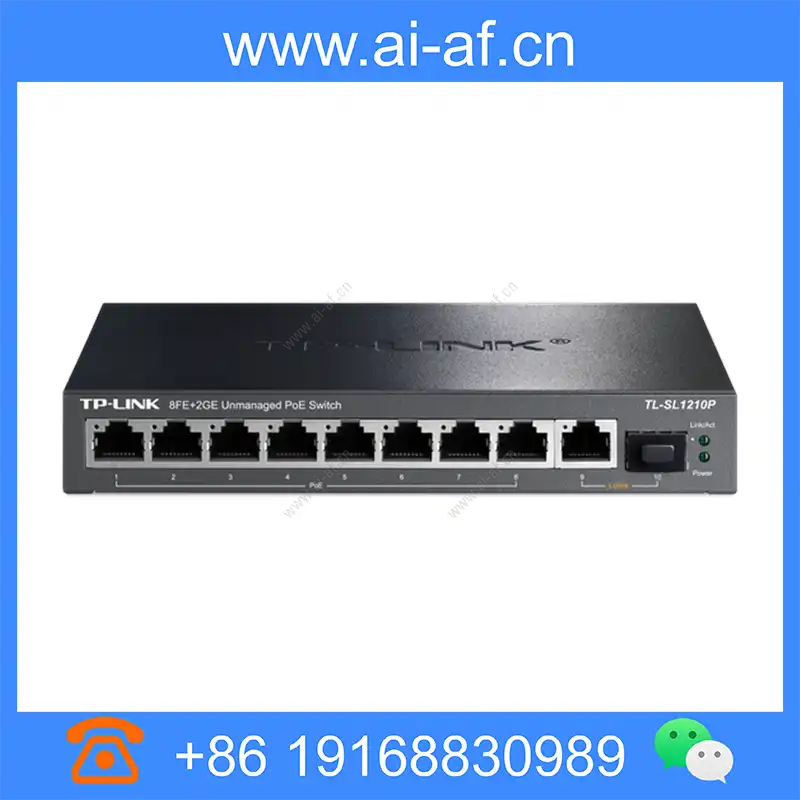

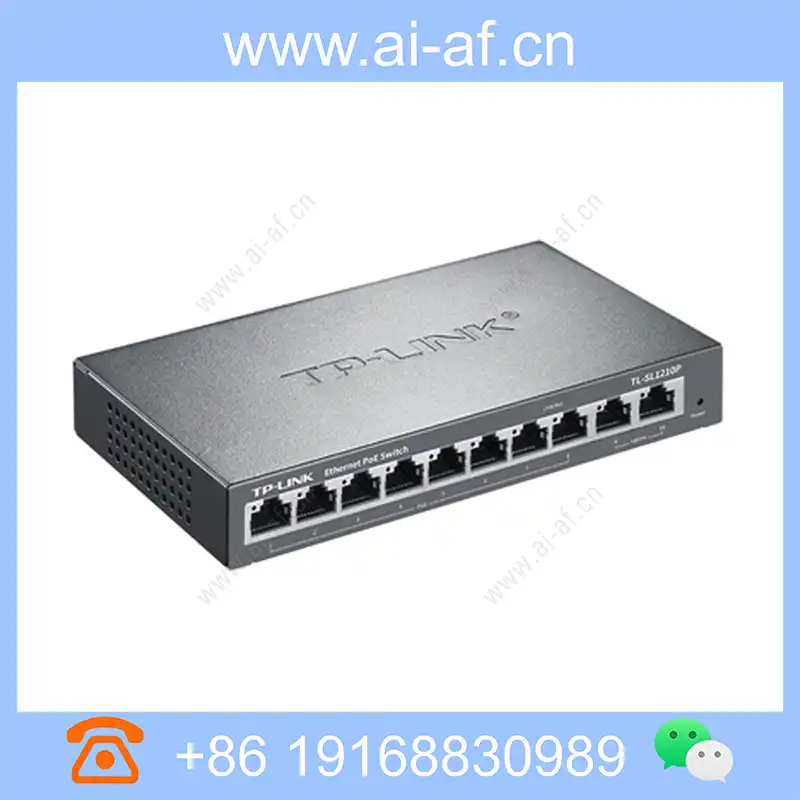

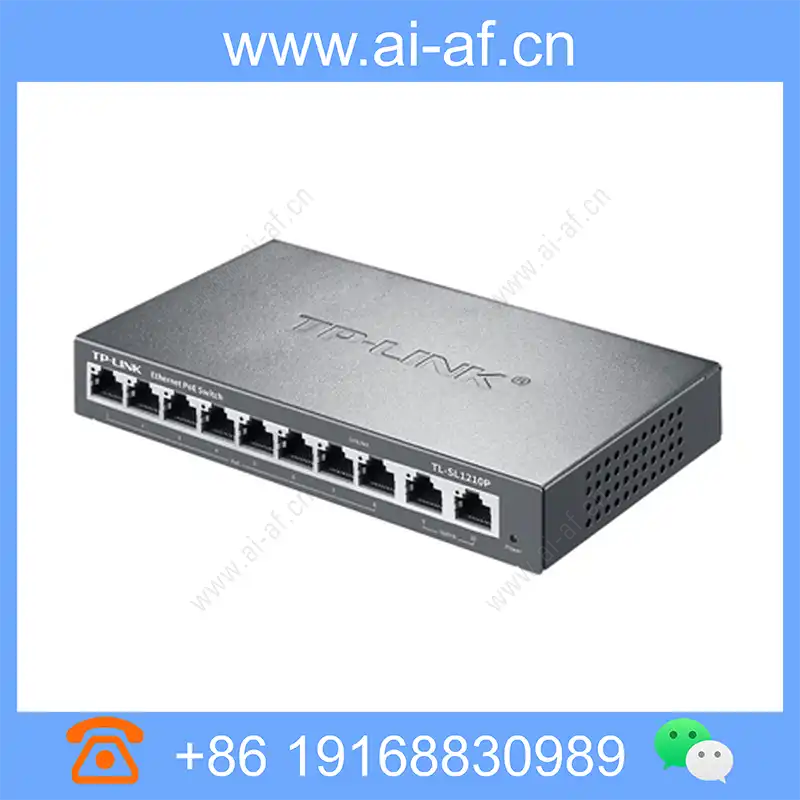

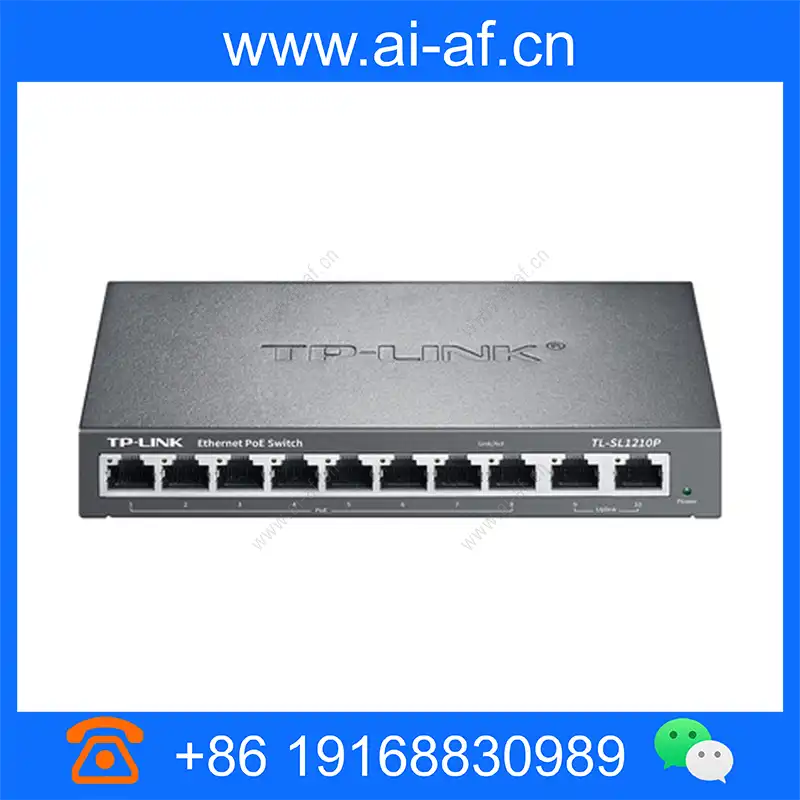

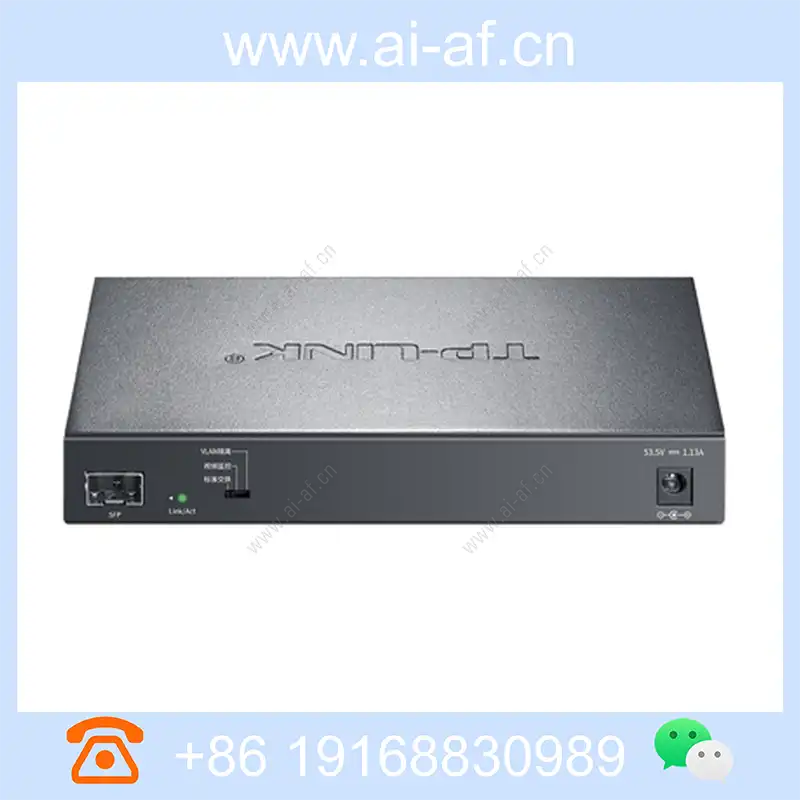

TP-LINK TL-SL1210P 11-port unmanaged PoE switch 2GE 8PoE 56W iron shell layer 2

Brand: TP-LINK

Model: TL-SL1210P

Dimensions: 294mm x 180mm x 44mm

Eight 10/100 Base-T RJ45 ports (supports PoE + power supply) Two 10/100/1000 Base-T RJ45 ports 1 independent Gigabit SFP port The entire PoE power supply reaches 56W, and the single-port PoE power supply reaches 30W PoE power port supports priority mechanism Support standard switching, video surveillance, VLAN isolation three working modes Product model TL-SL1210PE TL-SL1210PT TL-SL1210P 100M RJ45 port 8 8 8 Gigabit RJ45 port 1 2 2 Gigabit SFP port 1 (independent) 1 (independent) 1 (independent) PoE port 8FE PoE output power 124W 124W 56W Machine power consumption 137W 136W 63W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Port PoE maximum output power 30W MAC address capacity 2K Operating mode no Standard switching, video surveillance, VLAN isolation Shell size (mm) 294×180×44 171×98×27

Product Features

Eight 10/100 Base-T RJ45 ports (supports PoE + power supply)
Two 10/100/1000 Base-T RJ45 ports
1 independent Gigabit SFP port
The entire PoE power supply reaches 56W, and the single-port PoE power supply reaches 30W
PoE power port supports priority mechanism
Support standard switching, video surveillance, VLAN isolation three working modes

Product model	TL-SL1210PE	TL-SL1210PT	TL-SL1210P
100M RJ45 port	8	8	8
Gigabit RJ45 port	1	2	2
Gigabit SFP port	1 (independent)	1 (independent)	1 (independent)
PoE port	8FE
PoE output power	124W	124W	56W
Machine power consumption	137W	136W	63W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	2K
Operating mode	no	Standard switching, video surveillance, VLAN isolation
Shell size (mm)	294×180×44	171×98×27
Input power	220VAC , 50Hz	53.5VDC/2.4A	53.5VDC/1.13A
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
	TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
PoE port	8FE
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	2K
no	Standard switching, video surveillance, VLAN isolation
Shell size (mm)	171x98x27
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
