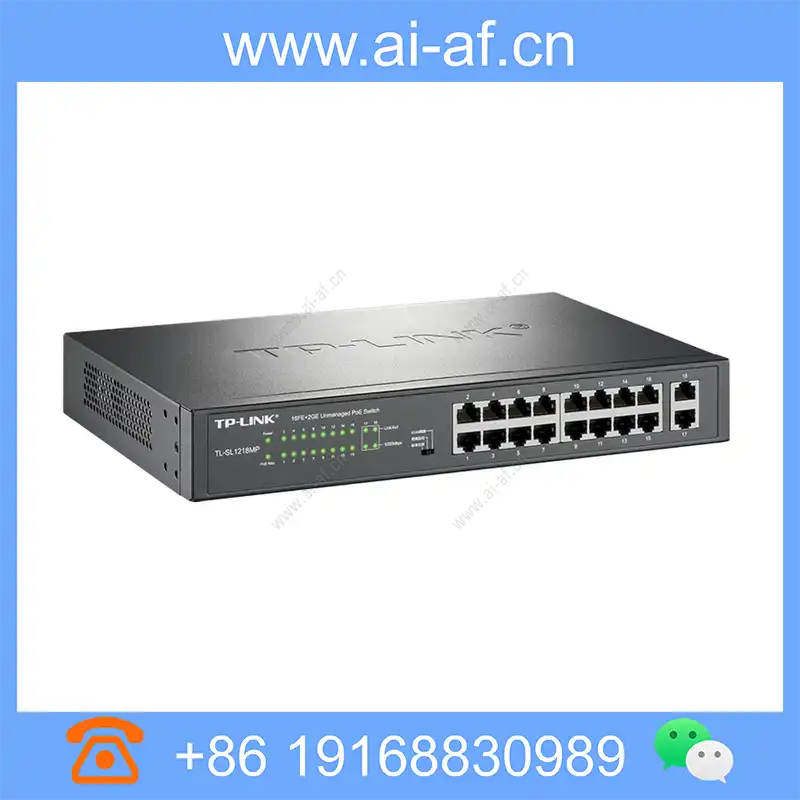

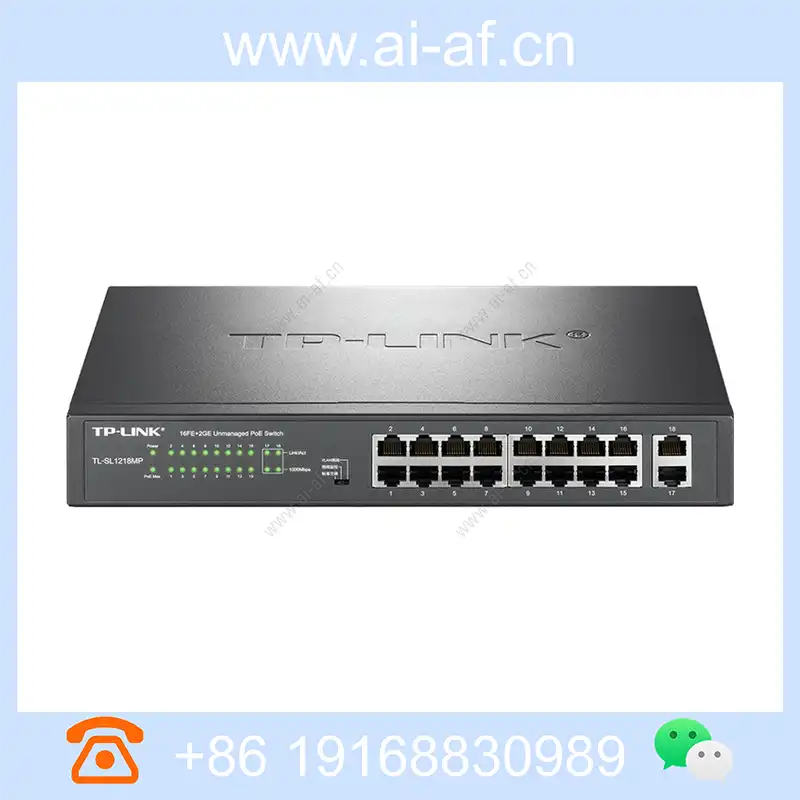

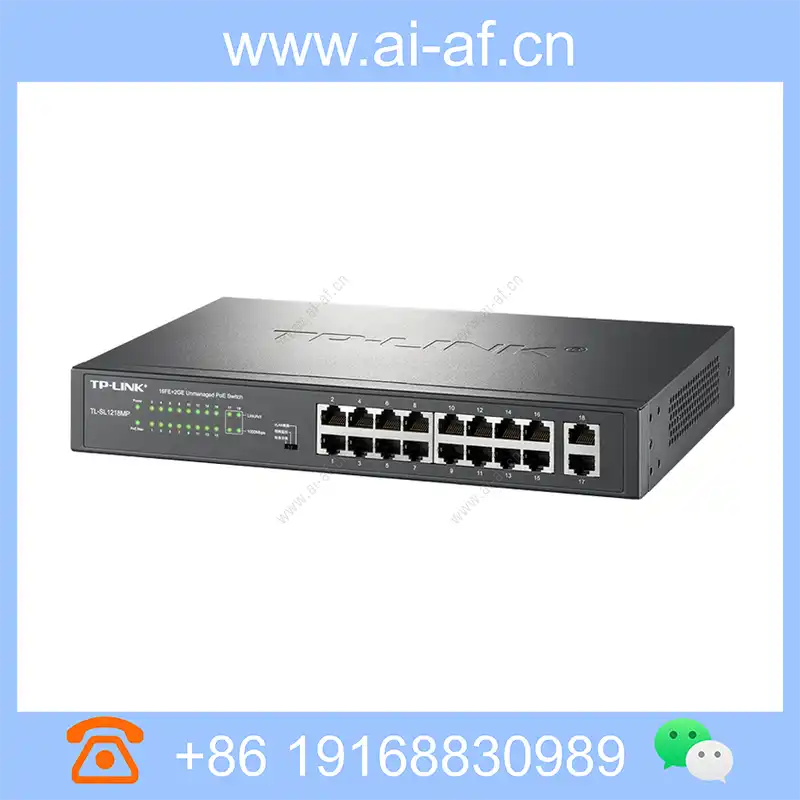

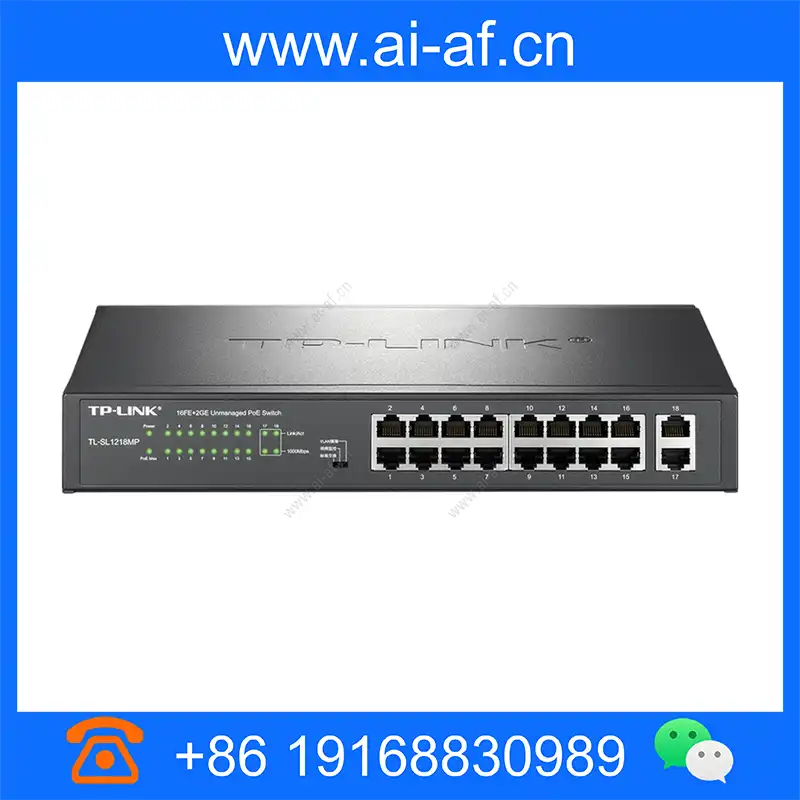

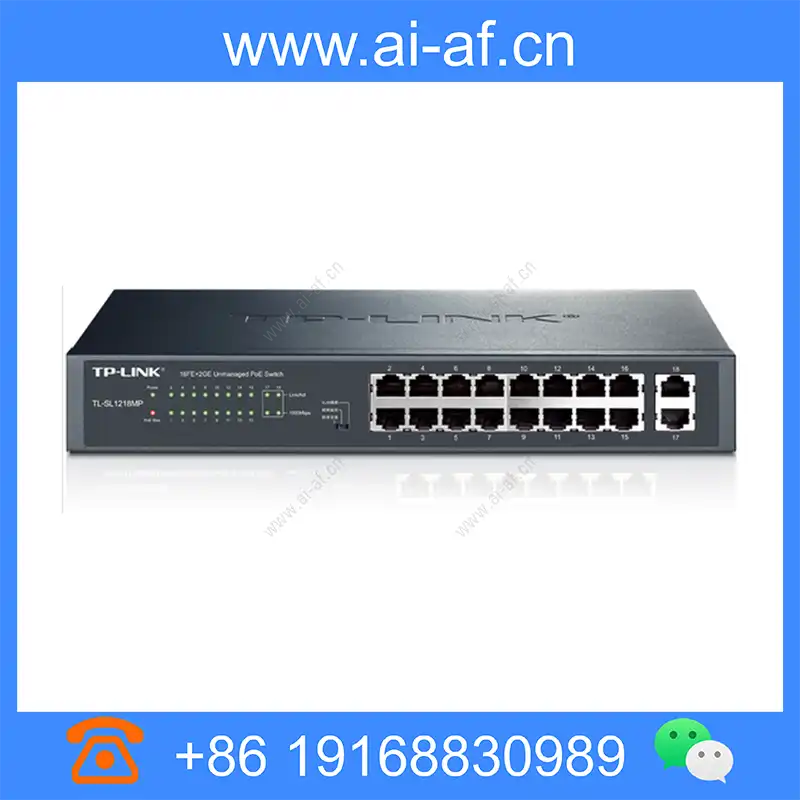

TP-LINK TL-SL1218MP 18-port unmanaged PoE switch 2GE 16PoE 119W Layer 2

Brand: TP-LINK

Model: TL-SL1218MP

Dimensions: 440mm x 180mm x 44mm

16 10/100 Base-T RJ45 ports (supports PoE + power supply) Two 10/100/1000 Base-T RJ45 ports The PoE power supply of the whole machine reaches 119W, and the single-port PoE power supply reaches 30W PoE power port supports priority mechanism Support standard switching, video surveillance, VLAN isolation three working modes Product model TL-SL1218PE-Combo TL-SL1218P TL-SL1218MP TL-SL1210PE 100M RJ45 port 16 16 16 8 Gigabit RJ45 port 2 2 2 1 Gigabit SFP port 2 (multiplexed) 0 0 1 (independent) PoE port 16FE 16FE 16FE 8FE PoE output power 235W 180W 119W 124W Machine power consumption 263W 205W 129W 137W PoE standard IEEE 802.3at(PoE+)、IEEE 802.3af Port PoE maximum output power 30W MAC address capacity 8K Operating mode Standard switching, video surveillance, VLAN isolation no Shell size (mm)

Product Features

16 10/100 Base-T RJ45 ports (supports PoE + power supply)
Two 10/100/1000 Base-T RJ45 ports
The PoE power supply of the whole machine reaches 119W, and the single-port PoE power supply reaches 30W
PoE power port supports priority mechanism
Support standard switching, video surveillance, VLAN isolation three working modes

Product model	TL-SL1218PE-Combo	TL-SL1218P	TL-SL1218MP	TL-SL1210PE
100M RJ45 port	16	16	16	8
Gigabit RJ45 port	2	2	2	1
Gigabit SFP port	2 (multiplexed)	0	0	1 (independent)
PoE port	16FE	16FE	16FE	8FE
PoE output power	235W	180W	119W	124W
Machine power consumption	263W	205W	129W	137W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	8K
Operating mode	Standard switching, video surveillance, VLAN isolation			no
Shell size (mm)	440×180×44	294×180×44
Input power	220VAC , 50Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Technical Specifications

Property Description	Property Value
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
Port PoE maximum output power	30W
MAC address capacity	8K
Standard switching, video surveillance, VLAN isolation	no
Shell size (mm)	294x180x44
Input power	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
