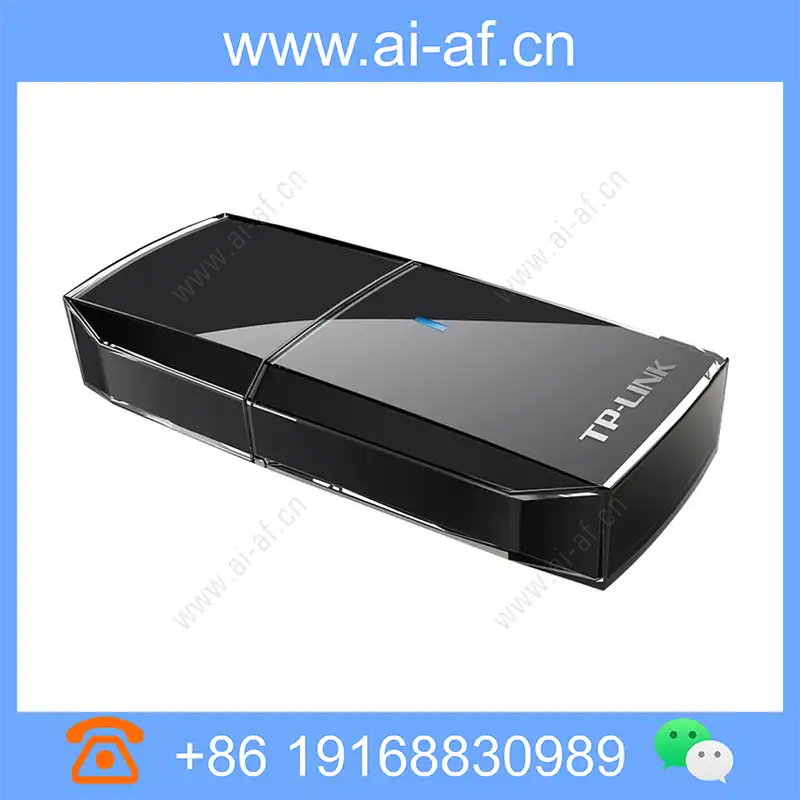

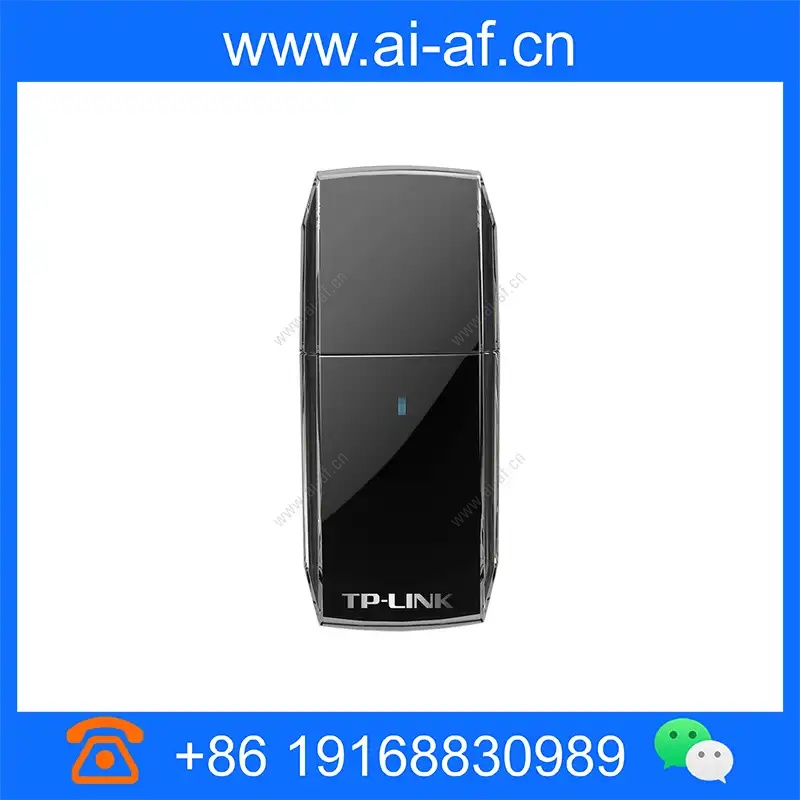

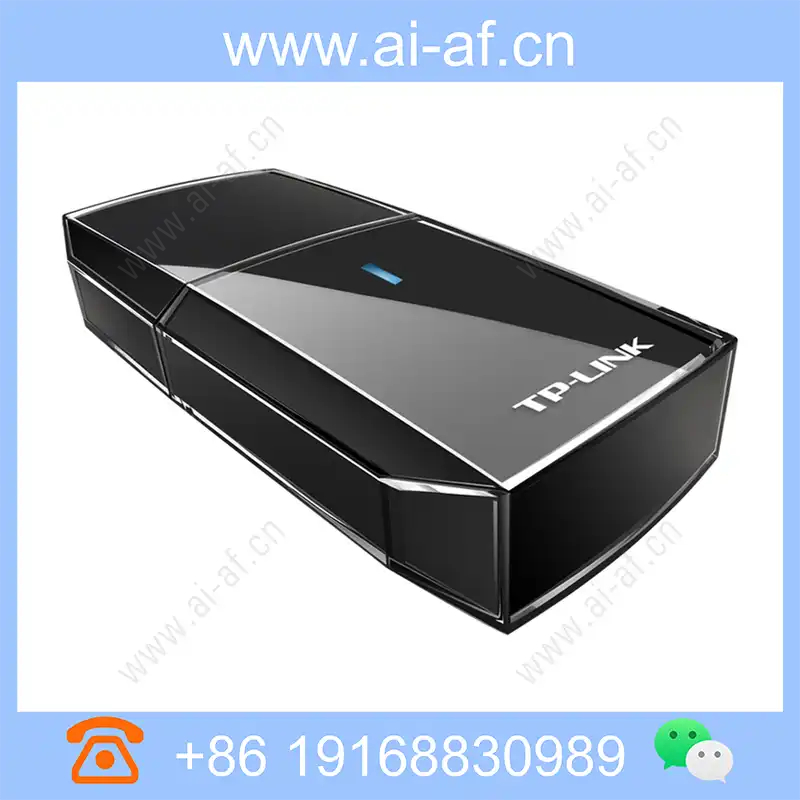

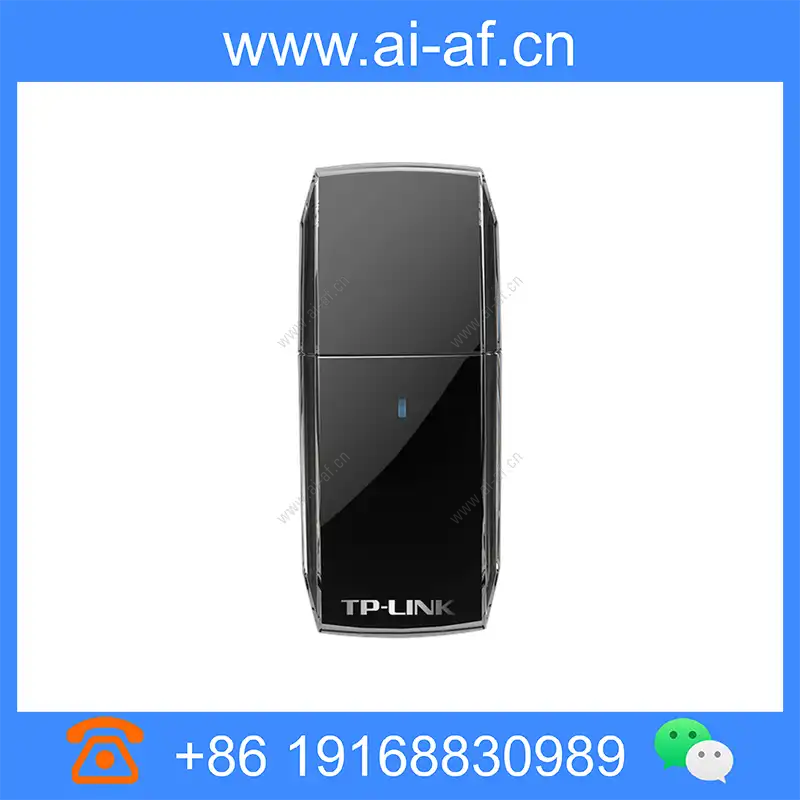

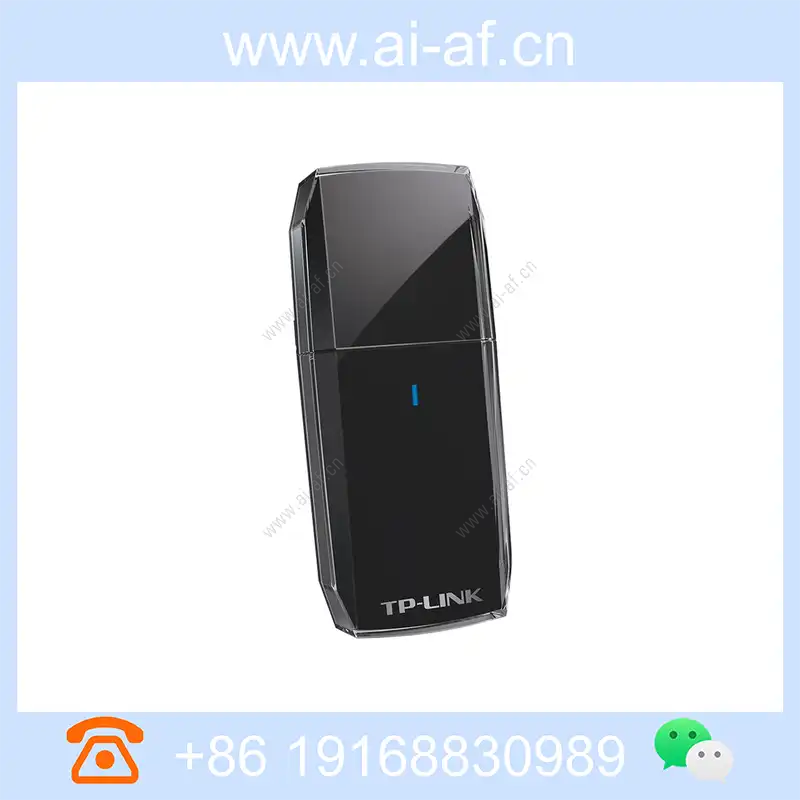

TP-LINK TL-WDN5200 Drive-free Version 11ac Dual Band Wireless USB Network Card
interface USB 2.0 interface antenna Built-in smart antenna Dimensions 44.2mm*19.72mm*10.3mm Use environment Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation Package Contents AC650 dual-band wireless USB network card TL-WDN5200 driver-free version user manual Follow the standard IEEE802.11ac IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n Transmission rate 11b:1/2/5.5/11Mbps 11g:6/9/12/18/24/36/48/54Mbps 11n:200Mbps 11ac:433Mbps Frequency Range 2.4~2.4835GHz 5.150~5.250GHz 5.725~5.850GHz Working channel 1~13,36~48,149~165 Transmit power 20dBm (maximum) Safety features WPA-PSK/WPA2-PSK WPA/WPA2 Other functions Analog AP function Operating system support Windows XP/XP 64 Windows 7/Windows7 64 Windows 8/Windows8 64 Windows 8.1/Windows8.1 64
Technical Specifications
| Property Description | Property Value |
|---|---|
| interface | USB 2.0 interface |
| antenna | Built-in smart antenna |
| Dimensions | 44.2mm*19.72mm*10.3mm |
| Use environment | Working temperature: 0°C~40°C Storage temperature: -40°C~70°C Humidity: 10% ~ 90%RH No condensation |
| Package Contents | AC650 dual-band wireless USB network card TL-WDN5200 driver-free version user manual |
| Follow the standard | IEEE802.11ac IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n |
| Transmission rate | 11b:1/2/5.5/11Mbps 11g:6/9/12/18/24/36/48/54Mbps 11n:200Mbps 11ac:433Mbps |
| Frequency Range | 2.4~2.4835GHz 5.150~5.250GHz 5.725~5.850GHz |
| Working channel | 1~13,36~48,149~165 |
| Transmit power | 20dBm (maximum) |
| Safety features | WPA-PSK/WPA2-PSK WPA/WPA2 |
| Other functions | Analog AP function |
| Operating system support | Windows XP/XP 64 Windows 7/Windows7 64 Windows 8/Windows8 64 Windows 8.1/Windows8.1 64 Windows 10/Windows10 64 Note: For better system compatibility, we recommend that you install the latest system upgrade patch |
