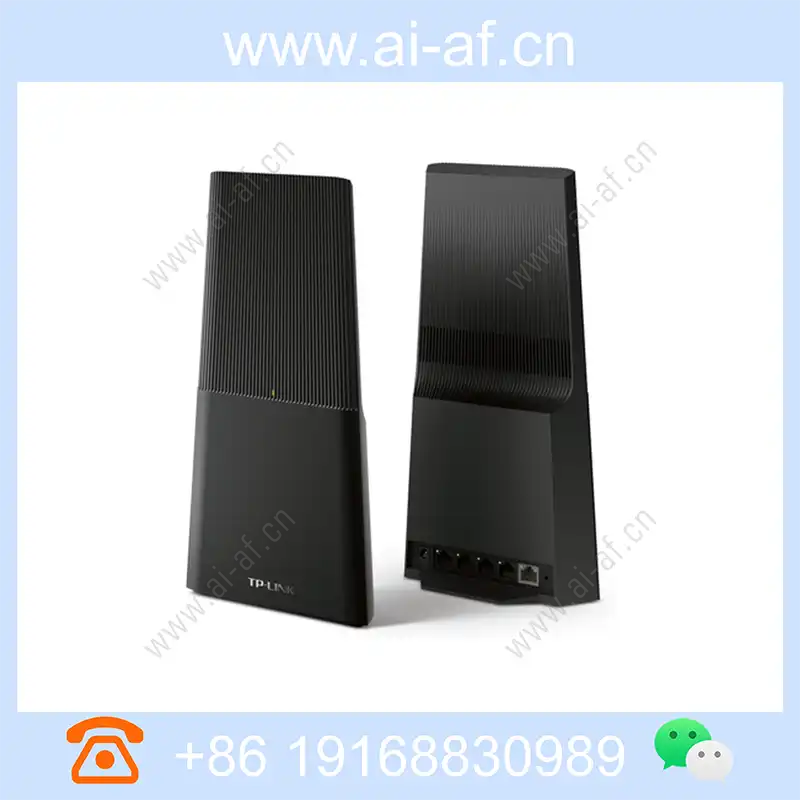

TP-LINK TL-WDR5630 Gigabit Edition AC1200 Dual Band Gigabit Wireless Router
Protocol standard IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u IEEE802.11ab Wireless rate 2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps interface 4 10/100/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) Button Reset button LED System instructions antenna Built-in two dual-band antennas size 267mm*147mm*50mm Equipment management Device information Real-time network speed Speed limit Disable device wireless function Wireless bridging Guest network Signal strength adjustment AP isolation other functions Parental Control Behavior Management Packaging accessories AC1200 Dual-band Gigabit Wireless Router TL-WDR5630 Gigabit Edition Power Adapter User Manual Warranty
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11ac IEEE802.11n IEEE802.11g IEEE802.11b IEEE802.11a IEEE802.3 IEEE802.3u IEEE802.11ab |
| Wireless rate | 2.4GHz frequency band: 300Mbps 5GHz frequency band: 867Mbps |
| interface | 4 10/100/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | System instructions |
| antenna | Built-in two dual-band antennas |
| size | 267mm*147mm*50mm |
| Equipment management | Device information Real-time network speed Speed limit Disable device |
| wireless function | Wireless bridging Guest network Signal strength adjustment AP isolation |
| other functions | Parental Control Behavior Management |
| Packaging accessories | AC1200 Dual-band Gigabit Wireless Router TL-WDR5630 Gigabit Edition Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
