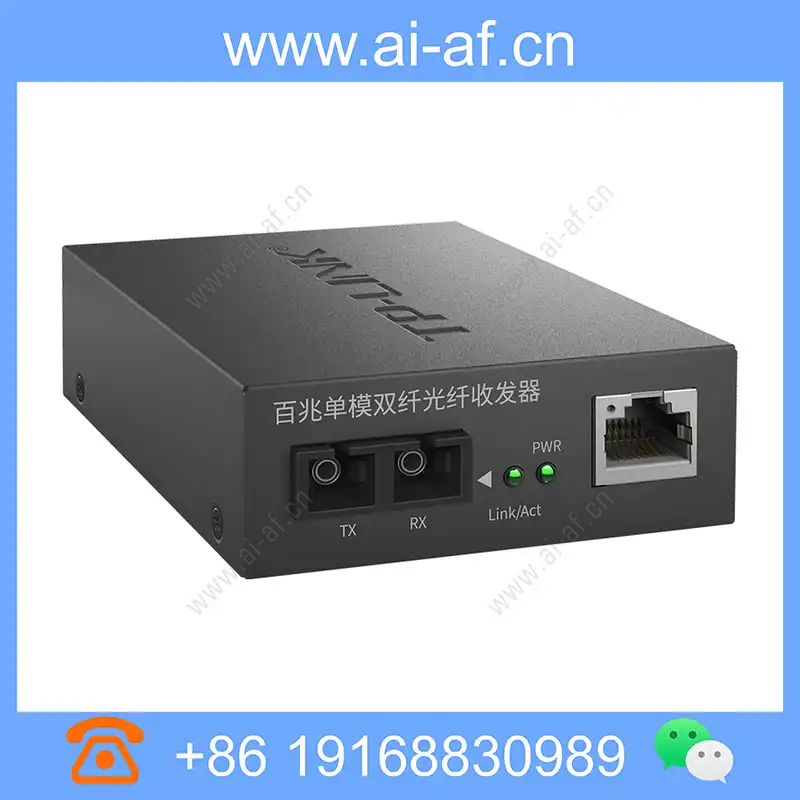

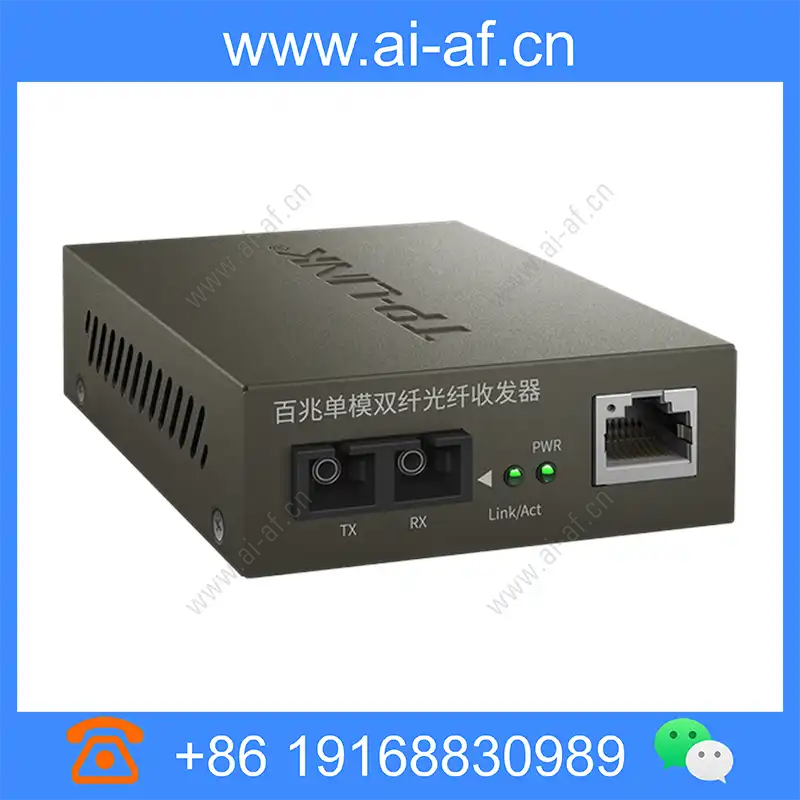

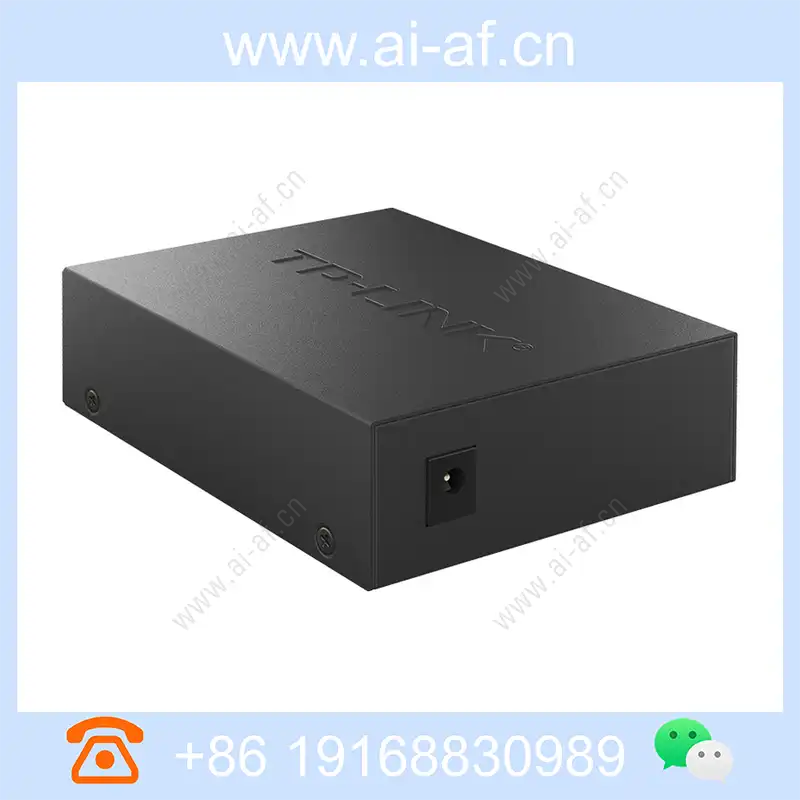

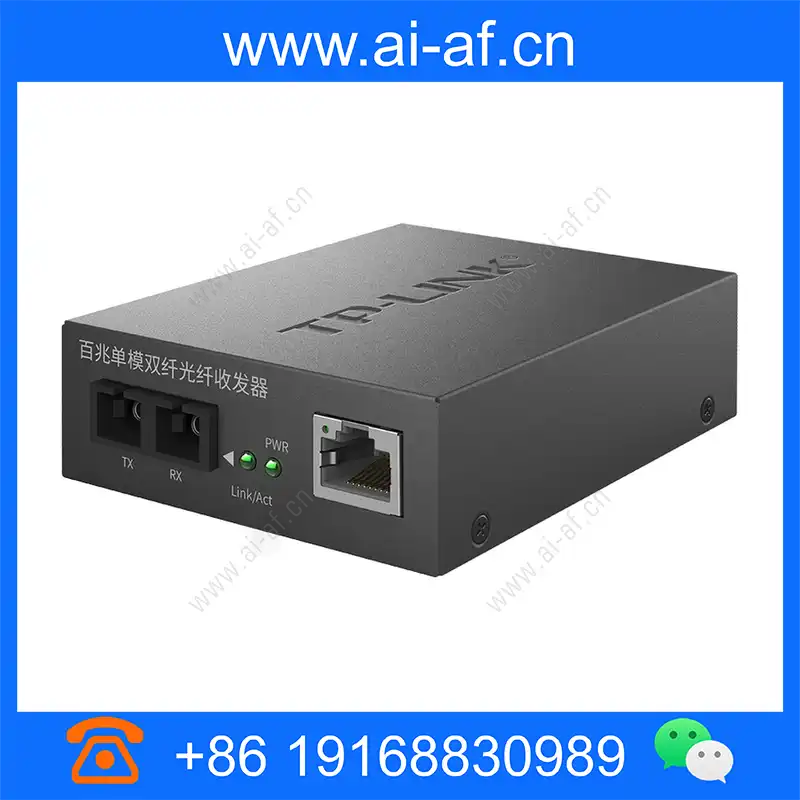

TP-LINK TR-962D fiber optic transceiver 100M single-mode dual-fiber 2SC 1FE 20KM
1 pair of 100M SC optical ports, 1 100M RJ45 network port Single-mode dual-fiber transmission, the longest transmission distance is 20 kilometers Working wavelength: 1310nm technical standard IEEE 802.3、IEEE 802.3i、IEEE 802.3u Interface and rate 1 pair 100Mbps SC optical port 1 10/100Mbps RJ45 network port Working wavelength and transmission distance 1310nm 20km optical fiber transmission Transmission medium Optical fiber: single-mode optical fiber Network cable: Category 5 and above Indicator light Optical port and network port Link / Act, PWR power supply 5VDC/0.4A size 94.5mm*73.0mm*27.0mm Use environment Operating temperature: -20°C~60°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing Light parameter Average
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| technical standard | IEEE 802.3、IEEE 802.3i、IEEE 802.3u |
| Interface and rate | 1 pair 100Mbps SC optical port 1 10/100Mbps RJ45 network port |
| Working wavelength and transmission distance | 1310nm 20km optical fiber transmission |
| Transmission medium | Optical fiber: single-mode optical fiber Network cable: Category 5 and above |
| Indicator light | Optical port and network port Link / Act, PWR |
| power supply | 5VDC/0.4A |
| size | 94.5mm*73.0mm*27.0mm |
| Use environment | Operating temperature: -20°C~60°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -15 ~ -1dBm Receive sensitivity: -32dBm |
