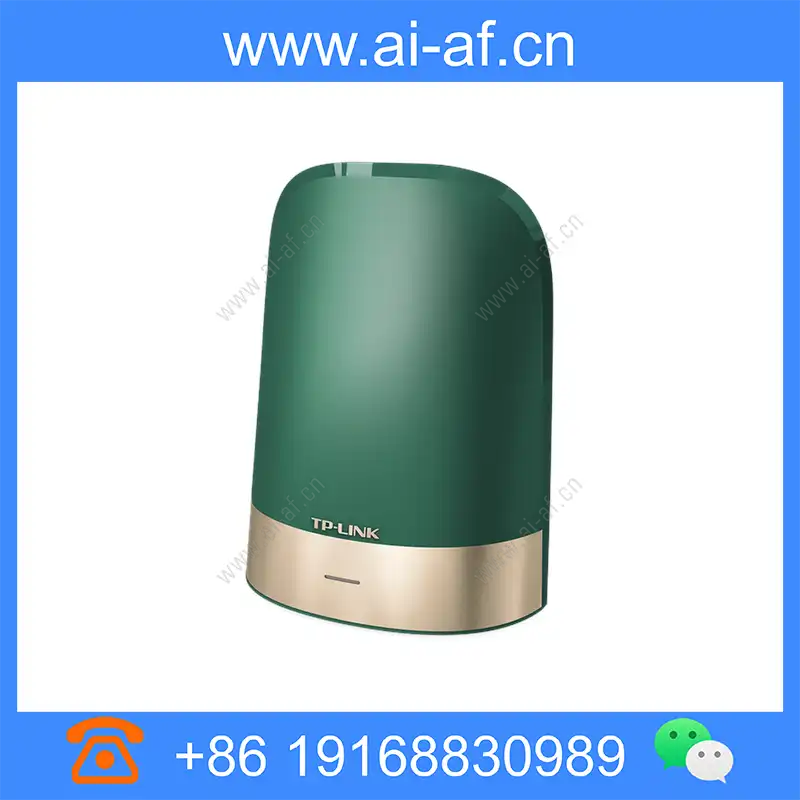

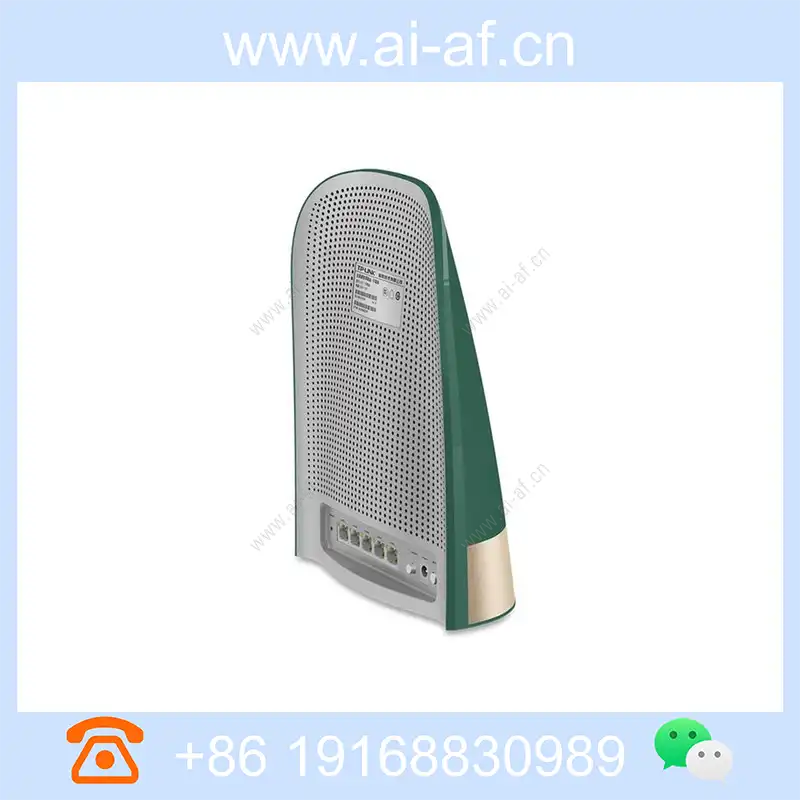

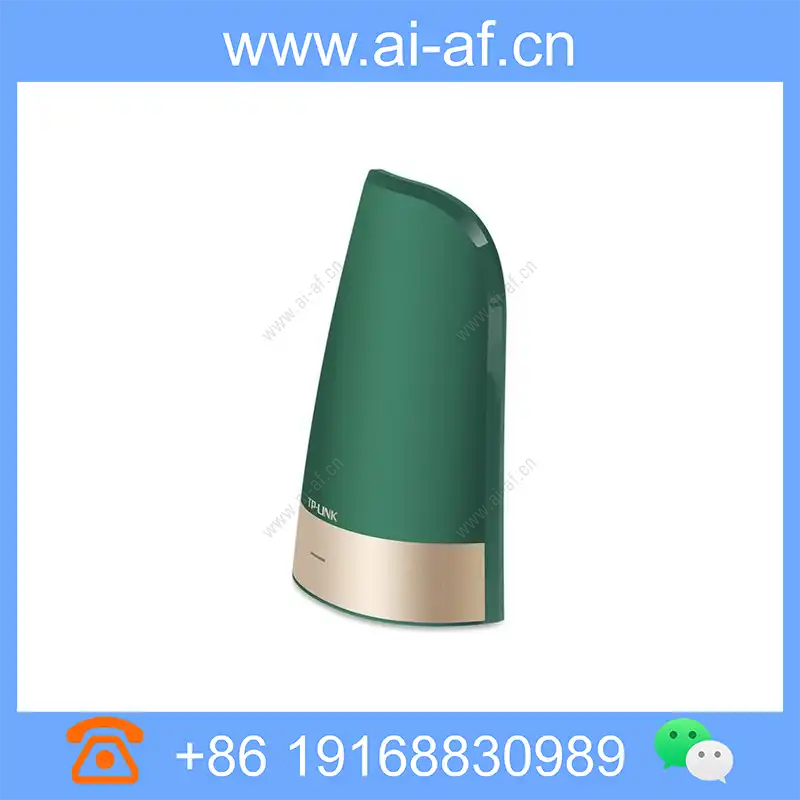

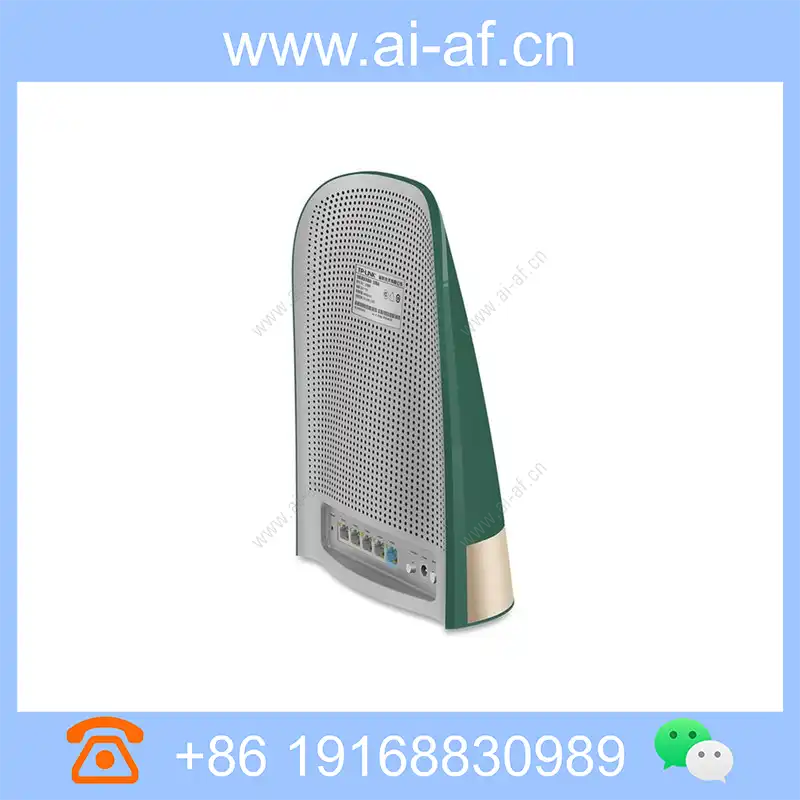

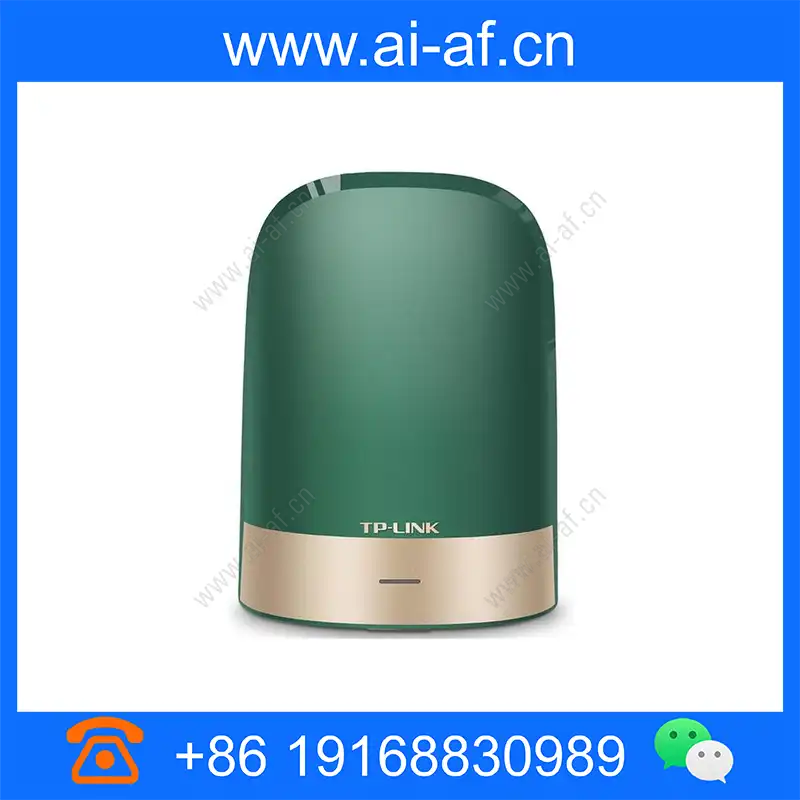

TP-LINK X32 TP-LINK Family Connect Smart ShaRing Router X32 Set
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4G:400Mbps 5G1:867Mbps 5G4:867Mbps interface 5 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI / MDIX) Button Reset button Power button Pair button LED SYS system indication Link/Act indication for each port size 261x198x86MM (length, width, height) wireless setting Sub-routes cannot set wireless parameters, all parameters are synchronized with the main route Packaging accessories Family-wide Zhixiang Routing·Sub-routing——X32·Sub-routing Power Adapter User Manual Use environment Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing Protocol
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4G:400Mbps 5G1:867Mbps 5G4:867Mbps |
| interface | 5 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI / MDIX) |
| Button | Reset button Power button Pair button |
| LED | SYS system indication Link/Act indication for each port |
| size | 261x198x86MM (length, width, height) |
| wireless setting | Sub-routes cannot set wireless parameters, all parameters are synchronized with the main route |
| Packaging accessories | Family-wide Zhixiang Routing·Sub-routing——X32·Sub-routing Power Adapter User Manual |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4G:400Mbps 5G1:867Mbps 5G4:867Mbps |
| interface | 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button Power button Pair button |
| LED | SYS system indication Link/Act indication for each port |
| size | 261x198x86MM (length, width, height) |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS wireless device access control Automatic cleaning |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | Family-wide Zhixiang Routing·Main Routing——X32·Main Routing Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
