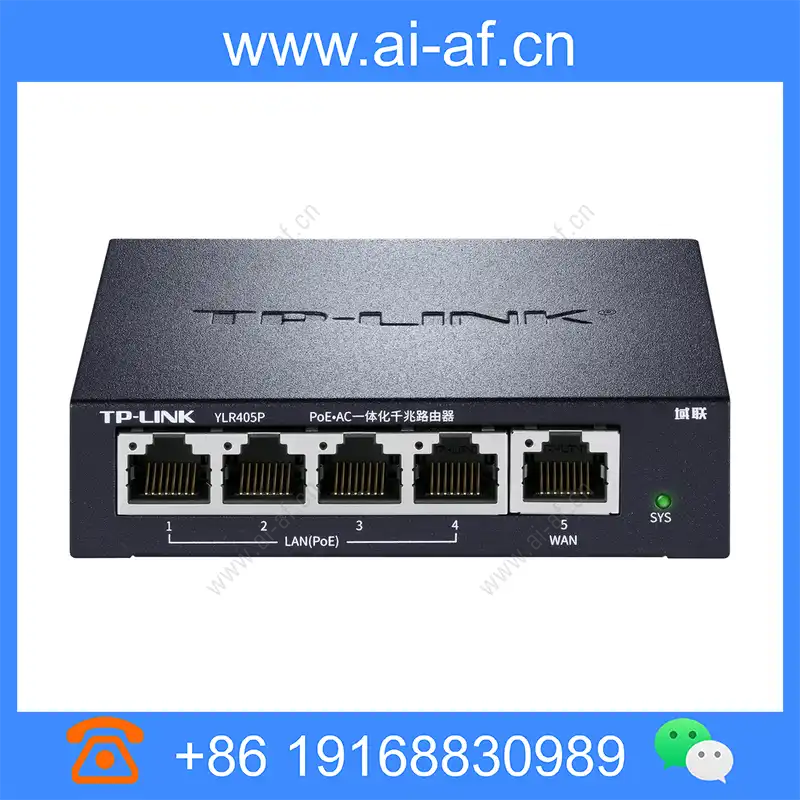

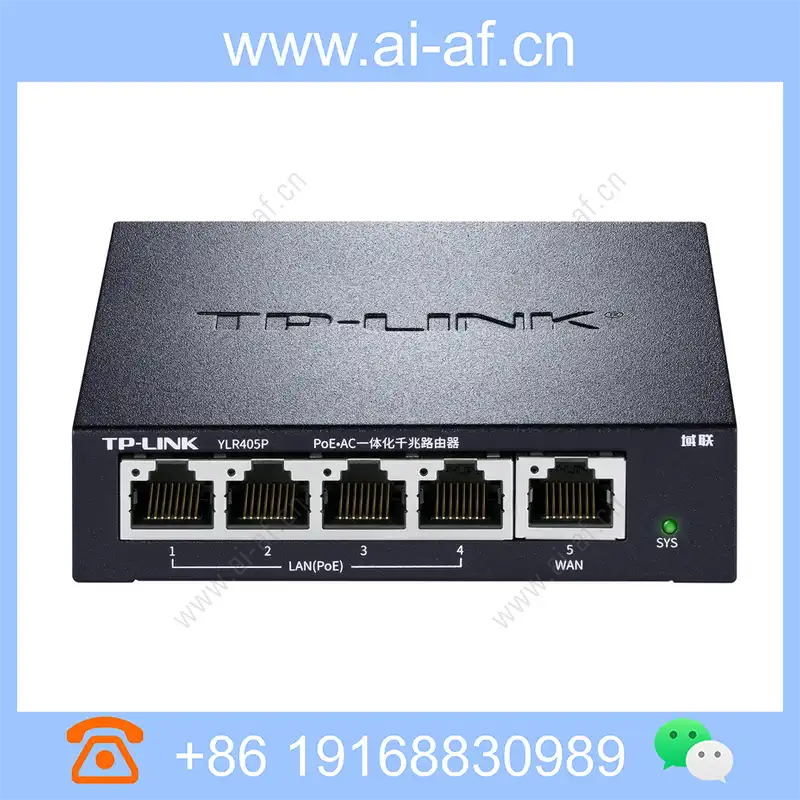

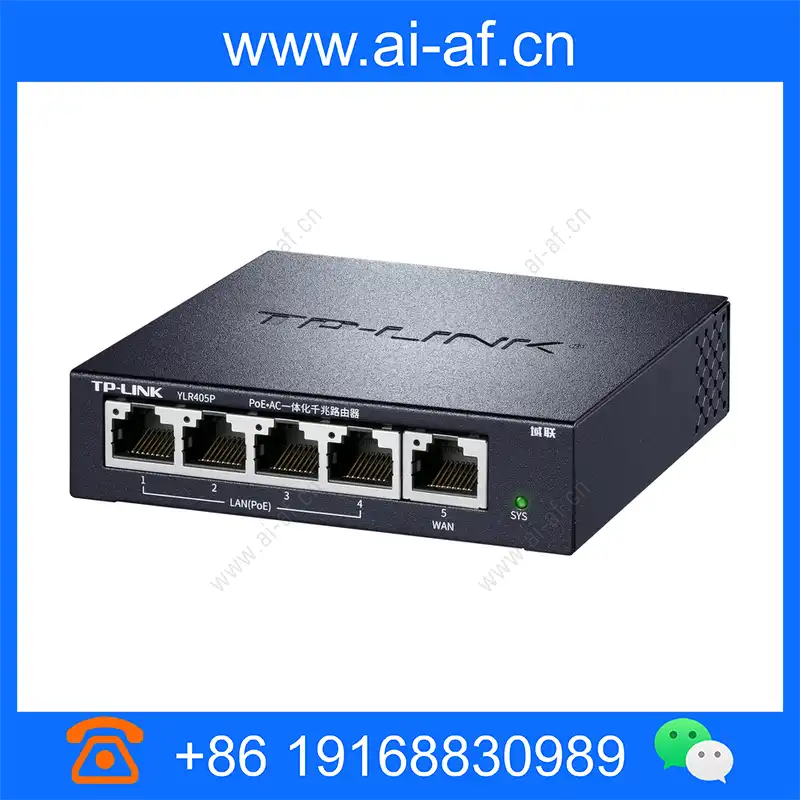

TP-LINK YLR405P Domain Link | PoE·AC Integrated Gigabit Router

Brand: TP-LINK

Model: YLR405P

Dimensions: 100mm x 98mm x 25mm

Provide 1 10/100/1000M WAN port, 4 10/100/1000M LAN ports The size is 100mm*98mm*25mm, which can be easily put into the weak current box/information box The LAN ports support standard PoE power supply, comply with IEEE802.3af/at standard, and the maximum output power of a single port is 30W Built-in AC function, can manage 20 TP-LINK APs in a unified way Protocol standard

IEEE802.3
IEEE802.3u
IEEE802.3ab

port

1 10/100/1000M adaptive WAN port, support automatic flip (Auto MDI / MDIX)
4 10/100/100 / 1000M adaptive LAN port, support automatic flip ( Auto MDI / MDIX)

Indicator light

Each port: LINK / ACT
Each device: SYS

PoE performance

in line with IEEE 802.3af, IEEE 802.3AT standard

Product Features

Provide 1 10/100/1000M WAN port, 4 10/100/1000M LAN ports
The size is 100mm*98mm*25mm, which can be easily put into the weak current box/information box
The LAN ports support standard PoE power supply, comply with IEEE802.3af/at standard, and the maximum output power of a single port is 30W
Built-in AC function, can manage 20 TP-LINK APs in a unified way

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE802.3 IEEE802.3u IEEE802.3ab
port	1 10/100/1000M adaptive WAN port, support automatic flip (Auto MDI / MDIX) 4 10/100/100 / 1000M adaptive LAN port, support automatic flip ( Auto MDI / MDIX)
Indicator light	Each port: LINK / ACT Each device: SYS
PoE performance	in line with IEEE 802.3af, IEEE 802.3AT standard single port maximum output 30W machine maximum output 57W

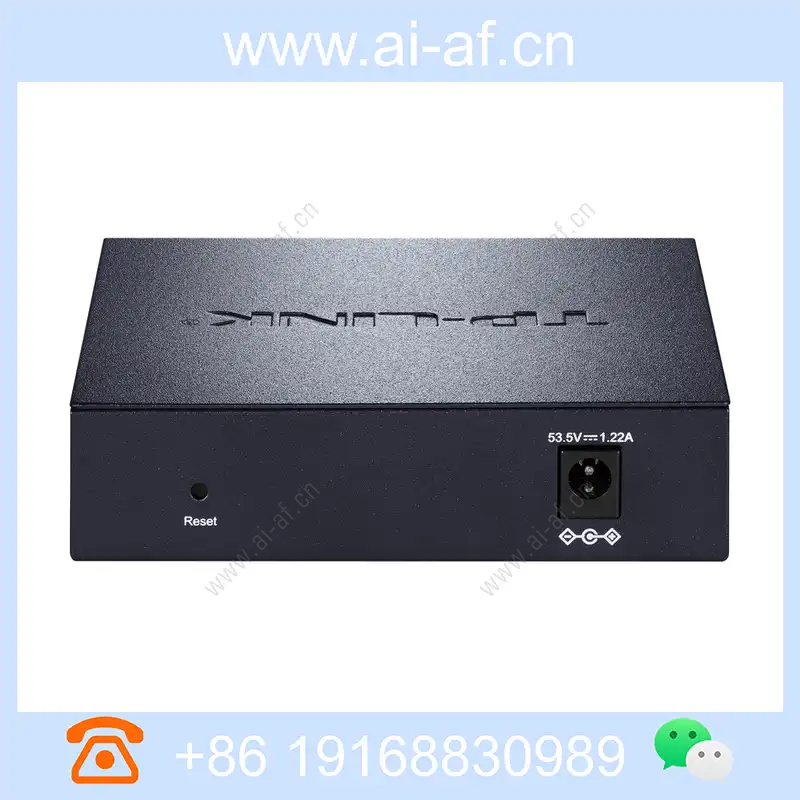

Power Specifications	power adapter, input 220V AC, 50Hz, output 53.5VDC / 1.22A
Cooling method	Natural heat dissipation
Dimensions	100mmX98mmX25mm
Typical belt load	100 sets
Common settings	Connection device management Internet settings wireless settings (AP)
advanced settings	Network Parameters Wireless Settings (AP), can manage up to 20 TP-LINK AP Internet control Advanced users device management setup wizard
Packaging accessories	PoE · AC integrated Gigabit router TL-R470GP-AC power adapter manual
Use environment	operating temperature: 0°C to 40°C Storage temperature: -40°C 70°C Working humidity: 10% to 90% RH does not condense Storage humidity: 5% to 90% RH does not condense
