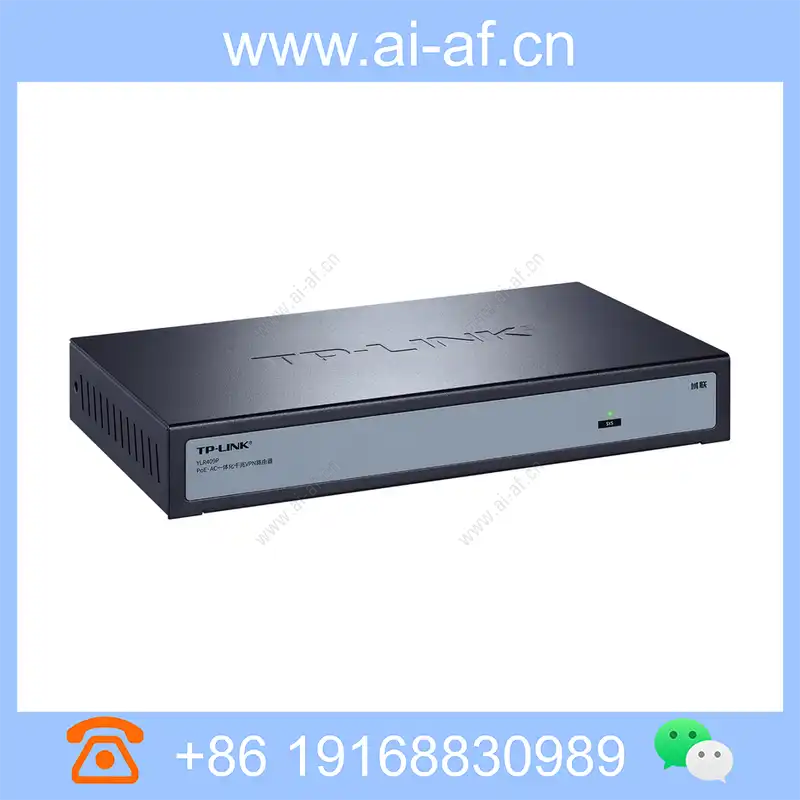

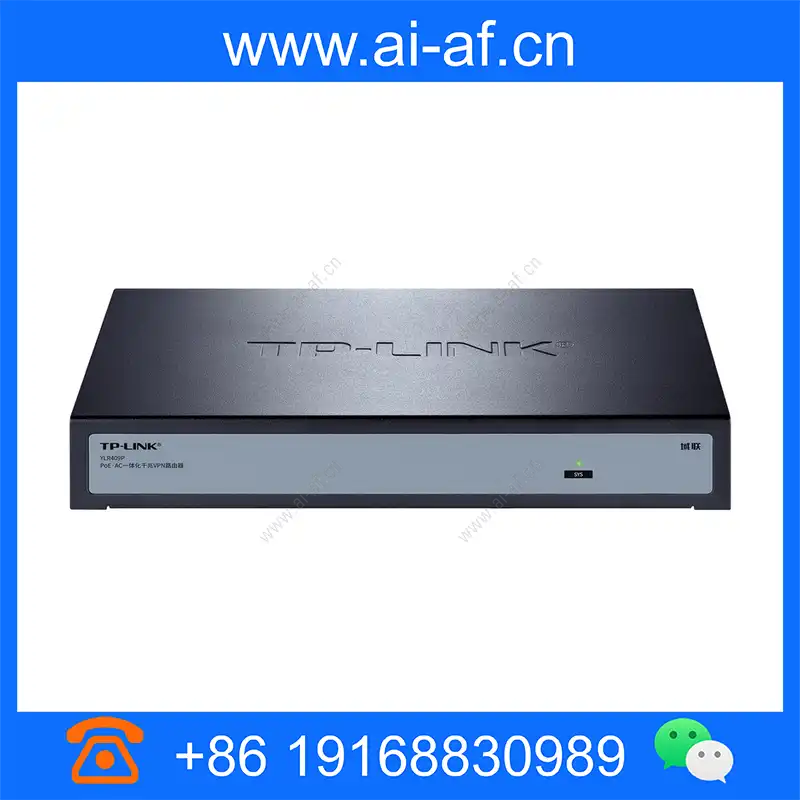

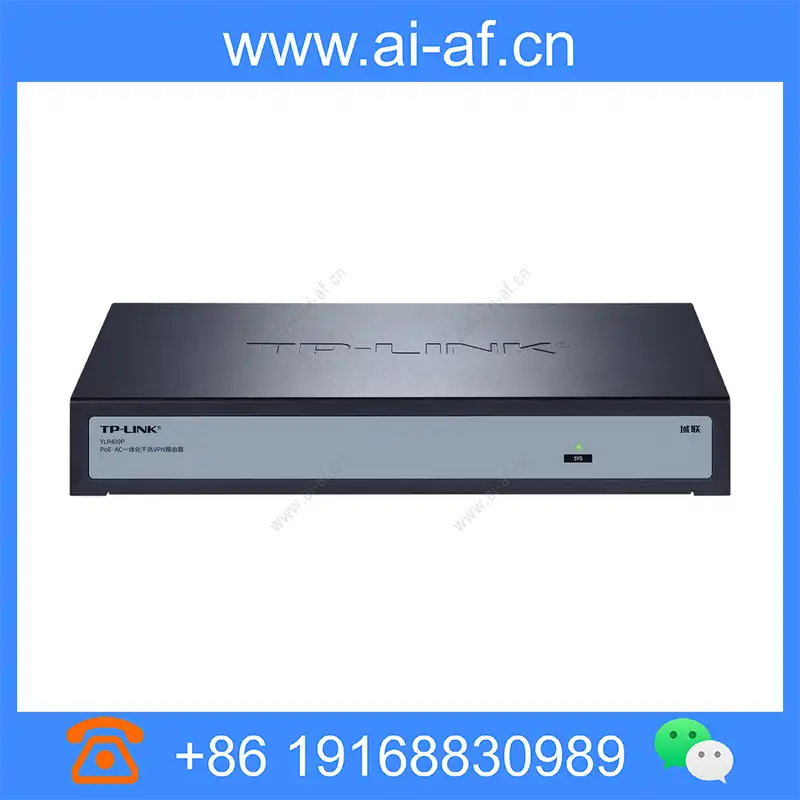

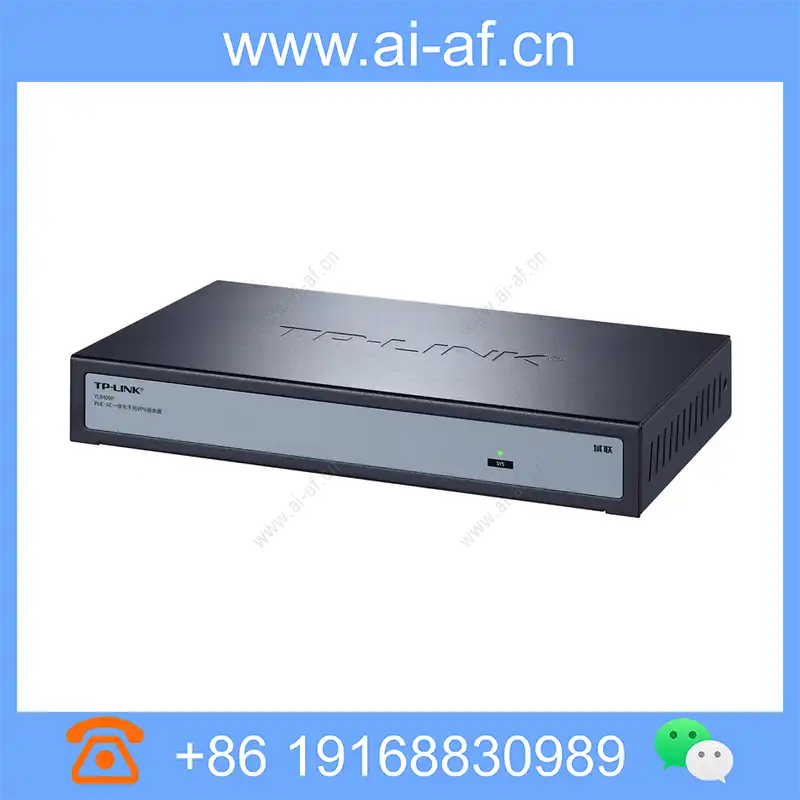

TP-LINK YLR409P Domain Link | PoE·AC Integrated Gigabit VPN Router

Brand: TP-LINK

Model: YLR409P

Dimensions: 131mm x 226mm x 35mm

9 Gigabit Ethernet ports, 1WAN+8LAN Built-in wireless controller for unified management of TP-LINK AP products All LAN ports support standard PoE power supply, no need to purchase additional PoE switches IPSec/PPTP/L2TP VPN, remote communication is more secure Access authentication (Web authentication, SMS authentication, PPPoE server) Internet behavior management (mobile APP control/desktop application control/website filtering/webpage security) port

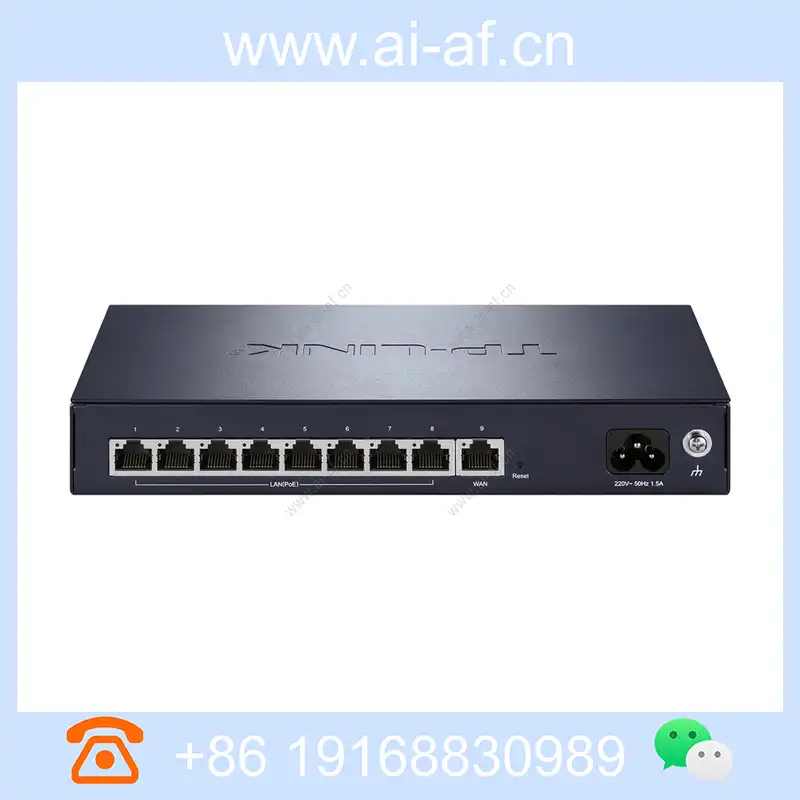

1 10/100/1000M RJ45 WAN port
8 10/100/1000M RJ45 LAN port (Support PoE external power supply)

Indicator light

Each port: LINK / ACT
Each device: SYS

PoE performance

Compliant with IEEE 802.3af, IEEE 802.3at standards
Maximum output of single port

Product Features

9 Gigabit Ethernet ports, 1WAN+8LAN
Built-in wireless controller for unified management of TP-LINK AP products
All LAN ports support standard PoE power supply, no need to purchase additional PoE switches
IPSec/PPTP/L2TP VPN, remote communication is more secure
Access authentication (Web authentication, SMS authentication, PPPoE server)
Internet behavior management (mobile APP control/desktop application control/website filtering/webpage security)

Technical Specifications

Property Description	Property Value
port	1 10/100/1000M RJ45 WAN port 8 10/100/1000M RJ45 LAN port (Support PoE external power supply)
Indicator light	Each port: LINK / ACT Each device: SYS
PoE performance	Compliant with IEEE 802.3af, IEEE 802.3at standards Maximum output of single port 30W Maximum output of whole machine 75W
Input power	220V AC,50Hz
Cooling method	Natural heat dissipation
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Typical belt load	100 sets
Dimensions	226(w)x131(D)x35(H) mm
Network protocol	TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS
Operating status	Interface Information Traffic Statistics Hardware Resource Utilization
Interface settings	wan setting LAN setting
AP management	AP settings, can manage 20 TP-LINK AP products Plug and Play, Wi-Fi Setting Wireless Host Status List < / ul>
Behavior control	Application Control, One-Code Management Social Software / Video Software / Music Software / Shopping Leisure Software / News Software / P2P Software / Financial Software / Network Game / App Store / Fundamental Applications / li> qq black and white list Website packet filtering filter page file type Intelligent biDirectional bandwidth control access control List (ACL) behavioral audit
Safety management	ARP protection (IP + MAC Binding, GARP) MAC address filtering attack protection (DOS attack protection, suspicious package attack protection)
VPN	IPSec VPN PPTP/L2TP VPN, support server and client mode
Certification Management	web authentication, local authentication, RADIUS certification, one-click Internet access, meet a variety of certification requirements SMS authentication, meet real-name authentication requirements, and can conduct secondary marketing based on mobile phone number < / li> Free certification policy
Advanced Features	PPPoE authentication server routing setting (policy routing, static routing, system routing) NAT setting (NAPT, one-to-one NAT, ALG, virtual server, NAT DMZ DDNS (Peanut Shell, Komai, 3322) UPnp IP traffic statistics port monitoring
System Tools	Chinese Web Support, Remote Management Configuration Backup and Import Configuration Software Upgrade, Automatic Clearing Diagnostic Tool (Ping Detection, Tracert Detection) system time setting system log
