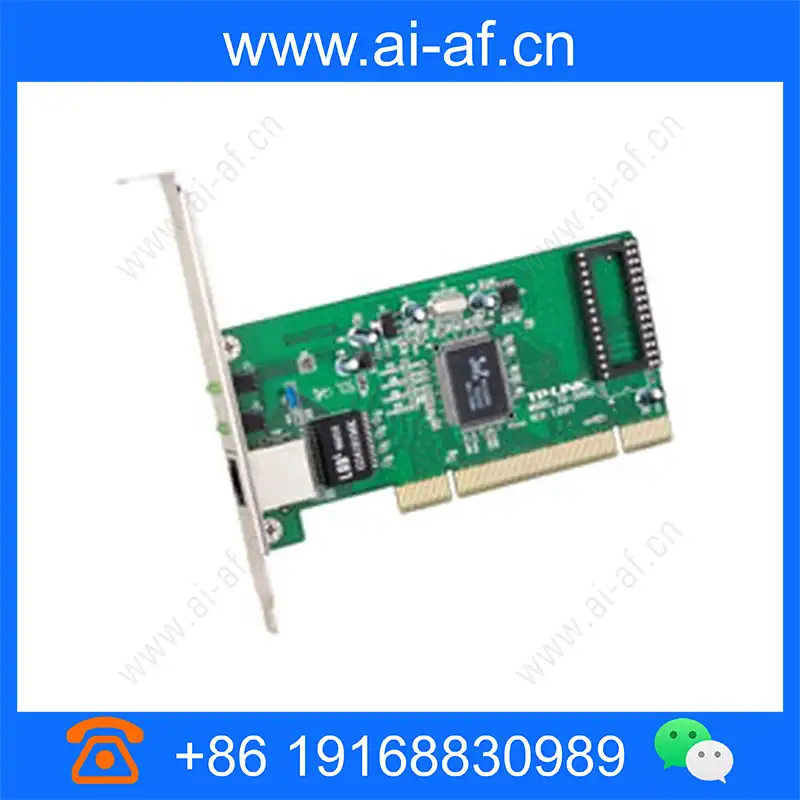

TP-LINK TG-3269C 10/100/1000M adaptive PCI Network Card
Support 32-bit, 33MHz PCI data bus 10/100/1000M adaptive, full-duplex, semi-duplex automatic detection With BootROM slot, support diskless boot Single RJ45 port, support port automatic flip (Auto MD / MDIX) Provide abundant drivers Support VLAN tag Ethernet frame and Gigabit super long frame Indicator light indicates network connection and working status Support diskless boot TG-3269C contains BootROM slots, supports diskless start, can be applied to diskless networking. Gigabit rate TG-3269C supports 10/100/1000M rate, full-duplex half-duplex adaptive, support Gigabit long frame transmission, can provide 2000m two-way data transfer rate, is ideal for enabling Gigabit networks to desktop, enhance network performance select. Good compatibility TG-3269C is compatible with common operating
Product Features
Support diskless bootTG-3269C contains BootROM slots, supports diskless start, can be applied to diskless networking. Gigabit rateTG-3269C supports 10/100/1000M rate, full-duplex half-duplex adaptive, support Gigabit long frame transmission, can provide 2000m two-way data transfer rate, is ideal for enabling Gigabit networks to desktop, enhance network performance select. Good compatibilityTG-3269C is compatible with common operating systems, such as: Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 and Linux, and provides corresponding drivers. Easy to useThe TG-3269C is easy to use, just insert it to the corresponding PCI slot, install the appropriate driver to use. Port supports automatic flipping, which can be directly connected to other network devices, making it easy to connect into the target network. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.1P, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T compatible with PCI 2.1/2.2/2.3 bus standards |
| interface | 1 10/100/1000M adaptive RJ45 port (supports auto flip) |
| LED | 10M Link/Active/Speed indicator; 100M Link/Active/Speed indicator; 1000M Link/Active/Speed indicator; full-duplex indicator FDX |
| Physical medium | 10Base-T: Category 3 or above Shielded/unShielded twisted pair; 100Base-TX: Category 5 Shielded/unShielded twisted pair 1000Base-T: Category 5 Shielded/unShielded twisted pair (Super Category 5 is recommended line) |
| size | 119.7mm x58.9mm x1.6mm(L x W x H) |
| Packaging accessories | 32-bit 10/100/1000M adaptive Ethernet network card: TG-3269C user manual; CD |
| Use environment | Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C; Operating humidity: 10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing |
