TP-LINK TL-ANT2412MS30-4N 2.4GHz 12dBi Quad N-type Head 30° Directional Antenna

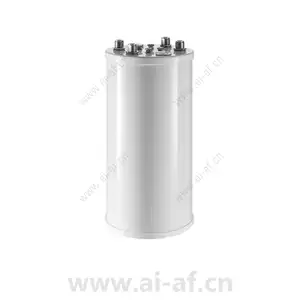

2.4GHz band antenna, used with TP-LINK outdoor wireless AP products, can be used for outdoor multi-scenario wireless signal coverage 12dBi gain, horizontal coverage angle up to 30° 4×4 MIMO design, horizontal and vertical dual polarization Outdoor use, providing mounting brackets, 4 N-type connectors plug and play, easy maintenance *The picture on the left is the outline diagram, the actual number of joints is subject to the product description and the actual product 2.4GHz Directional antenna TL-ANT2412MS30-4N adopts 4×4 MIMO technology, horizontal and vertical dual polarization design, gain up to 12dBi. It can be used with TP-LINK 2.4GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 30°. TL-ANT2412MS30-4N has 4
Product Features
2.4GHz Directional antenna TL-ANT2412MS30-4N adopts 4×4 MIMO technology, horizontal and vertical dual polarization design, gain up to 12dBi. It can be used with TP-LINK 2.4GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 30°. TL-ANT2412MS30-4N has 4 N-type connectors (4 2.4G) and provides a mounting base for fixed antenna installation. It is ready to use and easy to maintain. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 2.4-2.5GHz |
| Gain | 12dBi |
| Standing wave ratio | ≤2 |
| Horizontal lobe width | 30° |
| Vertical lobe width | 60° |
| MIMO number | 4x4 |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | N-F |
| Product Size | 268x268x25mm |
| range of working temperature | -40°C~65°C |
| Protection class | IP64 |
| Installation method | Pole mounting |
