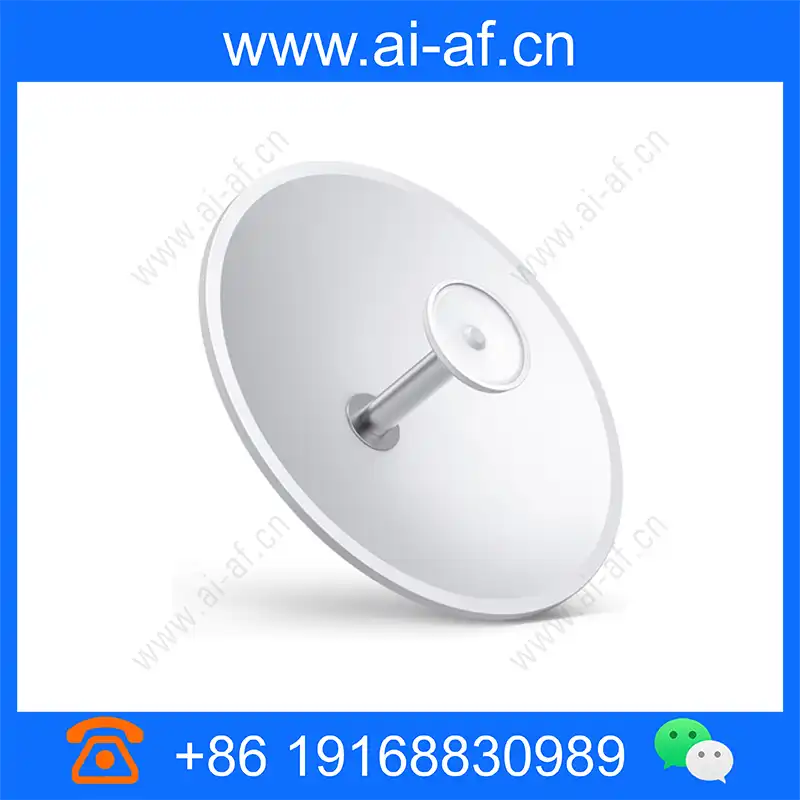

TP-LINK TL-ANT2424MD dish base station antenna indoor and outdoor 15KM 2.4GHz 24dBi 6°
2.4GHz band antenna, used with TP-LINK 2.4GHz 300M outdoor wireless base station products, can be used for outdoor long-distance point-to-point wireless transmission 24dBi gain, 6° horizontal coverage angle 2×2 MIMO design, horizontal and vertical dual polarization Outdoor use, providing base station mounting brackets, base station products are plug and play, no tools required The 2.4GHz dish antenna TL-ANT2424MD uses 2×2 MIMO technology, horizontal and vertical dual-polarization design, gain up to 24dBi, horizontal coverage angle is 6°. It can be used with TP-LINK 2.4GHz 300M outdoor wireless base station products to meet the needs of outdoor long-distance (30KM) point-to-point wireless transmission applications. TL-ANT2424MD provides a mounting base for wireless base station
Product Features
The 2.4GHz dish antenna TL-ANT2424MD uses 2×2 MIMO technology, horizontal and vertical dual-polarization design, gain up to 24dBi, horizontal coverage angle is 6°. It can be used with TP-LINK 2.4GHz 300M outdoor wireless base station products to meet the needs of outdoor long-distance (30KM) point-to-point wireless transmission applications. TL-ANT2424MD provides a mounting base for wireless base station installation, plug and play, easy to install, without tools. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 2.3-2.7GHz |
| Gain | 24dBi |
| Standing wave ratio | Less than 1.8 |
| Horizontal lobe width | 6° |
| Vertical lobe width | 6° |
| Front-to-back ratio | More than 32dB |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | RP-SMA |
| Product Size | 600mm diameter |
| product weight | 6.0kg |
| Wind resistance | 241km/h |
| range of working temperature | -40°C~60°C |
| Installation method | Pole mounting |
