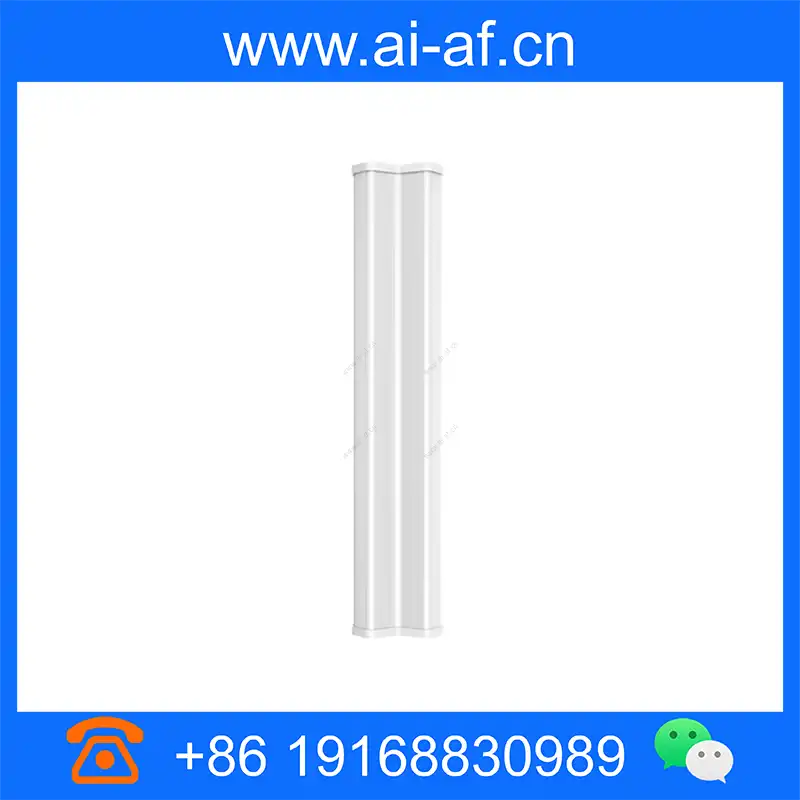

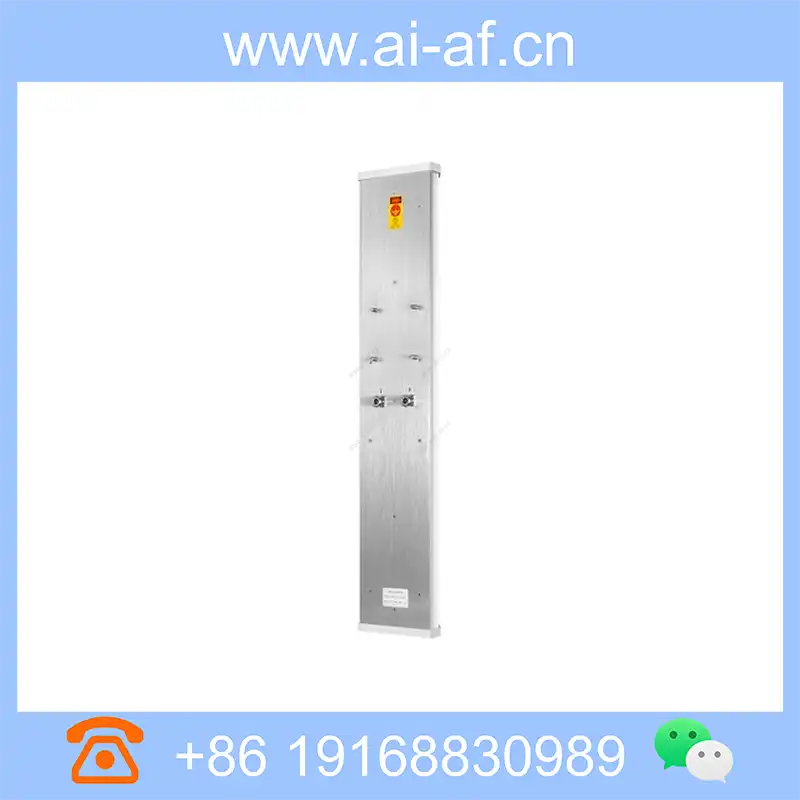

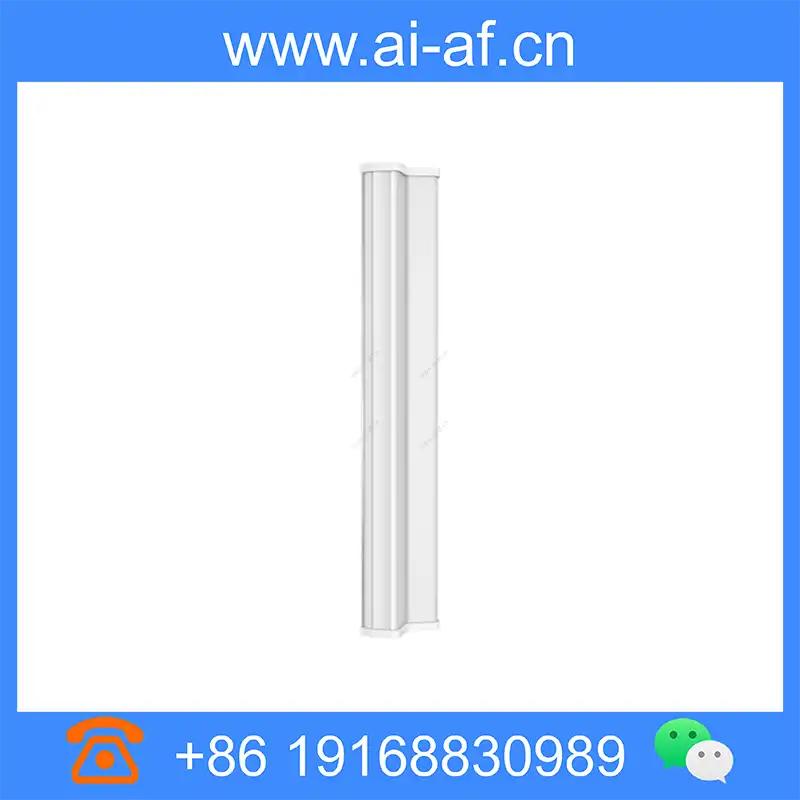

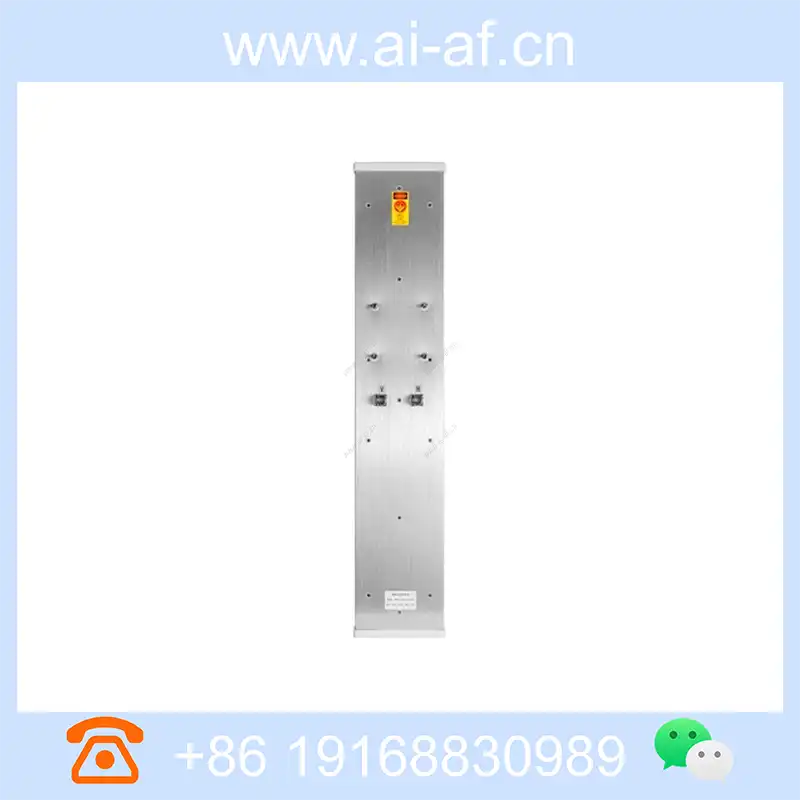

TP-LINK TL-ANT2415MS90-2N 2.4GHz 15dBi Dual N-type Head 90° Direction Antenna
2.4GHz band antenna, used with TP-LINK outdoor wireless AP products, can be used for outdoor multi-scenario wireless signal coverage 15dBi gain, horizontal coverage angle up to 90° 2×2 MIMO design, horizontal and vertical dual polarization Outdoor use, providing mounting brackets, 2 N-type connectors plug and play, easy maintenance 2.4GHz Directional antenna TL-ANT2415MS90-2N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, gain up to 15dBi. It can be used in conjunction with TP-LINK 2.4GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 90°. TL-ANT2415MS90-2N has 2 N-type connectors (2 2.4G) and provides a mounting base for fixed antenna installation. It is ready to use and easy to
Product Features
2.4GHz Directional antenna TL-ANT2415MS90-2N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, gain up to 15dBi. It can be used in conjunction with TP-LINK 2.4GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 90°. TL-ANT2415MS90-2N has 2 N-type connectors (2 2.4G) and provides a mounting base for fixed antenna installation. It is ready to use and easy to maintain. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 2.3-2.6GHz |
| Gain | 15dBi |
| Standing wave ratio | ≤2 |
| Horizontal lobe width | 90° |
| Vertical lobe width | 8° |
| MIMO number | 2x2 |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | N-F |
| Product Size | 700x140x57mm |
| range of working temperature | -40°C~65°C |
| Protection class | IP64 |
| Installation method | Pole mounting |
