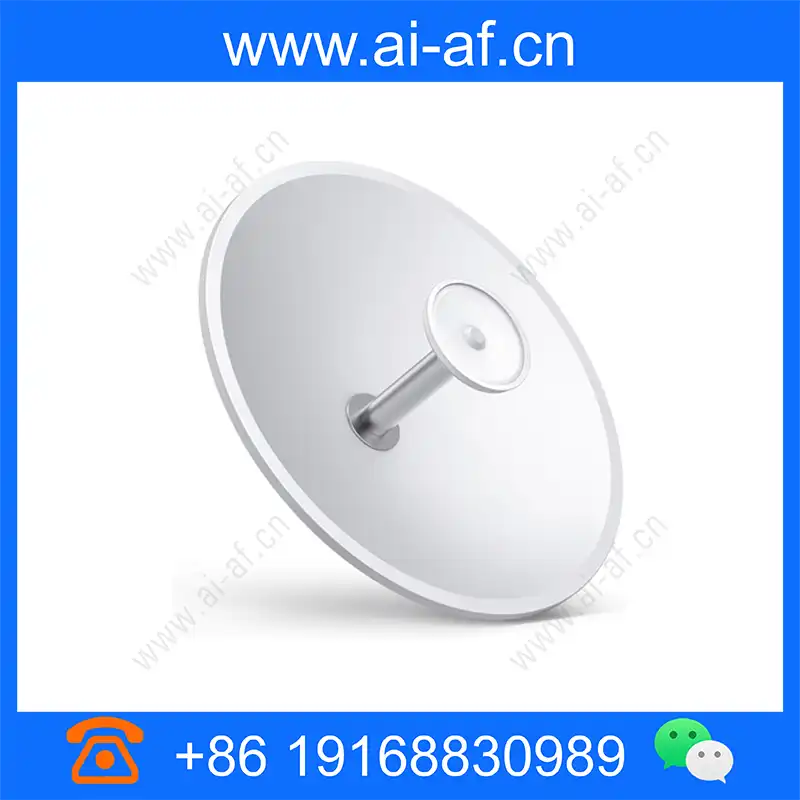

TP-LINK TL-ANT5830MD dish base station antenna indoor and outdoor 30KM 5GHz 30dBi 6°
5GHz band antenna, used with TP-LINK 5GHz outdoor wireless base station products, can be used for outdoor ultra-long-distance point-to-point wireless transmission 30dBi gain, horizontal coverage angle 6° 2×2 MIMO design, horizontal and vertical dual polarization Outdoor use, providing base station mounting brackets, base station products are plug and play, no tools required 5GHz butterfly antenna TL-ANT5830MD uses 2×2 MIMO technology, horizontal and vertical dual-polarization design, gain up to 30dBi, horizontal coverage angle 6°. It can be used in conjunction with TP-LINK 5GHz outdoor wireless base station products to meet the needs of outdoor ultra-long-distance (50KM) point-to-point wireless transmission applications. TL-ANT5830MD provides a mounting base for wireless base station
Product Features
5GHz butterfly antenna TL-ANT5830MD uses 2×2 MIMO technology, horizontal and vertical dual-polarization design, gain up to 30dBi, horizontal coverage angle 6°. It can be used in conjunction with TP-LINK 5GHz outdoor wireless base station products to meet the needs of outdoor ultra-long-distance (50KM) point-to-point wireless transmission applications. TL-ANT5830MD provides a mounting base for wireless base station installation, plug and play, easy to install, without tools. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 5.0-6.0GHz |
| Gain | 30dBi |
| Standing wave ratio | Less than 1.8 |
| Horizontal lobe width | 6° |
| Vertical lobe width | 6° |
| Front-to-back ratio | More than 34dB |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | RP-SMA |
| Product Size | 600 mm diameter |
| product weight | 6.0kg |
| Wind resistance | 241km/h |
| range of working temperature | -40°C~60°C |
| Installation method | Pole mounting |
