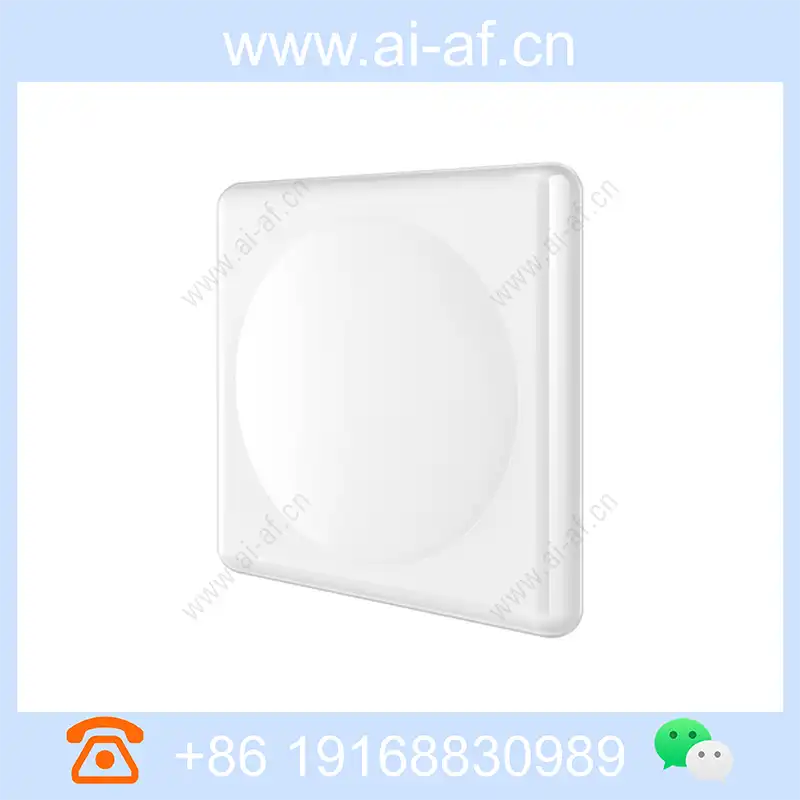

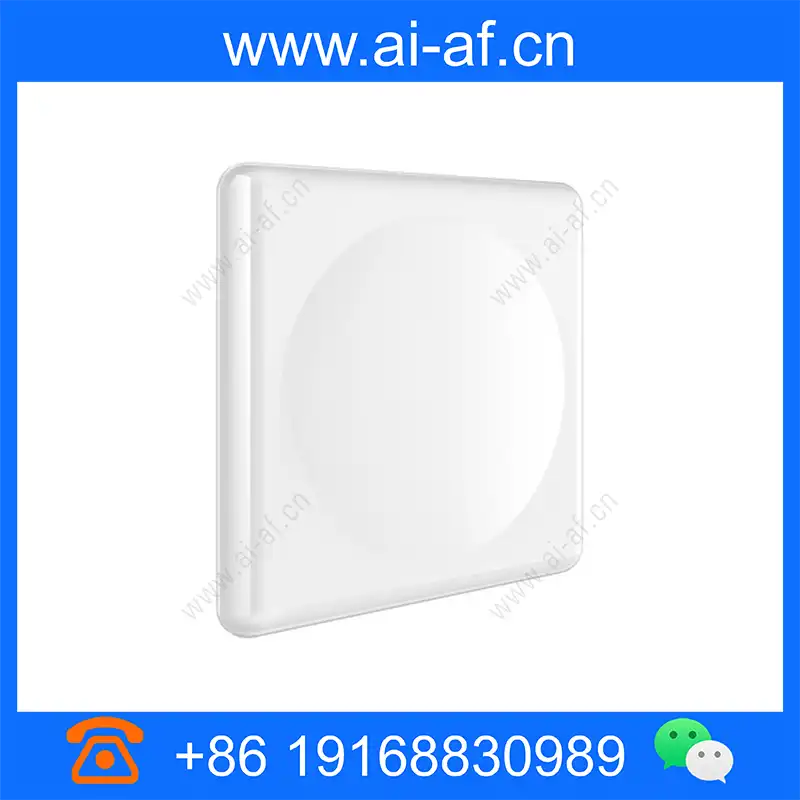

TP-LINK TL-ANT5818MS17-2N 5GHz 18dBi Dual N-type Head 17° Direction Antenna
5GHz band antenna, used with TP-LINK outdoor wireless AP products, can be used for outdoor multi-scenario wireless signal coverage 18dBi gain, horizontal coverage angle up to 17° 2×2 MIMO design, horizontal and vertical dual polarization Outdoor use, providing mounting brackets, 2 N-type connectors plug and play, easy maintenance The 5GHz Directional antenna TL-ANT5818MS17-2N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, gain up to 18dBi. It can be used with TP-LINK 5GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 17°. TL-ANT5818MS17-2N has 2 N-type connectors (2 5G) and provides a mounting base for fixed antenna installation. It is ready to use and easy to maintain. Working
Product Features

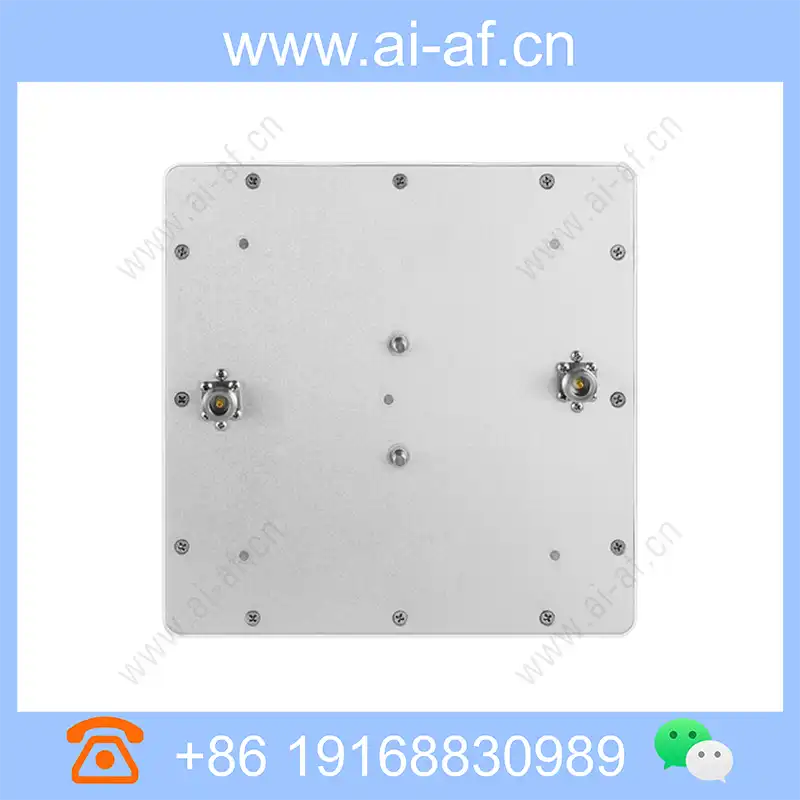

The 5GHz Directional antenna TL-ANT5818MS17-2N adopts 2×2 MIMO technology, horizontal and vertical dual polarization design, gain up to 18dBi. It can be used with TP-LINK 5GHz outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 17°. TL-ANT5818MS17-2N has 2 N-type connectors (2 5G) and provides a mounting base for fixed antenna installation. It is ready to use and easy to maintain. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 5.15-5.85GHz |
| Gain | 18dBi |
| Standing wave ratio | ≤2 |
| Horizontal lobe width | 17° |
| Vertical lobe width | 17° |
| MIMO number | 2x2 |
| Polarization mode | Vertical and horizontal dual polarization |
| input resistance | 50Ω |
| Connector model | N-F |
| Product Size | 216x216x25mm |
| range of working temperature | -40°C~65°C |
| Protection class | IP64 |
| Installation method | Pole mounting |
