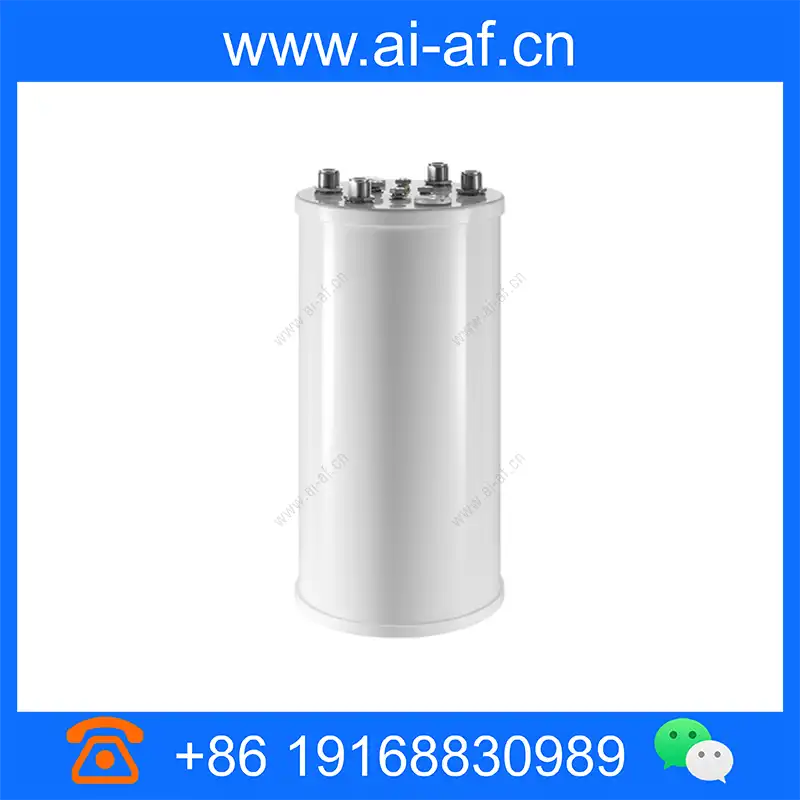

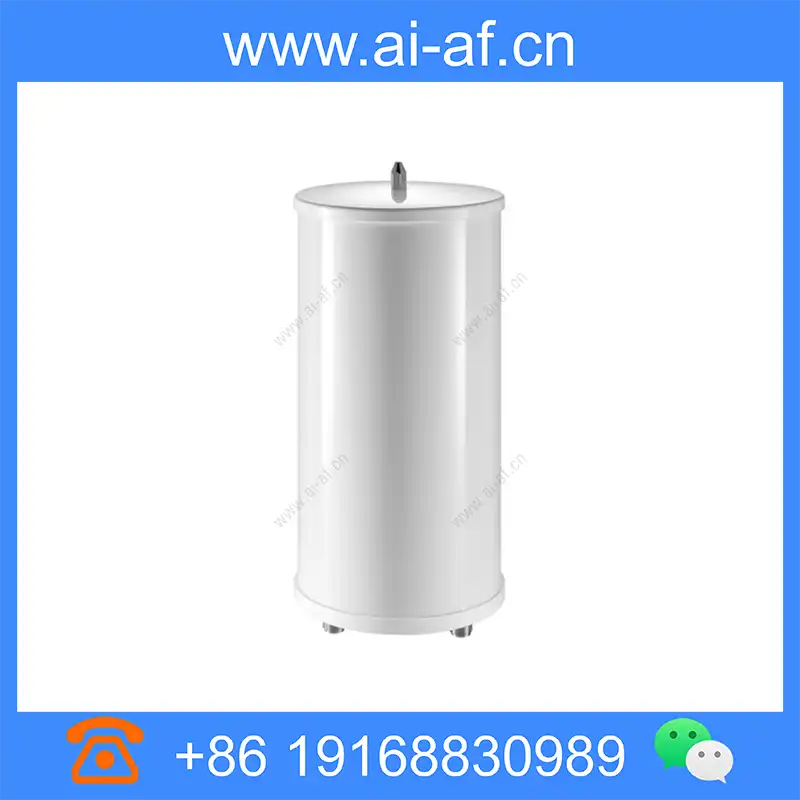

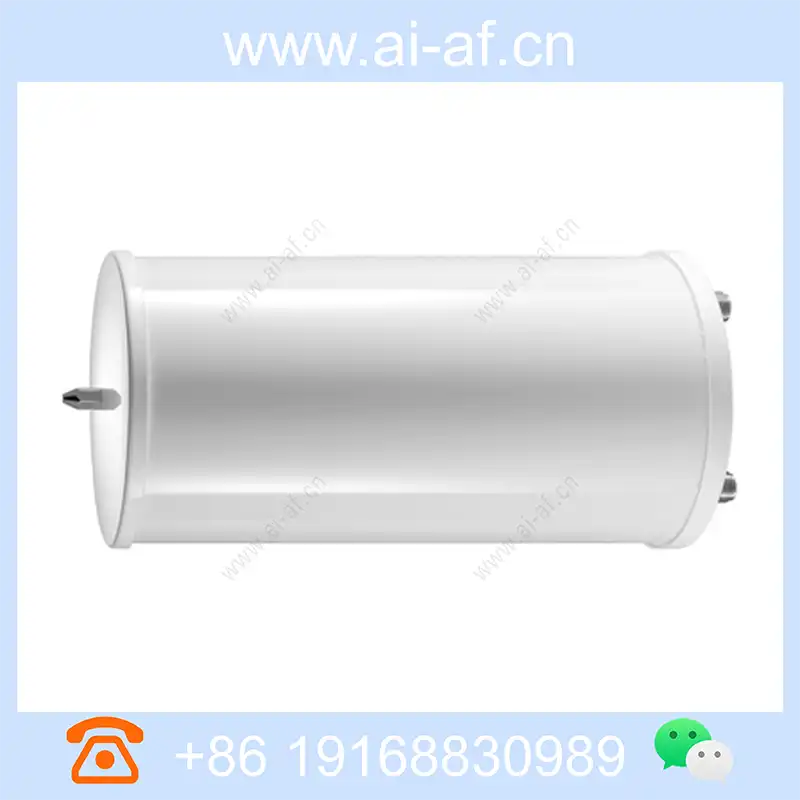

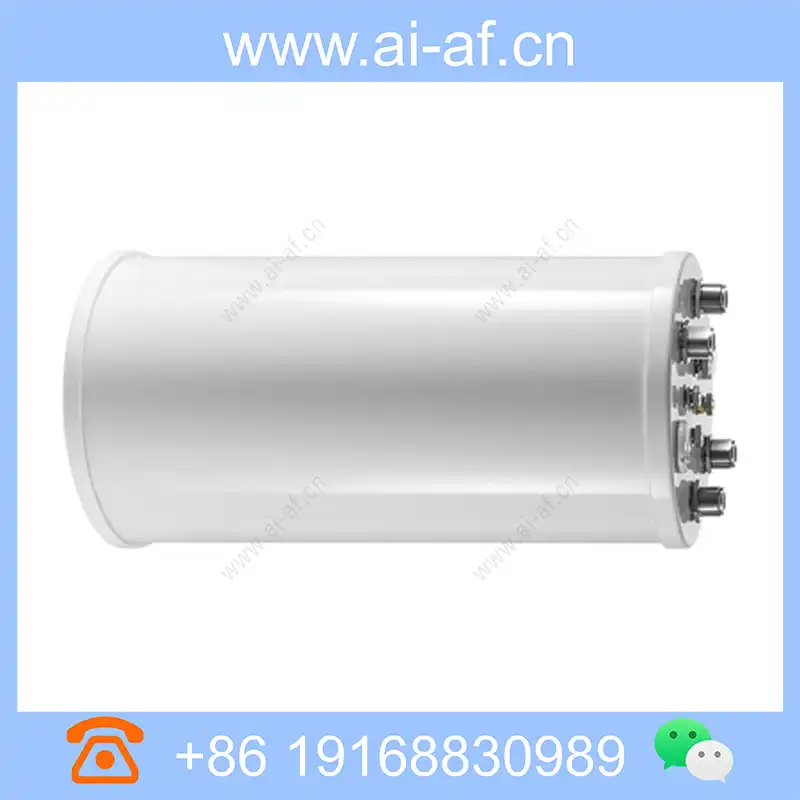

TP-LINK TL-ANTDB08MO-4N Omnidirectional AP antenna four N-type head 360° 2.4 5GHz 8dBi
2.4GHz&5GHz dual-band antenna, used with TP-LINK outdoor wireless AP products, can be used for outdoor multi-scenario wireless signal coverage 5dBi&8dBi gain, the horizontal coverage angle can reach 360° 2×2 MIMO design, vertical polarization Outdoor use, providing mounting brackets, 4 N-type connectors plug and play, easy maintenance The 2.4GHz and 5GHz dual-frequency Directional antenna TL-ANTDB08MO-4N uses 2×2 MIMO technology and a vertically polarized design. The 2.4GHz gain is up to 5dBi and the 5GHz gain is up to 8dBi. It can be used with TP-LINK outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 360° (omniDirectional). TL-ANTDB08MO-4N has 4 N-type connectors (2 2.4G, 2 5G), and provides a mounting base for
Product Features

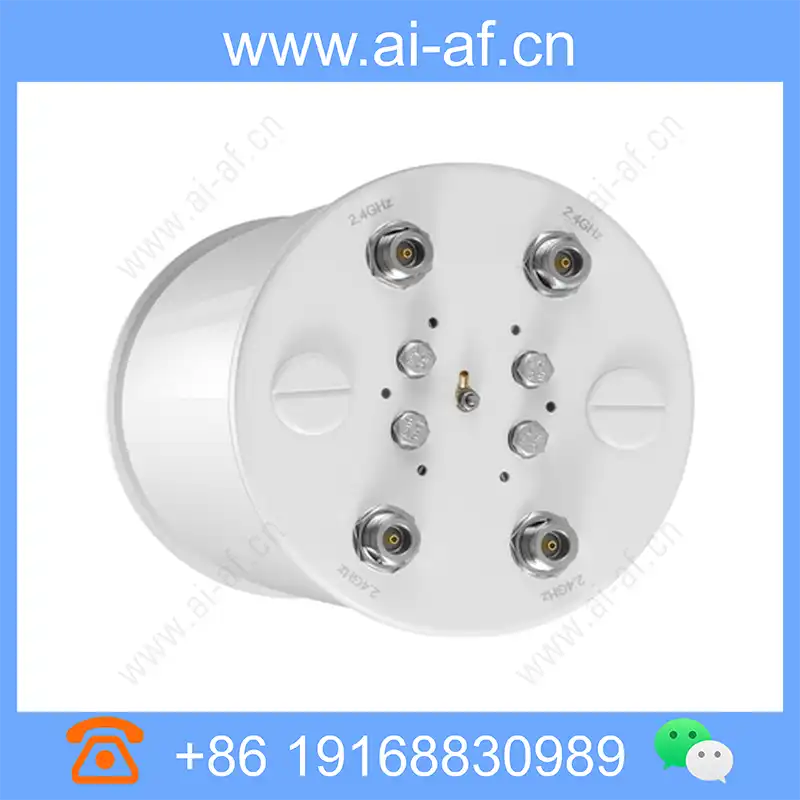

The 2.4GHz and 5GHz dual-frequency Directional antenna TL-ANTDB08MO-4N uses 2×2 MIMO technology and a vertically polarized design. The 2.4GHz gain is up to 5dBi and the 5GHz gain is up to 8dBi. It can be used with TP-LINK outdoor wireless AP products to support outdoor long-distance signal coverage, and the horizontal coverage angle can reach 360° (omniDirectional). TL-ANTDB08MO-4N has 4 N-type connectors (2 2.4G, 2 5G), and provides a mounting base for fixed installation of the antenna. It is easy to maintain and install. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Working frequency range | 2.4-2.5GHz 5.15-5.85GHz |
| Gain | 2.4GHz:5dBi 5GHz:8dBi |
| Standing wave ratio | ≤2 |
| Horizontal lobe width | 360° |
| Vertical lobe width | 15° |
| MIMO number | 2x2 |
| Polarization mode | Vertical polarization |
| input resistance | 50Ω |
| Connector model | N-F |
| Product Size | Φ145x320mm |
| range of working temperature | -40°C~65°C |
| Protection class | IP64 |
| Installation method | Pole mounting |
