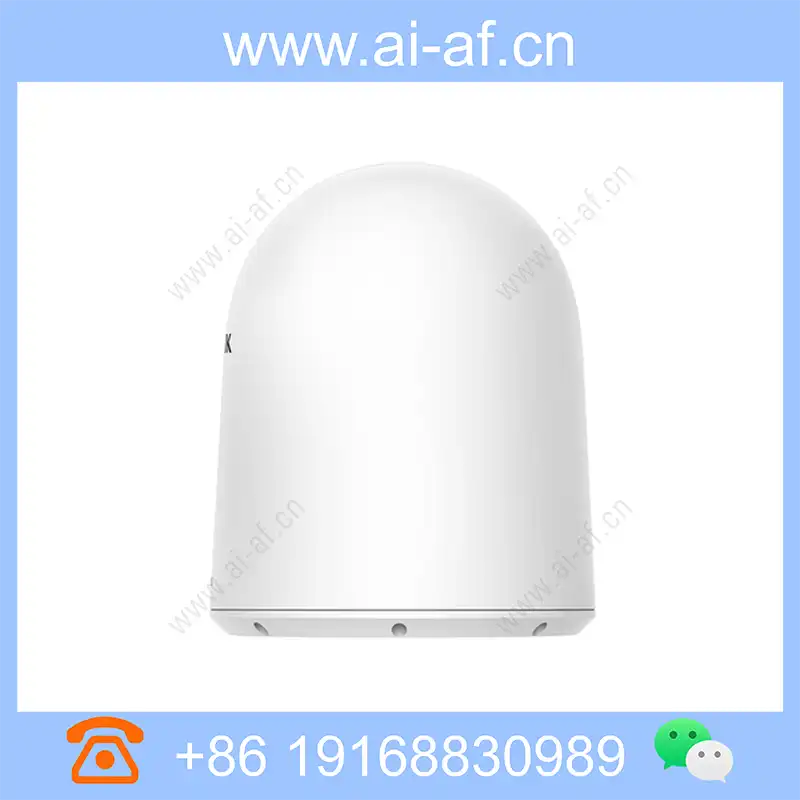

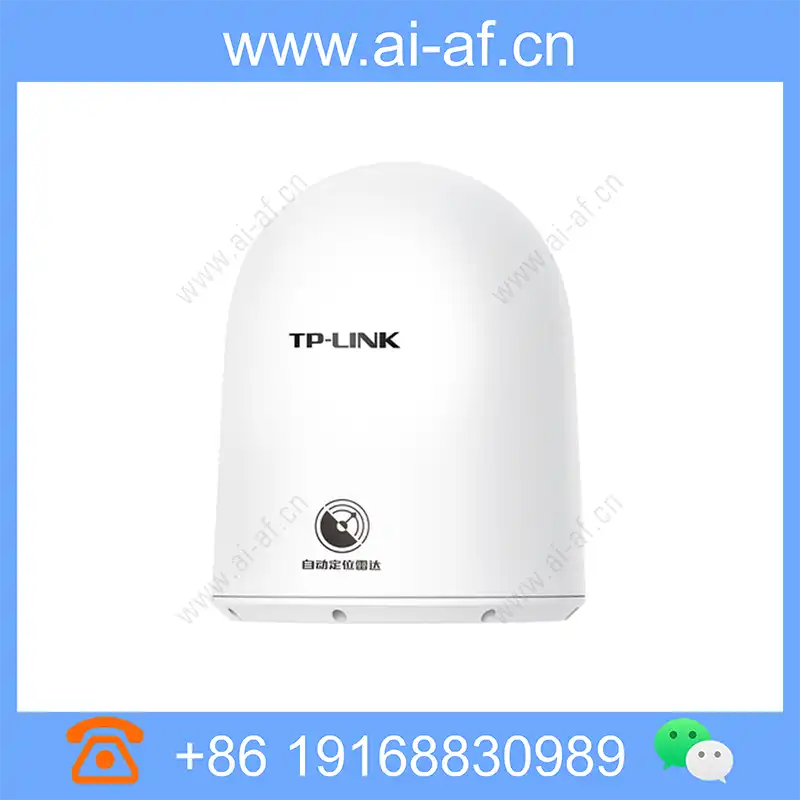

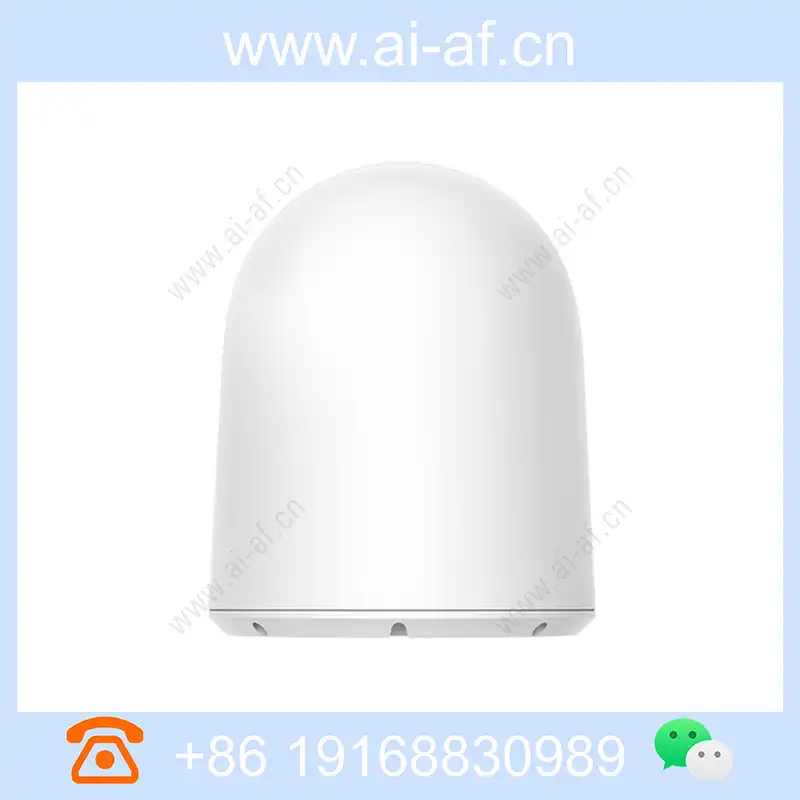

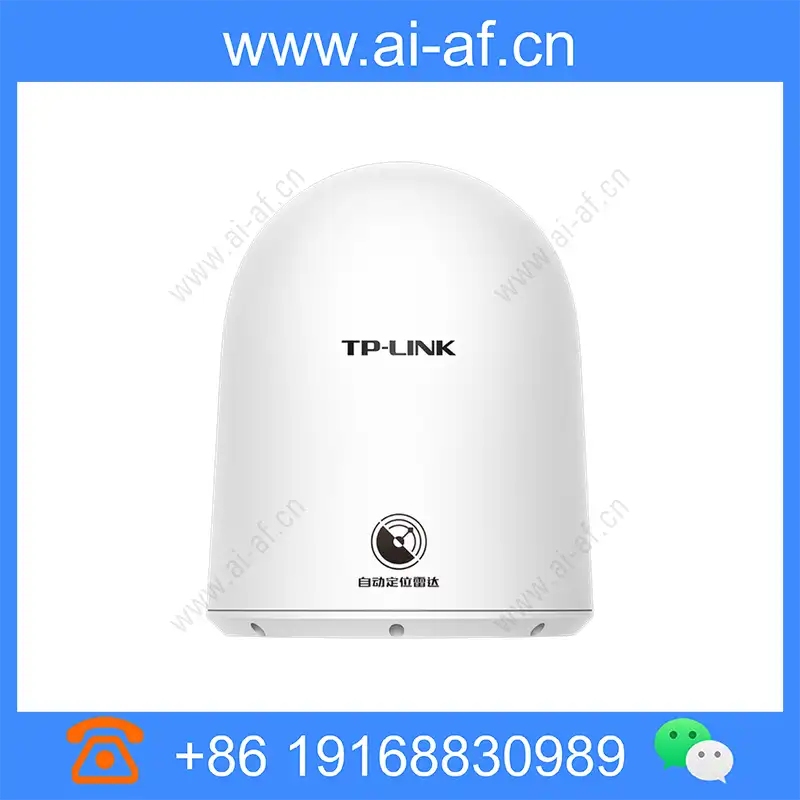

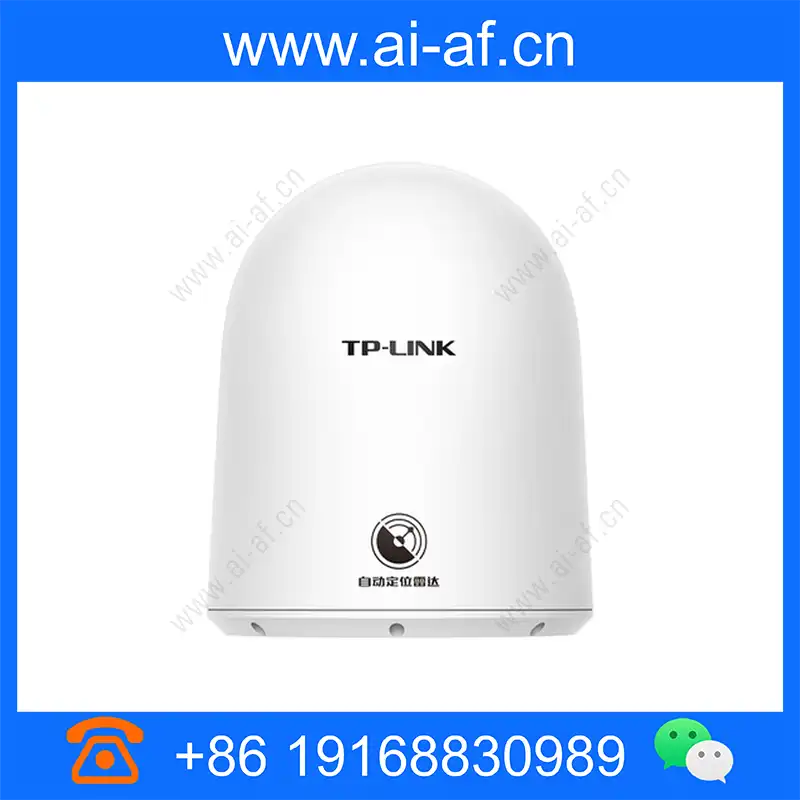

TP-LINK TL-CPE500AR wireless CPE automatic positioning single installation indoor and outdoor universal 5KM 867M
Support mobile phone configuration parameters, convenient installation and maintenance 867M wireless, built-in high-gain 13dBi dual-polarized antenna, providing high-performance wireless Automatic positioning radar, automatically complete the antenna addressing and matching work Pure 5GHz frequency band, less interference, wireless transmission distance up to 5 kilometers Professional outdoor shell design, waterproof and dustproof Installation method Bracket installation (Mounting bracket must be purchased separately) Wireless standard IEEE 802.11a/n/ac Wireless rate 867Mbps wireless Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz Transmit power 20dBm antenna Built-in 13dBi dual-polarized antenna Maximum wireless transmission distance (no interference) 5 KM interface 1 x 10/100
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Installation method | Bracket installation (Mounting bracket must be purchased separately) |
| Wireless standard | IEEE 802.11a/n/ac |
| Wireless rate | 867Mbps |
| wireless | Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz |
| Transmit power | 20dBm |
| antenna | Built-in 13dBi dual-polarized antenna |
| Maximum wireless transmission distance (no interference) | 5 KM |
| interface | 1 x 10/100 RJ45 port (LAN0/POE) |
| Power supply | 12V / 1A Passive PoE power supply, power supply distance up to 60M |
| Indicator light | PWR indicator |
| Antenna coverage angle | Horizontal Direction: 180° Vertical Direction: 360° |
| Product Size | Bottom radius 78mm, height 194mm |
| Use environment | Operating temperature: -15°C~60°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Dust and water resistance | ASA engineering plastic case, IP55 dustproof and waterproof |
| Wireless working mode | Client (support wireless hotspot on) |
| Network settings | LAN port connection: Static IP |
| wireless setting | 802.11a/n/ac mode automatic channel selection Transmit power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encrypted SSID broadcast/no display distance setting channel bandwidth selection advanced setting: Beacon time slot , RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | HTTP/HTTPS WEB management System log Time and NTP settings Ping watchdog |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU usage, memory usage Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute |
| System Optimization | IGMP Snooping optimization hardware watchdog |
