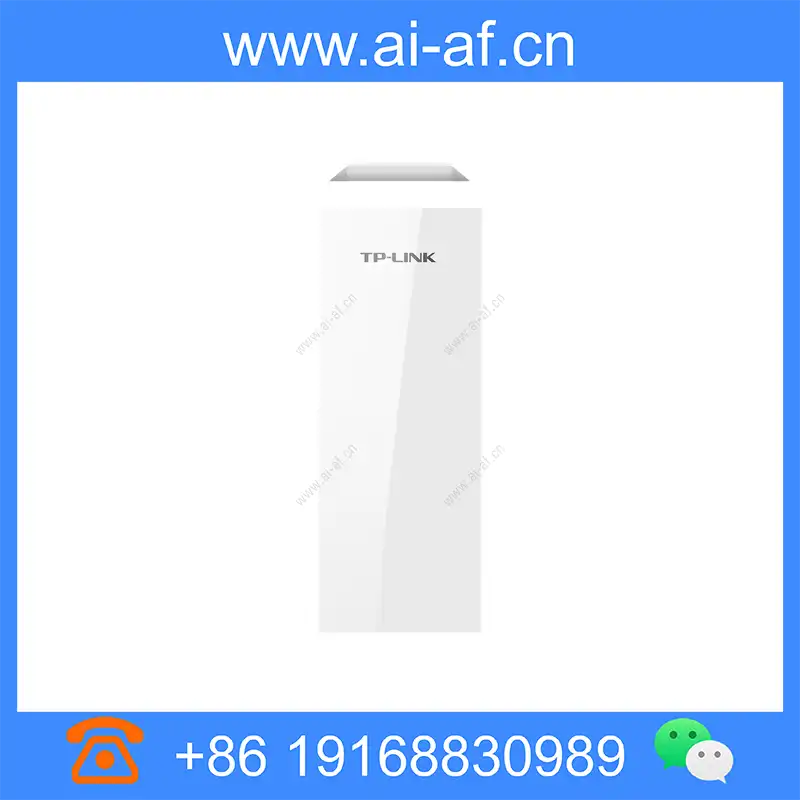

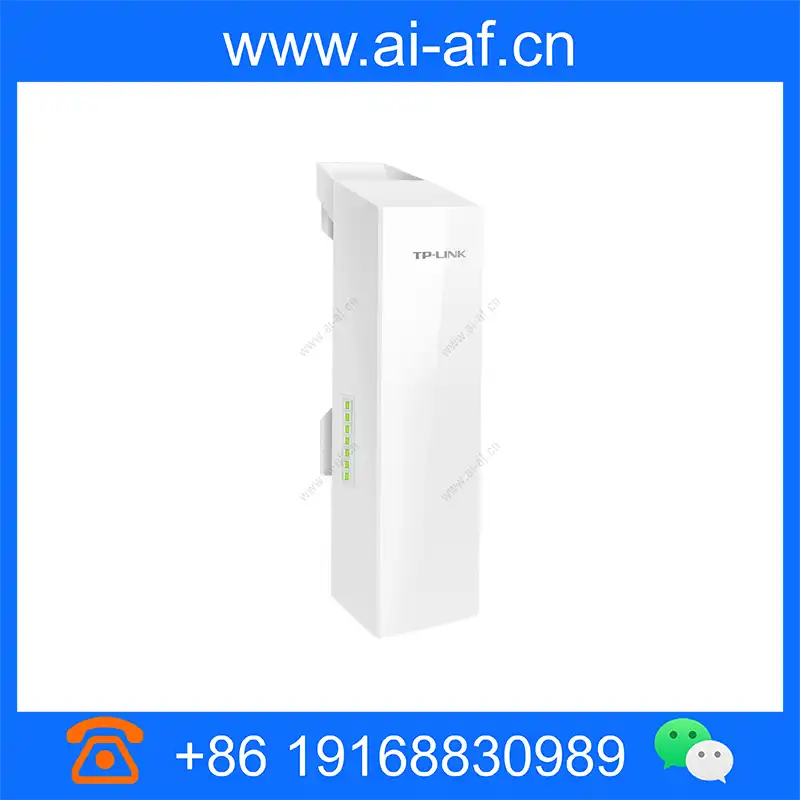

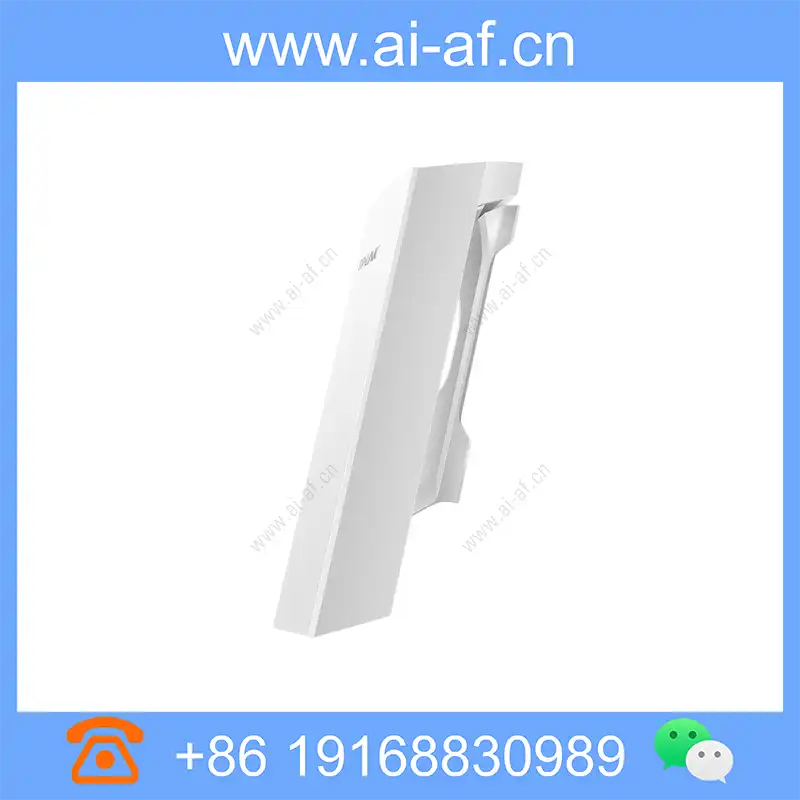

TP-LINK TL-CPE503 5GHz 867M Outdoor Wireless CPE

Brand: TP-LINK

Model: TL-CPE503

Dimensions: 224mm x 79mm x 60mm

Professional outdoor shell design, adapt to various harsh environments 867M wireless, built-in high-gain 13dBi dual-polarized antenna, providing high-performance wireless Pure 5GHz frequency band, less interference, wireless transmission distance up to 5 kilometers Installation method

Punching Bill installation

Wireless standard

IEEE 802.11a/n/ac

Wireless rate

867Mbps

wireless

operating frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz

Transmit power

20dBm

antenna

Built-in 13DBI Bipolarization Antenna

Maximum wireless transmission distance (no interference)

5 KM

interface

3 10/100Mbps RJ45 port
lan0: passive PoE input and 802.3t PoE

Product Features

Professional outdoor shell design, adapt to various harsh environments
867M wireless, built-in high-gain 13dBi dual-polarized antenna, providing high-performance wireless
Pure 5GHz frequency band, less interference, wireless transmission distance up to 5 kilometers

Technical Specifications

Property Description	Property Value

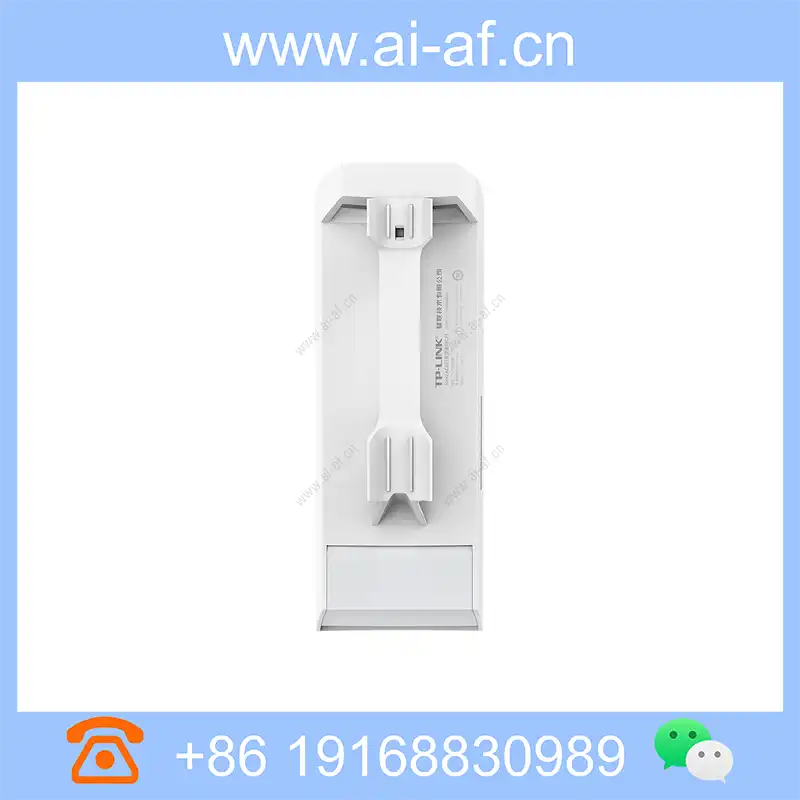

Installation method	Punching Bill installation
Wireless standard	IEEE 802.11a/n/ac
Wireless rate	867Mbps
wireless	operating frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz
Transmit power	20dBm
antenna	Built-in 13DBI Bipolarization Antenna
Maximum wireless transmission distance (no interference)	5 KM

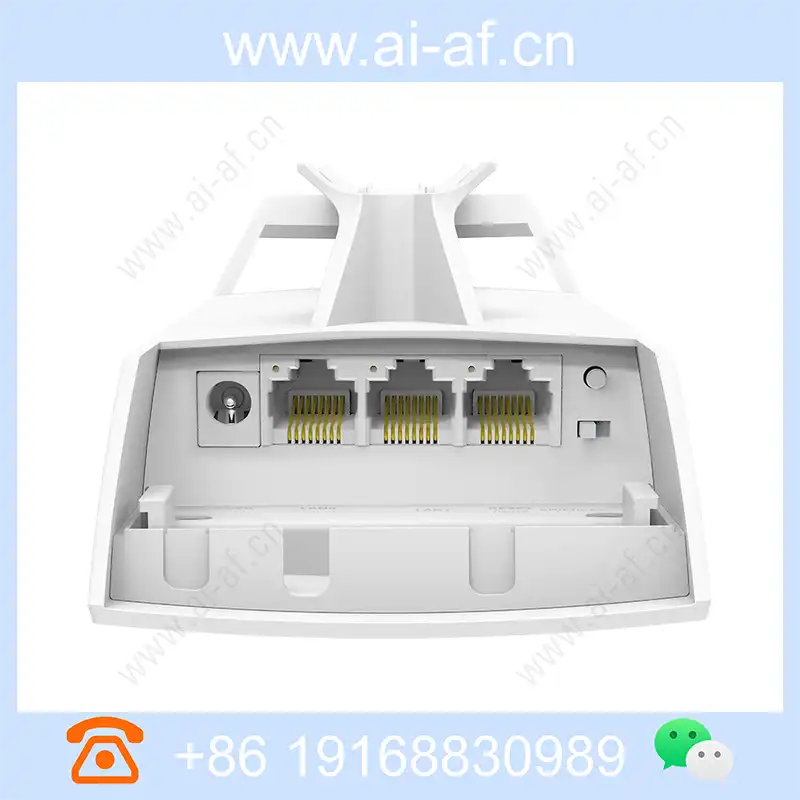

interface	3 10/100Mbps RJ45 port lan0: passive PoE input and 802.3t PoE output lan1: 802.3at PoE output LAN2: 802.3AT PoE Enter 1 DC Power Socket
Power supply	24VDC / 0.25A, support 802.3t PoE and Passive PoE power supply
Indicator light	PWR, LAN0, LAN1, 4 Signal intensity indicator
Antenna coverage angle	Level Direction: 45° vertical Direction: 30°
Product Size	224x79x60(mm)
Use environment	operating temperature: -30°C ~ 70°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH Condensation storage humidity: 5% ~ 90% RH does not condense
Dust and water resistance	ASA engineering plastic housing, IP55 grade dustproof, waterproof
Power Adapter	24V/0.25A
Maximum power of the whole machine	With load 25.03W (without power adapter) Without load 5.031W (without power adapter) 6.145W (with power adapter)
Wireless working mode	AP、Client
Network settings	LAN port connection: static IP, dynamic IP
wireless setting	802.11a / n / ac mode automatic channel selection Transmission power adjustment WDS wireless security : WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP) encryption SSID broadcast / hide distance set channel bandwidth selection Advanced setting: Beacon Time slot, RTS threshold, slice threshold, DTIM interval, AP isolation, short gi, WMM
Management and maintenance	http / https web management system log time and NTP settings ping watchdog
System Tools	system status: signal strength, noise intensity, transmission CCQ, CPU usage, memory occupancy status monitoring: throughput / wireless client / interface / arp rate test ping traceroute
System Optimization	gmp snooping Optimization hardware watchdog
