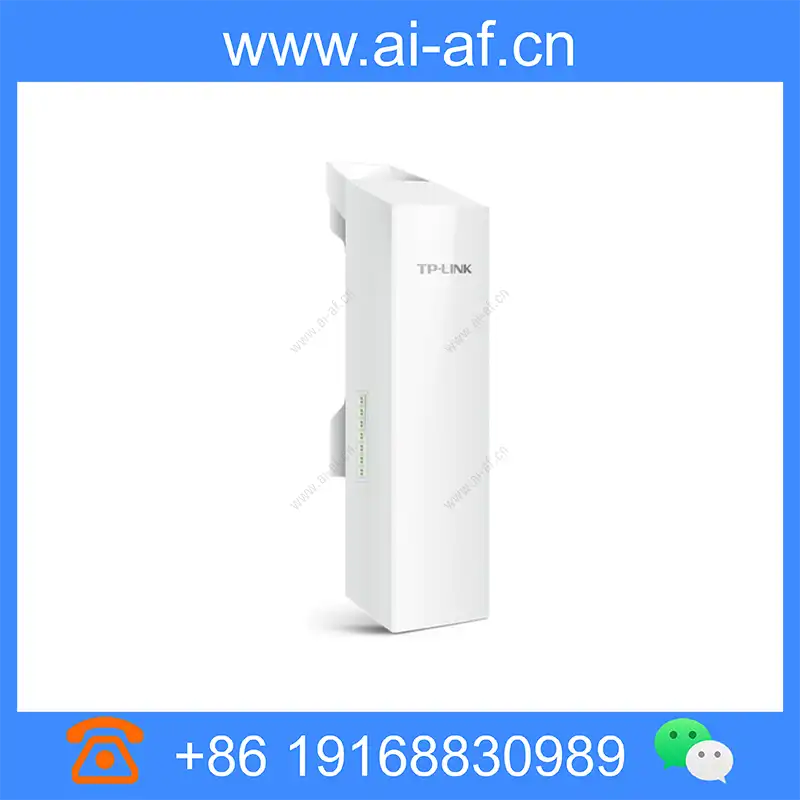

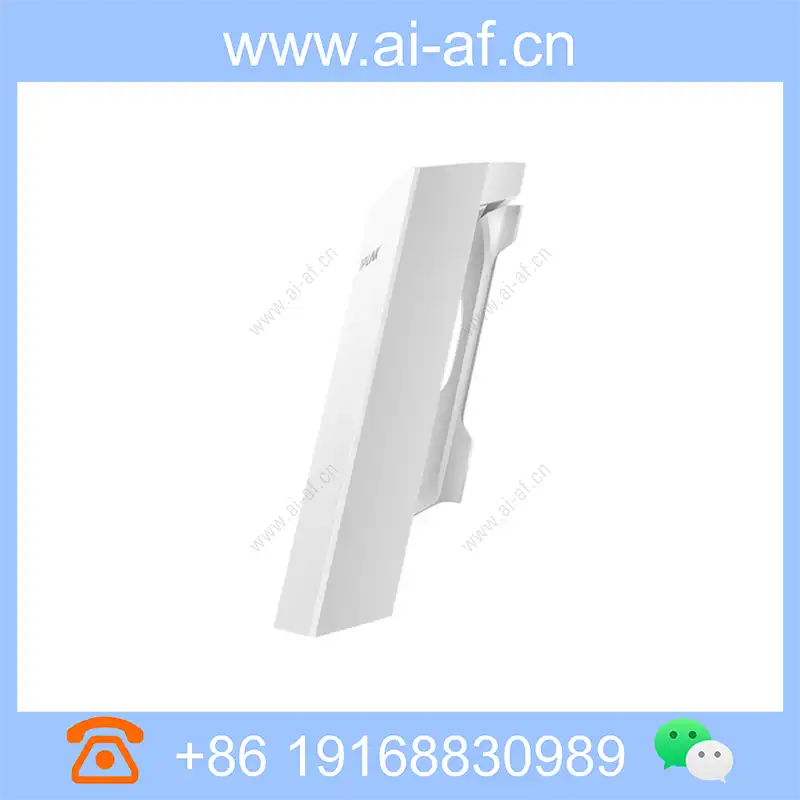

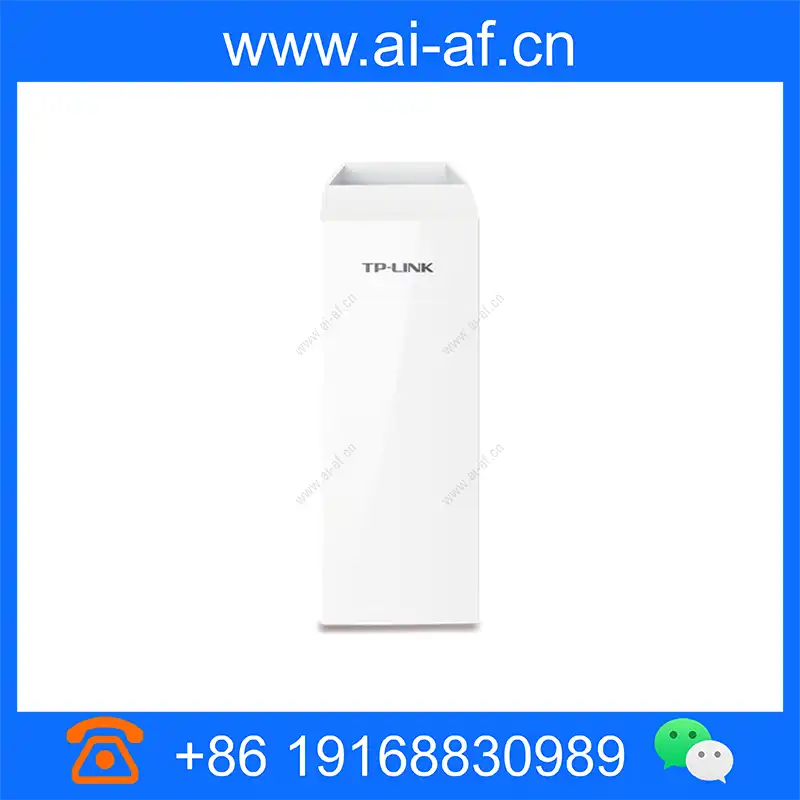

TP-LINK TL-CPE530 5GHz AC867 Outdoor Wireless CPE
Professional outdoor shell design, adapt to various harsh environments 867M wireless, built-in high-gain dual-polarized antenna, providing high-performance wireless Pure 5GHz frequency band, less interference, wireless transmission distance up to 15 kilometers Dual Gigabit wired network ports, allowing wireless transmission over 100 megabytes to break through the wired bottleneck processor Qualcomm AtherosCPU Installation method Pole mounting Wireless standard IEEE 802.11a/n/ac Wireless rate 866Mbps wireless Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz Transmit power 26dBm antenna Built-in 13dBi dual-polarized antenna Maximum wireless transmission distance (no interference) More than 15 kilometers interface 1 10/100/1000Mbps shielded RJ45 port (LAN0/POE) 1 10/100/1000Mbps
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| processor | Qualcomm AtherosCPU |

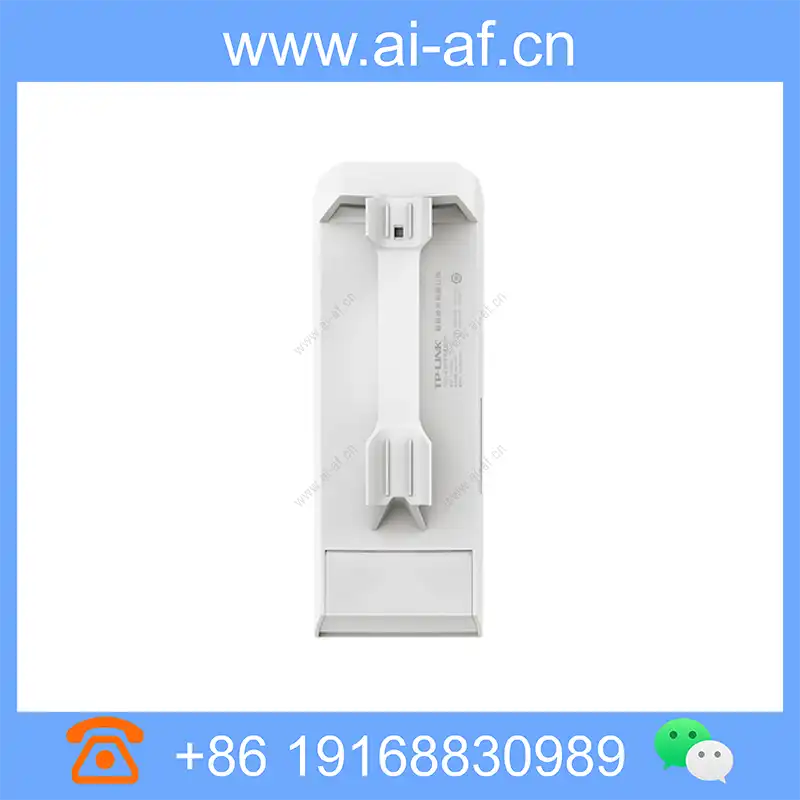

| Installation method | Pole mounting |
| Wireless standard | IEEE 802.11a/n/ac |
| Wireless rate | 866Mbps |
| wireless | Working frequency band: 5.15 ~ 5.25GHz, 5.735 ~ 5.835GHz |
| Transmit power | 26dBm |
| antenna | Built-in 13dBi dual-polarized antenna |
| Maximum wireless transmission distance (no interference) | More than 15 kilometers |
| interface | 1 10/100/1000Mbps shielded RJ45 port (LAN0/POE) 1 10/100/1000Mbps shielded RJ45 port (LAN1) |
| Power supply | 24V / 0.7A Passive PoE power supply, power supply distance up to 100M |

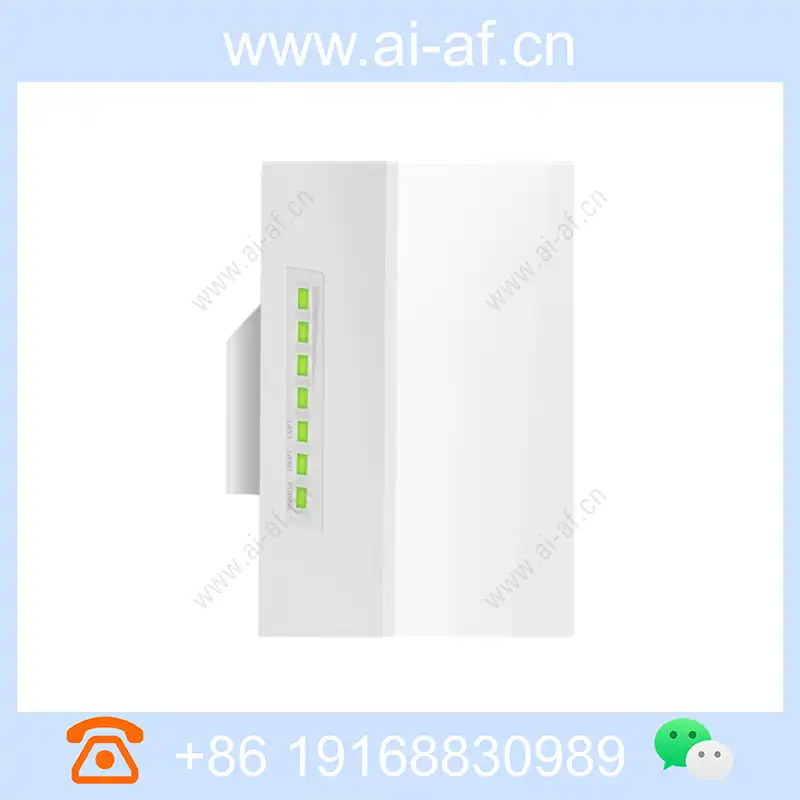

| Indicator light | PWR, LAN0, LAN1, 4 signal strength indicators |
| Antenna coverage angle | Horizontal Direction: 45° Vertical Direction: 30° |
| Product Size | 224x79x60(mm) |
| Use environment | Operating temperature: -30°C~70°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Dust and water resistance | ASA engineering plastic case, IP55 dustproof and waterproof |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: static IP, dynamic IP |
| wireless setting | 802.11a/n/ac mode automatic channel selection and transmission power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128/152 bit WEP encryption, SSID broadcast/no distance setting Channel bandwidth selection advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | HTTP/HTTPS WEB management System log Time and NTP settings Ping watchdog |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU usage, memory usage Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute |
| System Optimization | IGMP Snooping optimization hardware watchdog |
