TP-LINK TL-CPE541 fixed end and car end set elevator wireless monitoring 5GHz 867Mbps
11AC wireless technology, 866Mbps wireless rate Pure 5G frequency band with less interference Four 100M RJ45, support multi-channel IPC connection 1K elevator shaft environment 4K video easily transmitted Factory-free setting, default setting for bridge connection Support Passive PoE and DC power supply Flexible and simple installation, easy construction and deployment in elevator shaft The wireless transmission power is linearly adjustable, adjust the transmission distance according to the demand, and avoid the same frequency interference Product model TL-CPE541 fixed end TL-CPE541 car end Installation method Ceiling / Pole / Magnetic Installation size 190*171.5*37mm wireless Working frequency band: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 866Mbps port 1 10/100M RJ45 port (LAN0/POE) 3
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-CPE541 fixed end TL-CPE541 car end |
| Installation method | Ceiling / Pole / Magnetic Installation |
| size | 190*171.5*37mm |
| wireless | Working frequency band: 5.15~5.25GHz, 5.735~5.835GHz Wireless rate: 866Mbps |

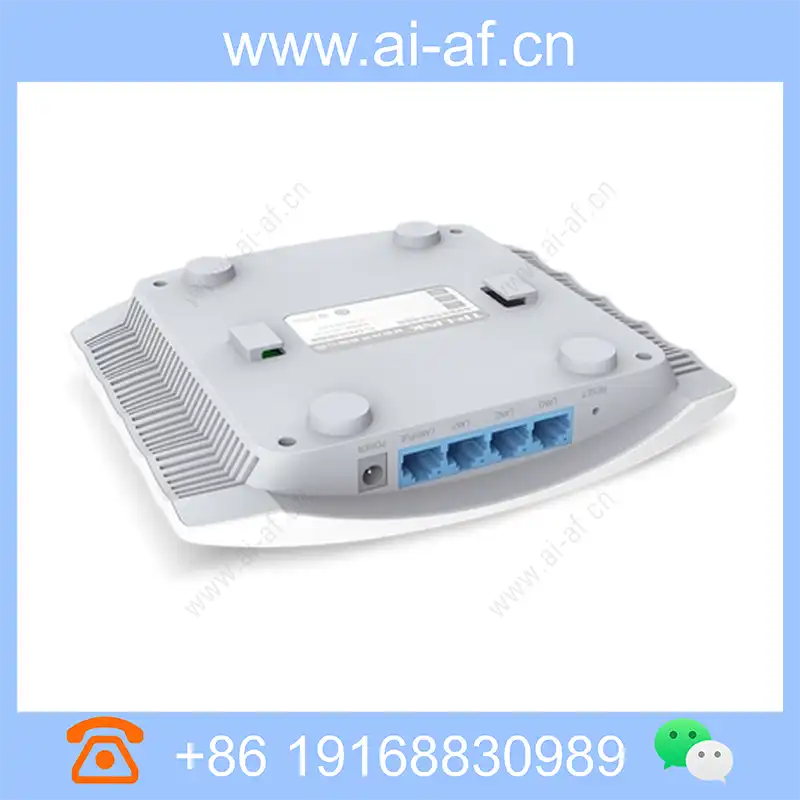

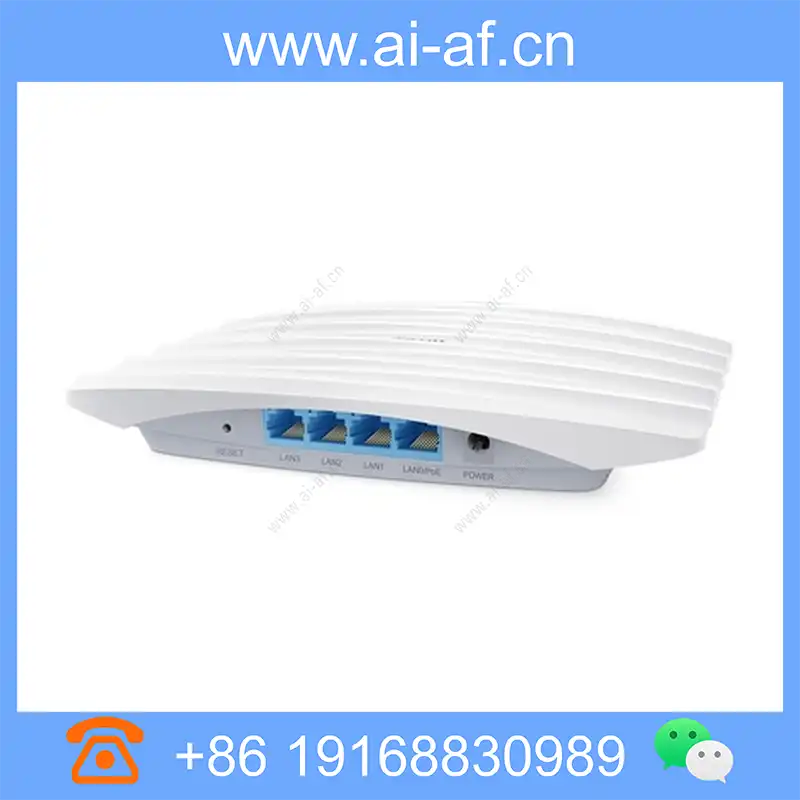

| port | 1 10/100M RJ45 port (LAN0/POE) 3 10/100M RJ45 ports (LAN1, LAN2, LAN3) 1 DC power socket port |
| Indicator light | One system indicator |
| Button | 1 Reset button |
| power supply | 12VDC / 1.0A; Passive PoE power supply |
| management | Independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Wireless working mode | AP、Client |
| Network settings | LAN port connection: static IP, dynamic IP |
| wireless setting | 802.11a/n/ac mode automatic channel selection, transmission power adjustment, wireless security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, 64/128/152 bit WEP encryption, SSID broadcast/no distance setting channel Bandwidth selection advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM |
| Management and maintenance | HTTP/HTTPS WEB management System log Ping watchdog |
| System Tools | System status: signal strength, noise strength, transmission CCQ, CPU occupancy rate, memory occupancy rate Status monitoring: throughput/wireless client/interface/ARP/routing/WAN/DHCP server spectrum analysis rate test Ping Traceroute |
| System Optimization | Hardware watchdog |
