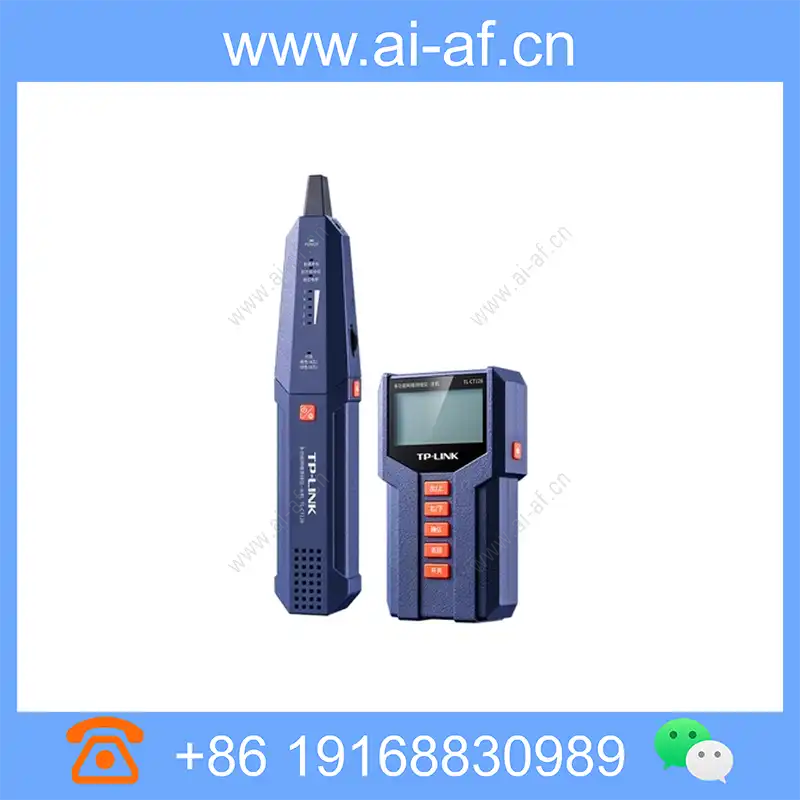

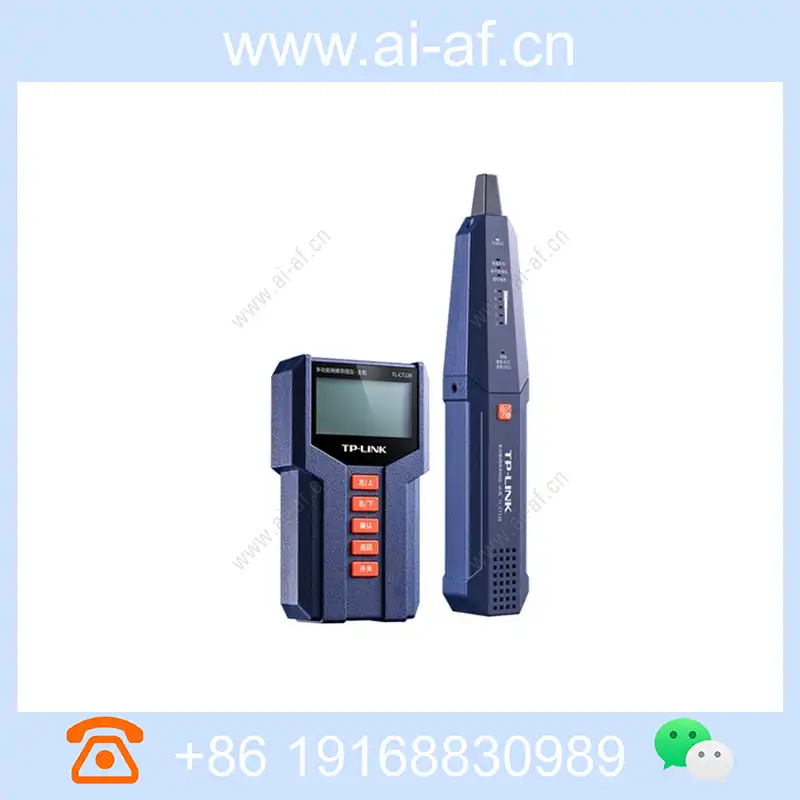

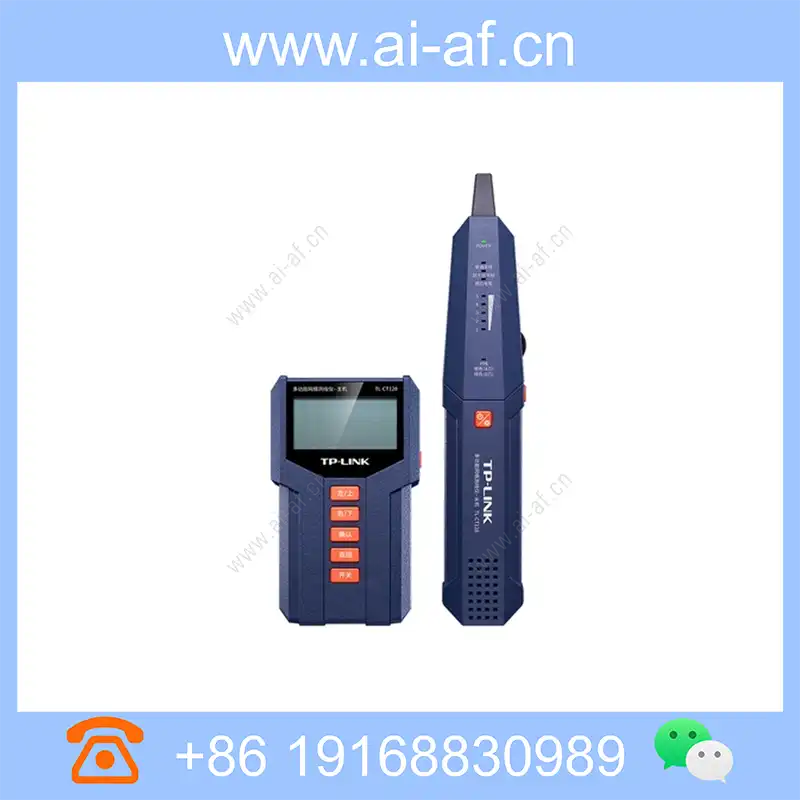

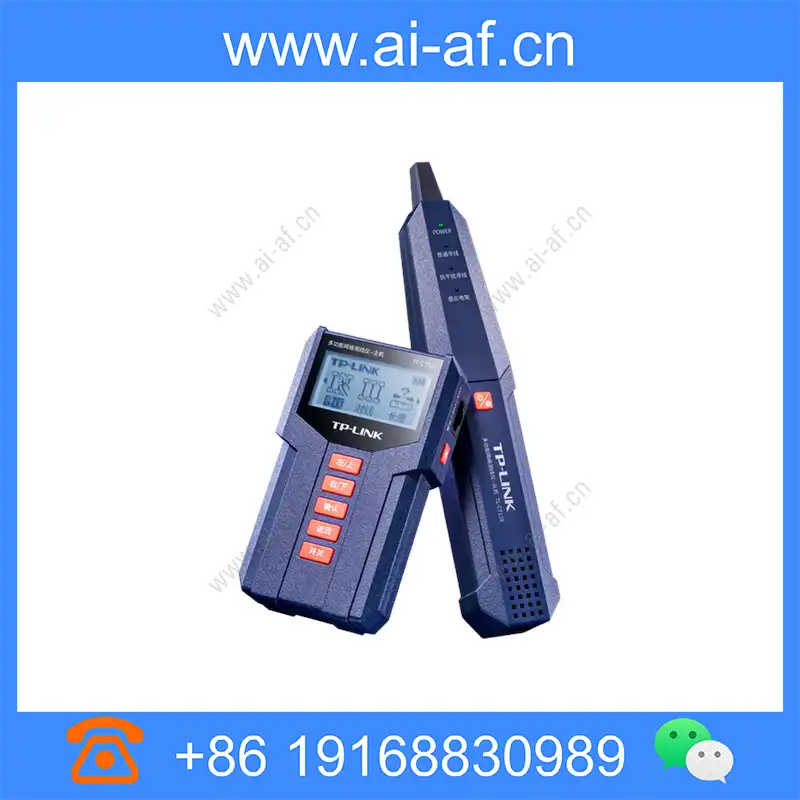

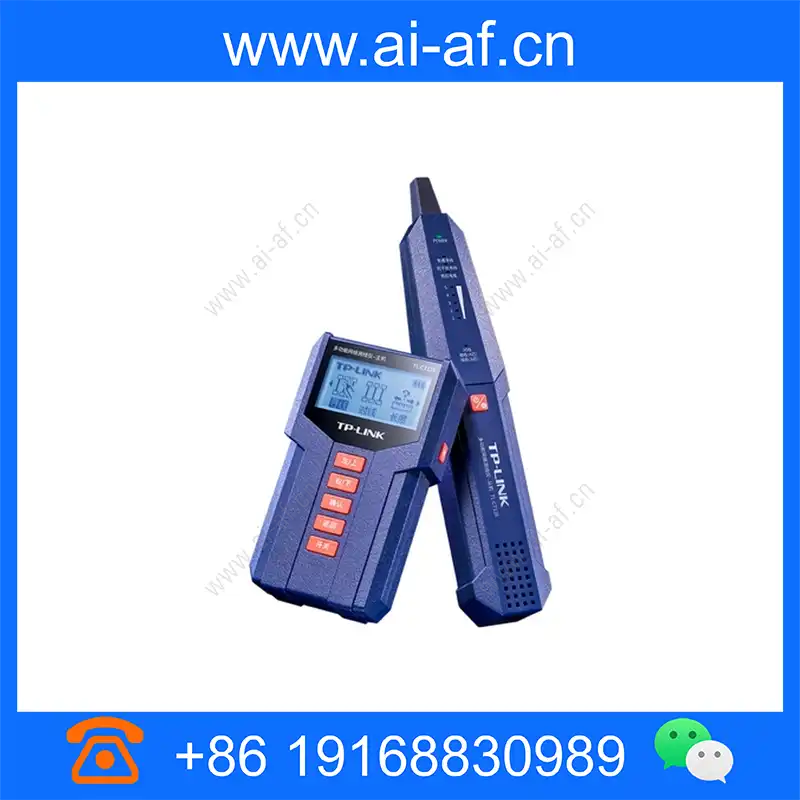

TP-LINK TL-CT128 Multifunctional Network Wire Tester
Ordinary hunt Support telephone line and network line hunt Anti-interference hunt Support telephone line, network line hunt, adjustable sensitivity Line test Support to detect the disconnection, crossover and short circuit of telephone lines and network cables PoE detection Support standards: IEEE 802.3af, IEEE 802.3at PoE voltage detection PoE power supply pair detection Line length test Test line length range 2~170 meters Port rate negotiation Port rate: 10Mbps, 100Mbps, 1000Mbps half duplex, full duplex Port flashes stand by Induction electric pen Support (slave) illumination Support (slave, host) other Automatic shutdown time selection: 10 minutes, 30 minutes, 60 minutes Screen backlight time selection: 15 seconds, 10 minutes Host hardware Buttons: 1 switch key, 1 lighting switch key
Technical Specifications
| Property Description | Property Value |
|---|---|
| Ordinary hunt | Support telephone line and network line hunt |
| Anti-interference hunt | Support telephone line, network line hunt, adjustable sensitivity |
| Line test | Support to detect the disconnection, crossover and short circuit of telephone lines and network cables |
| PoE detection | Support standards: IEEE 802.3af, IEEE 802.3at PoE voltage detection PoE power supply pair detection |
| Line length test | Test line length range 2~170 meters |
| Port rate negotiation | Port rate: 10Mbps, 100Mbps, 1000Mbps half duplex, full duplex |
| Port flashes | stand by |
| Induction electric pen | Support (slave) |
| illumination | Support (slave, host) |
| other | Automatic shutdown time selection: 10 minutes, 30 minutes, 60 minutes Screen backlight time selection: 15 seconds, 10 minutes |
| Host hardware | Buttons: 1 switch key, 1 lighting switch key, 2 menu selection keys, 1 confirmation key, 1 return key Network interface: 3 RJ45 ports, respectively line hunt, line pair, Link/PoE/length port Screen: LCD display power supply: three AAA batteries (distribution) |
| Slave hardware | Buttons: 1 mode selection key (multiplexing switch key), 1 lighting switch key indicator: 1 POWER, 1 common hunt line, 1 anti-interference hunt line, 1 induction electric pen 1 headphone jack 1 anti- Interference hunting sensitivity adjustment knob 1 speaker power supply: 1 6F22 9V battery (distribution) |
| Working condition | Temperature: -10~40°C Humidity: 10%~90% |
| Storage conditions | Temperature: -10~60°C Humidity: 5%~95% |
| Host | 1 |
| Slave | 1 |
| Accessories | Three AAA batteries, one 6F22 9V battery, a pair of headphones, a network cable, an alligator clip, a kit, and a user manual |
