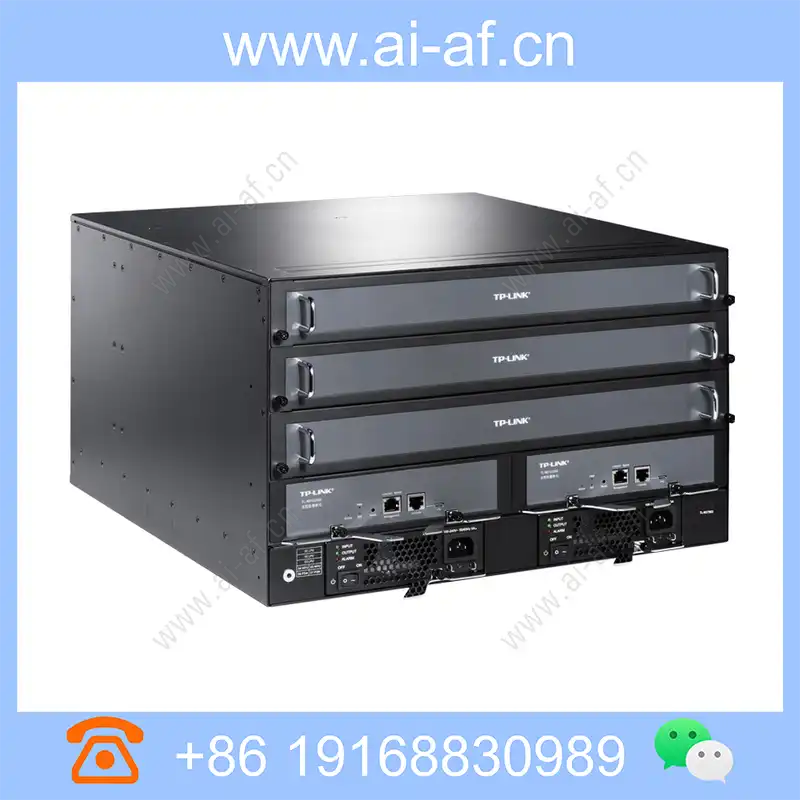

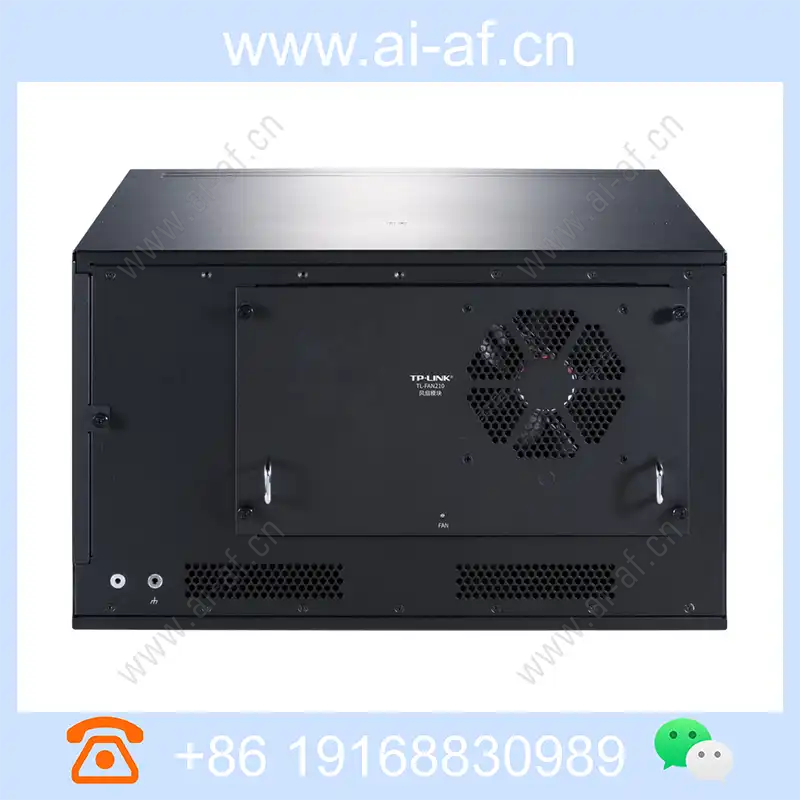

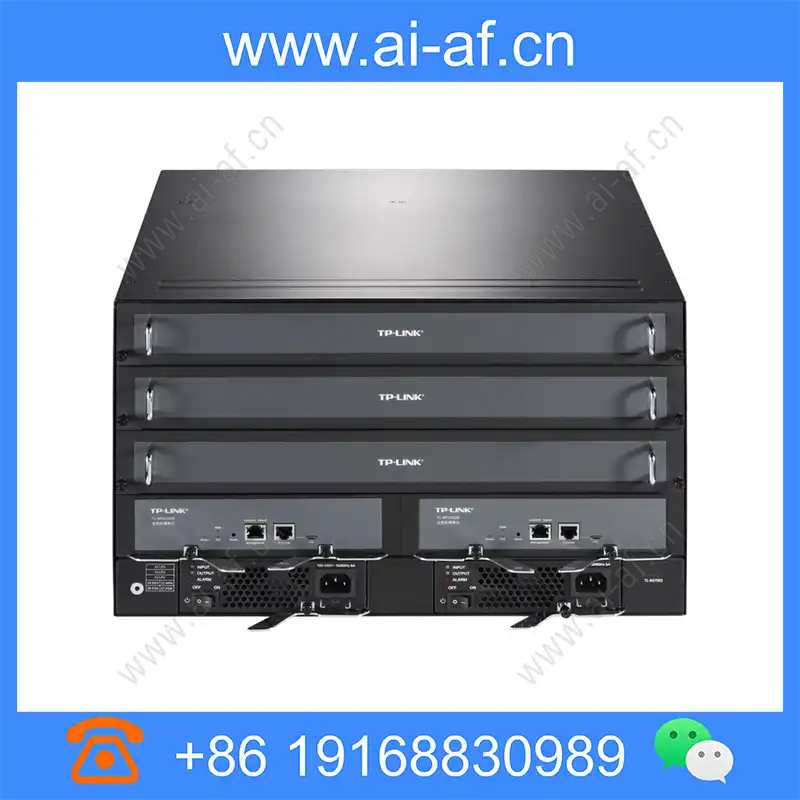

TP-LINK TL-NS7903 Multi-service Intelligent Route Switches

Brand: TP-LINK

Model: TL-NS7903

Dimensions: 442mm x 492mm x 266.20mm

Provide 2 main control processing units and 2 power modules, support hot swap and redundant backup Support 3 gigabit service boards (TL-ST8022F-LPU) Motherboard processing unit has built-in AC function, can manage 1000 TP-LINK AP Support TP-LINK commercial cloud platform management * The left side is full of business board images for exclusive, actual shipping, need to purchase a business board separately Each TL-NS7903

support 3 business board (required to purchase a business board TL-ST8022F-LPU)
standard two main control board TL-MPU1000

Each TL-ST8022F-LPU

22 10,000 gigably SFP+ optical port

Exchange capacity

7.68Tbps

Packet forwarding rate

1.44Gpps

Indicator light

port status

Product Features

Provide 2 main control processing units and 2 power modules, support hot swap and redundant backup
Support 3 gigabit service boards (TL-ST8022F-LPU)
Motherboard processing unit has built-in AC function, can manage 1000 TP-LINK AP
Support TP-LINK commercial cloud platform management

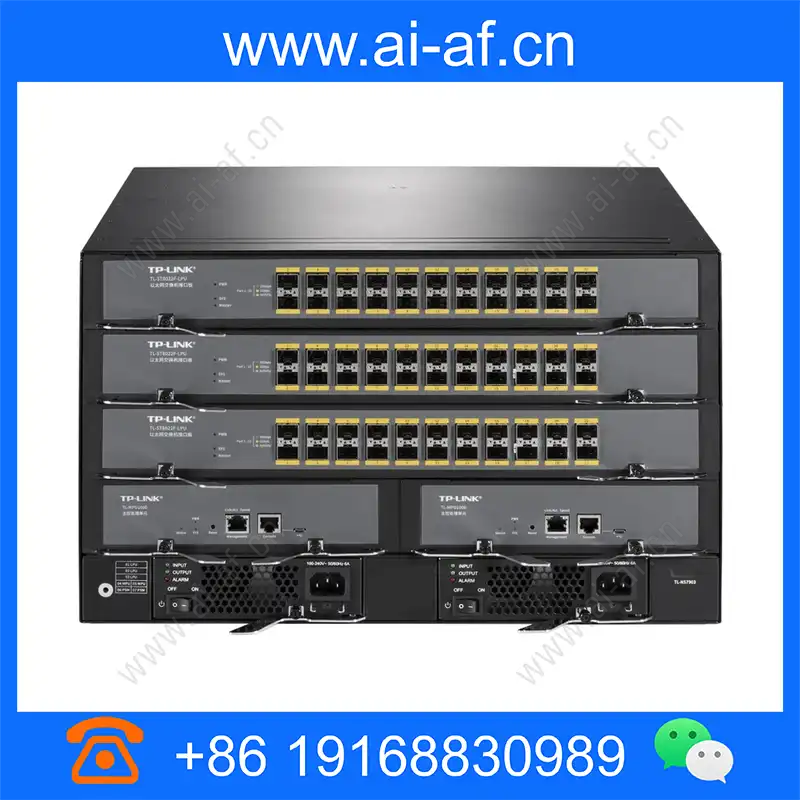

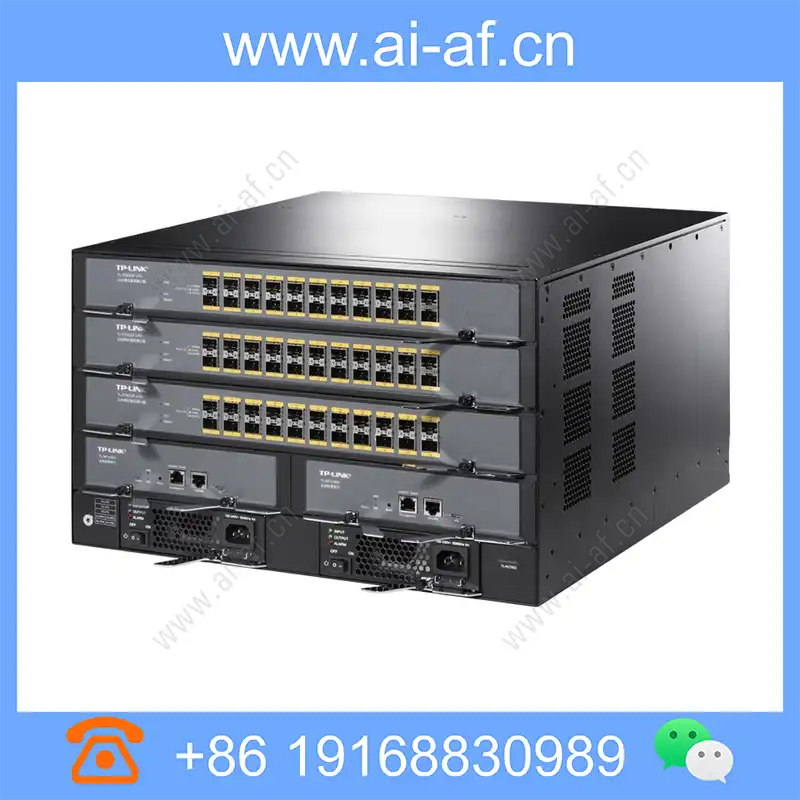

* The left side is full of business board images for exclusive, actual shipping, need to purchase a business board separately

Technical Specifications

Property Description	Property Value
Each TL-NS7903	support 3 business board (required to purchase a business board TL-ST8022F-LPU) standard two main control board TL-MPU1000
Each TL-ST8022F-LPU	22 10,000 gigably SFP+ optical port
Exchange capacity	7.68Tbps
Packet forwarding rate	1.44Gpps
Indicator light	port status indicator, power supply, system status indicator
performance	Storage Forward support 32K MAC address table depth
Input power	100-240V~ 50/60Hz
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
Dimensions (L x W x H)	442mm * 492mm * 266.2mm (height 6U)
routing	LPU supports BGP, OSPF, RIP Dynamic Routing Protocol Support Static Routing Support Agent ARP
Safety features	IP-Mac-Port-VID quad-binding IP source protection, DOS protection, port security 802.1x authentication, guest vlan Support Mac-IP-VLAN ID-Port-Port Four-yuan Bind support 802.1x authentication, RADIUS configuration support ARP protection, IP source Protection, DOS protection support port isolation, port security support SSL, SSH
ACL	supports L2 ~ L4 packet filter supports the time period-based ACL control support port, VLAN, POLICY
VLAN	support 802.1q VLAN, Mac VLAN, Private VLAN, protocol VLAN support VLAN VPN support Voice VLAN support GARP / GVRP
MAC address table	support 32K MAC Address Support Setting port maximum learning MAC address number address table display, static address table, dynamic address table, filter address table
Port management	port convergence, port monitoring, port speed storm suppression
Spanning tree	STP (802.1d), RSTP (802.1W), MSTP (802.1s) spanning tree security
Multicast	support IGMP V1/V2/V3 multicast VLAN, multicast address table, multicast filter
QoS	Each port supports 8 output queue support port, 802.1p, DSCP / TOS priority support EQU, SP, WRR, SP + WRR Four priority scheduling mode support Voice VLAN
DHCP	DHCP Server DHCP Relay DHCP Snooping
Convergence Management	support static aggregation support dynamic aggregation
System Management	supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2) SNMP V1/V2/V3 ( TP-LINK MIBS), national standard cluster management
system maintenance	supports LLDP Support Configuration Import Export and System Time Settings Ring Backup Detection, Cable Detection, PING, Tracert Detection Display / Filter System Log, Log Server
Maximum number of manageable APs	1000 sets
Maximum number of SSIDs supported	1000 (support Chinese SSID)
wireless function	Wireless network unified configuration DHCP server Layer 2 fast roaming automatic channel adjustment linear power adjustment Prohibits weak signal client access and kicking weak signal client
Wireless security	64/128/152 Bit WEP Encryption, WPA-PSK / WPA2-PSK (AES / TKTP), WPA / WPA2 Security Mechanism SSID Isolation, the internal isolation of the AP SSID and TAG VLAN mapping
AP management	AP automatically discovery, unified configuration and management intelligent roaming, automatic radio frequency tuning AP timing restart, AP software automatically uniform upgrade Load balancing based on access users
verification method	SMS authentication, Mac authentication Portal authentication: local portal, remote pos
Authentication server	local server, radius
