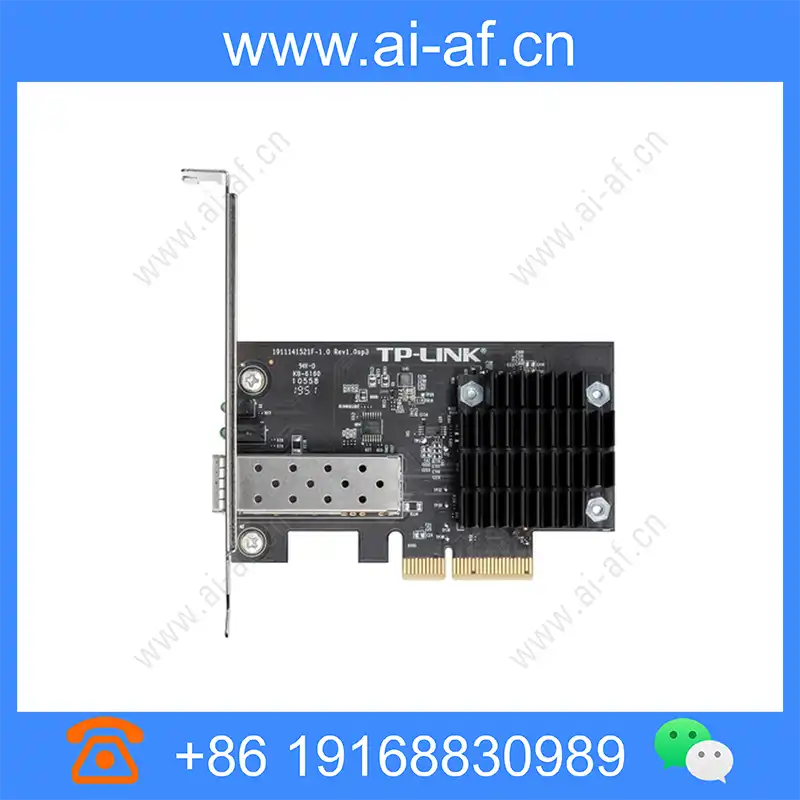

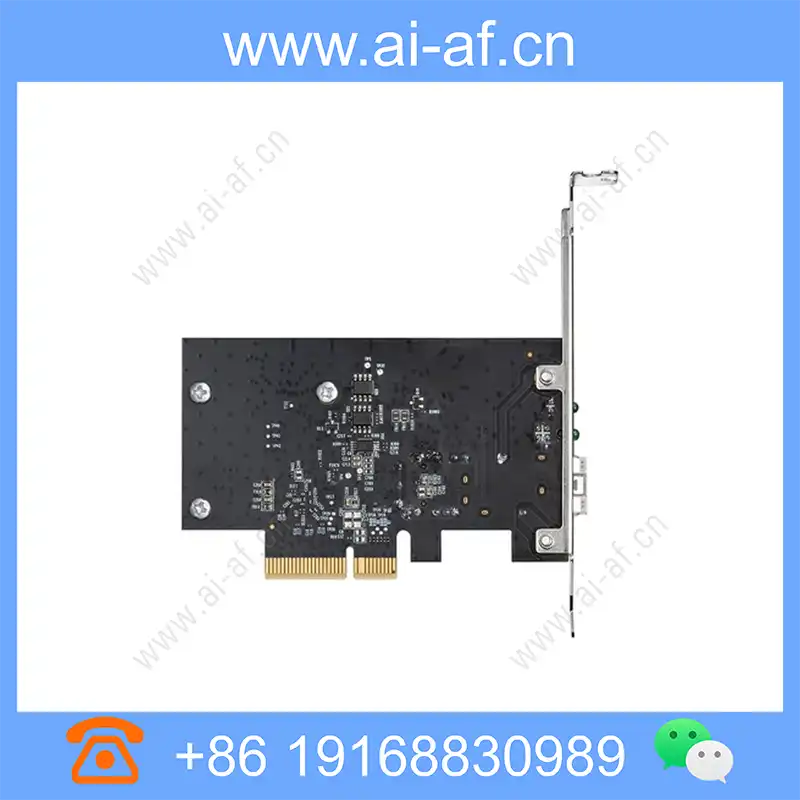

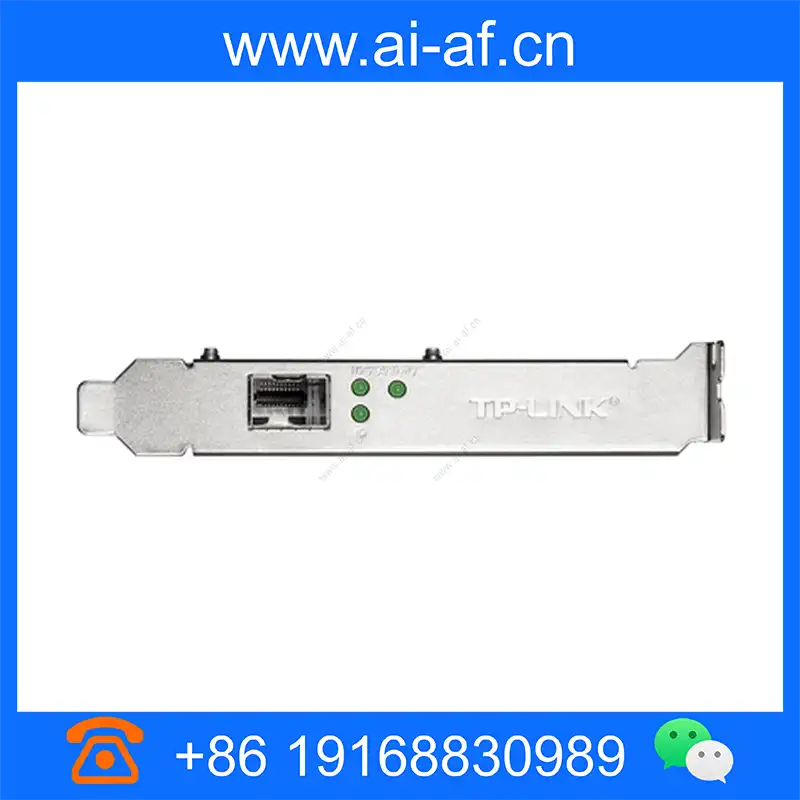

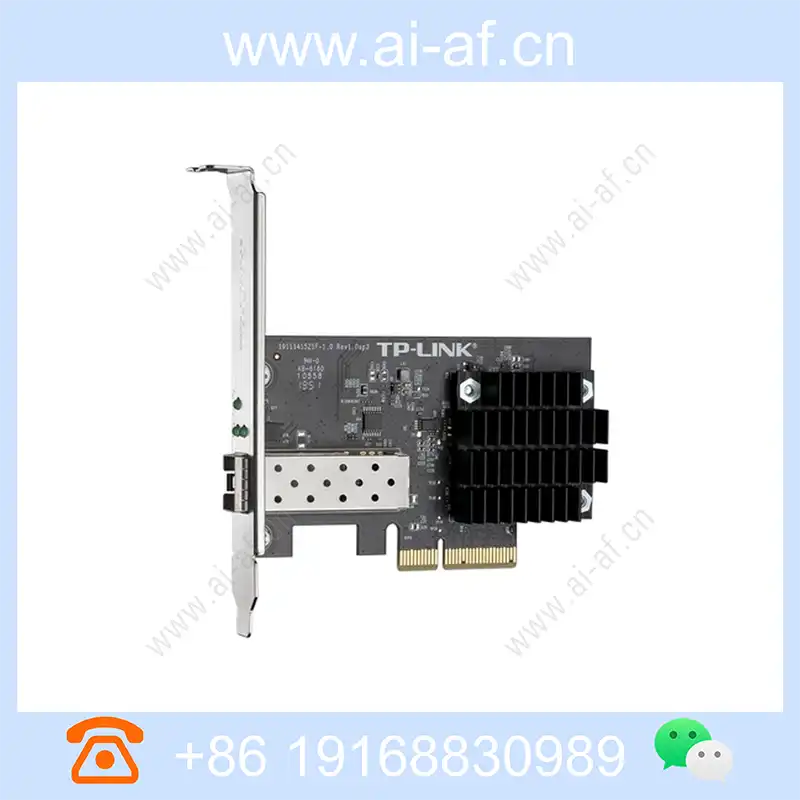

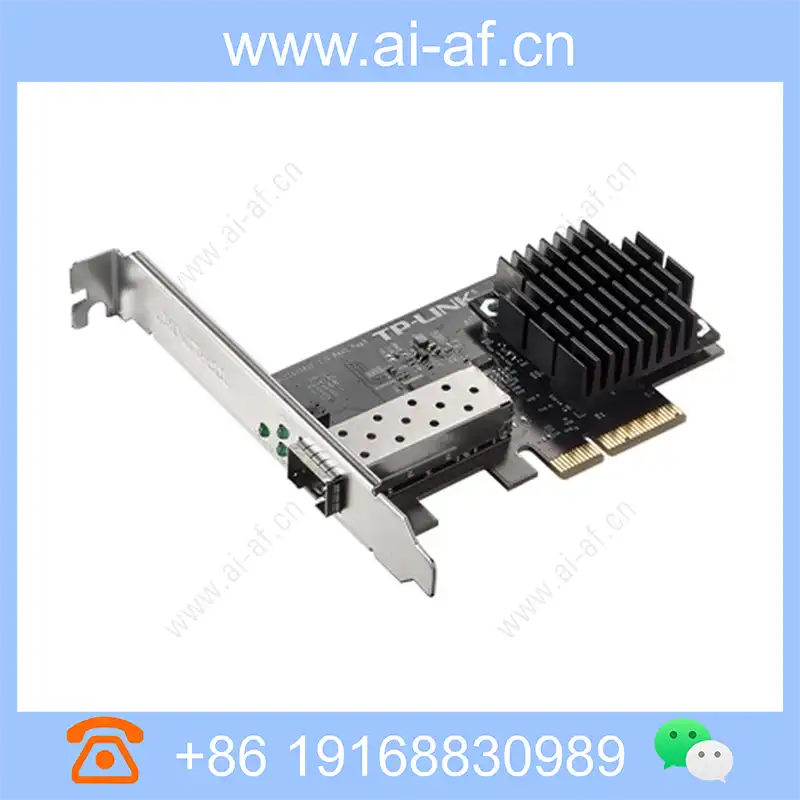

TP-LINK TL-NT521F 10 Gigabit PCIe NIC

Brand: TP-LINK

Model: TL-NT521F

Provide 10G SFP+ interface New generation PCI Express (PCIe) bus interface, data transmission is more efficient Support mainstream operating systems such as Windows 7/8/10, Windows Server, Linux Support Wake On LAN function Recommended with TP-LINK homemade Waguang module: TL-SM512LS-10km, TL-SM512LM-300M 10 Gigabit speed The TL-NT521F provides 10G SFP+ interfaces that implement the 10 Gigabit network to the desktop, ideal for improving network performance. PCIe interface TL-NT521F supports PCIe 3.0 bus interface, data transmission is more efficient, and it takes up less space. Good compatibility TL-NT521F is compatible with common operating systems, including 32/64-bit systems of Windows 7, 8, 8.1, 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, Linux system, and drivers. Easy to use

Product Features

Provide 10G SFP+ interface
New generation PCI Express (PCIe) bus interface, data transmission is more efficient
Support mainstream operating systems such as Windows 7/8/10, Windows Server, Linux
Support Wake On LAN function
Recommended with TP-LINK homemade Waguang module: TL-SM512LS-10km, TL-SM512LM-300M

10 Gigabit speed

The TL-NT521F provides 10G SFP+ interfaces that implement the 10 Gigabit network to the desktop, ideal for improving network performance.

PCIe interface

TL-NT521F supports PCIe 3.0 bus interface, data transmission is more efficient, and it takes up less space.

Good compatibility

TL-NT521F is compatible with common operating systems, including 32/64-bit systems of Windows 7, 8, 8.1, 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, Linux system, and drivers.

Easy to use

The TL-NT521F is convenient to use it, just insert it to the corresponding PCIe slot, install the appropriate driver to use.

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE 802.3ae, IEEE 802.3z, IEEE 802.1q, IEEE 802.1p, IEEE 802.3x support PCIe 3.0 bus standard and compatible with previous versions
interface	Support 1 10G SFP+ port
LED	10G indicator, 1G indicator
Software function	Wake on LAN function compatible with Windows 7, 8, 8.1, 10 32/64 bit, Windows Server 2008, 2012, 2016, 2019 32/64 bit, Linux system, FreeBSD
Packaging accessories	Installation Guide CD
Use environment	Operating temperature: 0°C to 55°C; Storage temperature: -40°C to 70°C; Operating humidity: 10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing
