TP-LINK TL-NS8803 multi-service intelligent routing switch

Brand: TP-LINK

Model: TL-NS8803

Dimensions: 442mm x 492mm x 266.20mm

Provide 2 power modules, support hot swap and redundant backup Supports 2 service routing units, supports dual-system hot backup and load sharing modes Support 3 service boards, 2 kinds of service boards are optional (TL-ST8026F-LPU, TL-SH8452F-LPU) Built-in TP-LINK network equipment management function, automatically manage TP-LINK commercial network equipment The service routing unit has built-in AC function, which can manage 1000 TP-LINK APs Support TP-LINK commercial cloud platform management *The picture on the left full of business boards is for illustration only, the actual delivery needs to purchase the business board and business routing unit separately per TL-NS8803

Support 3 service board slots (need to purchase TL-ST8026F-LPU, TL-SH8452F-LPU separately)
Support

Product Features

Provide 2 power modules, support hot swap and redundant backup
Supports 2 service routing units, supports dual-system hot backup and load sharing modes
Support 3 service boards, 2 kinds of service boards are optional (TL-ST8026F-LPU, TL-SH8452F-LPU)
Built-in TP-LINK network equipment management function, automatically manage TP-LINK commercial network equipment
The service routing unit has built-in AC function, which can manage 1000 TP-LINK APs
Support TP-LINK commercial cloud platform management

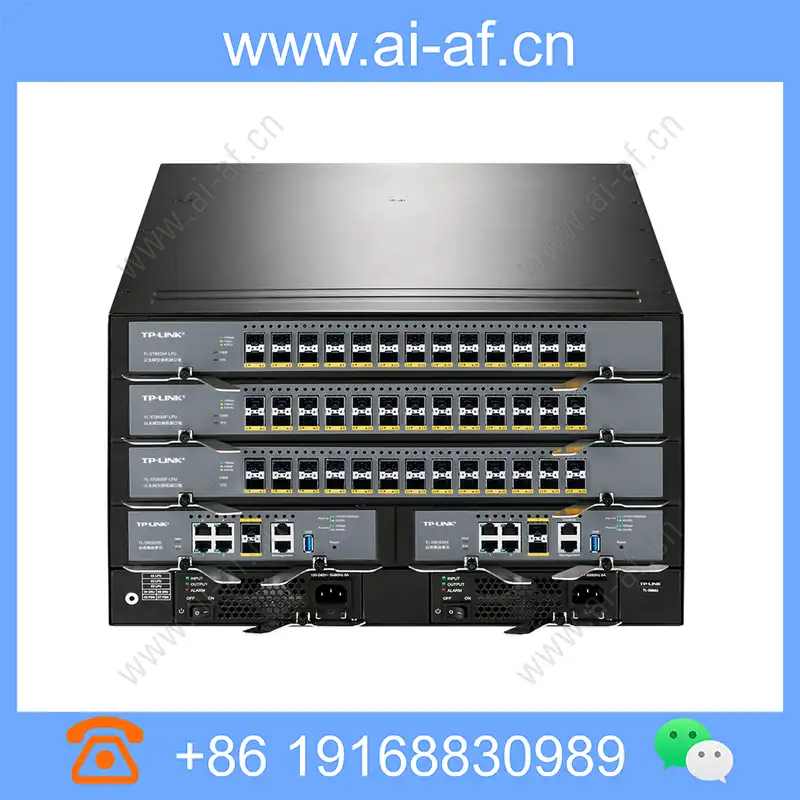

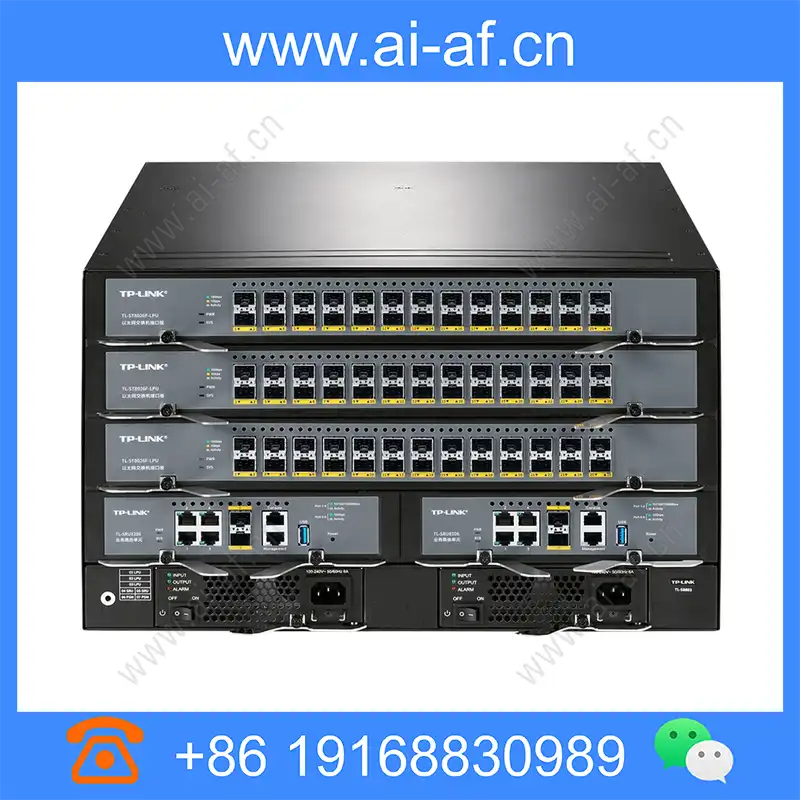

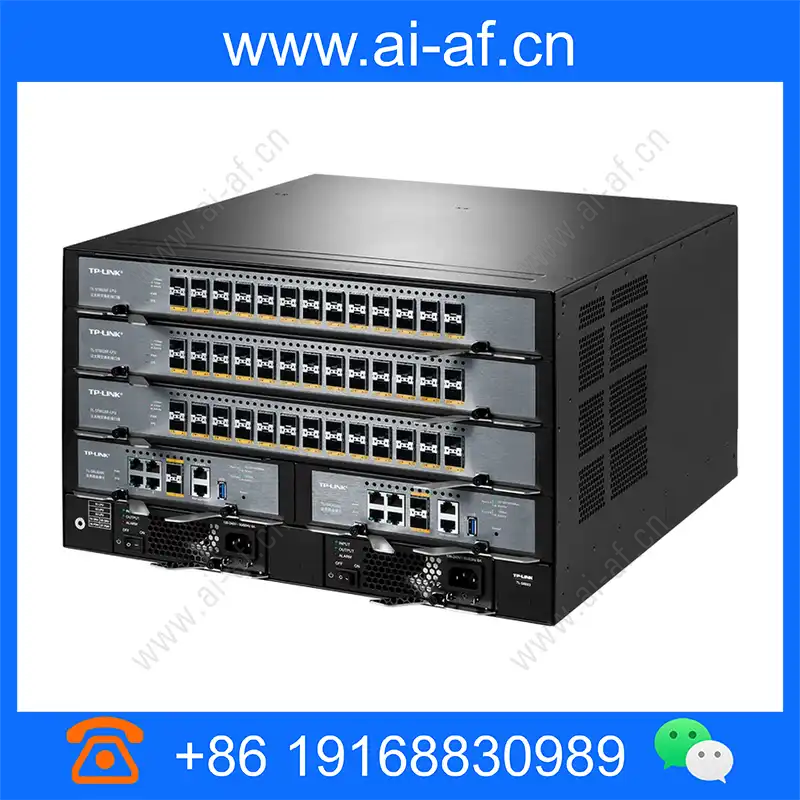

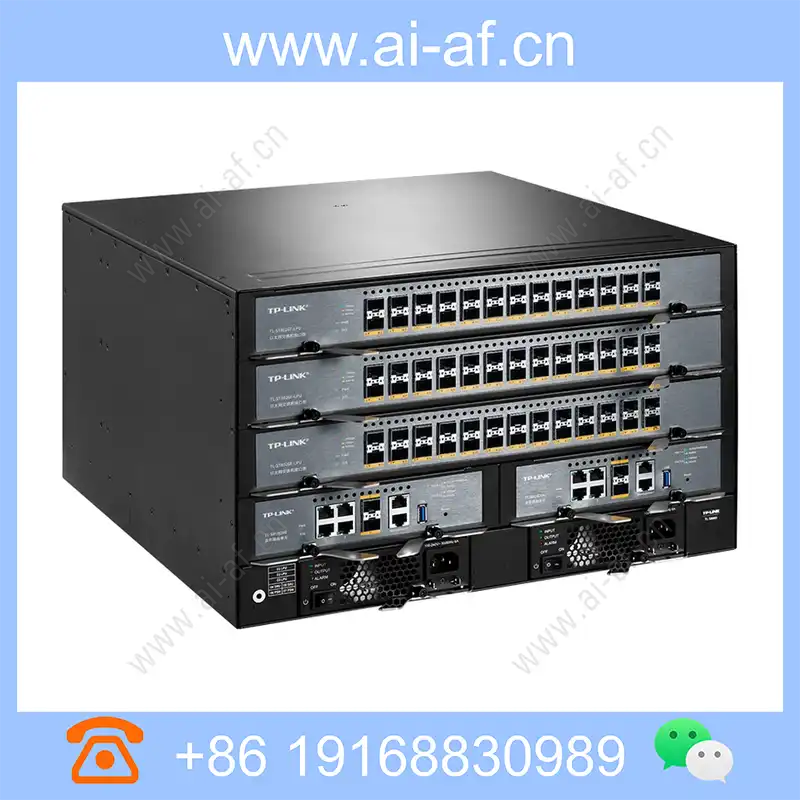

*The picture on the left full of business boards is for illustration only, the actual delivery needs to purchase the business board and business routing unit separately

Technical Specifications

Property Description	Property Value
per TL-NS8803	Support 3 service board slots (need to purchase TL-ST8026F-LPU, TL-SH8452F-LPU separately) Support 2 routing unit board slots (need to purchase TL-SRU8206 separately) , at least one optional) 2 TL-PSM800-ACs are standard
Each TL-ST8026F-LPU	26 10G SFP+ ports
Exchange capacity	432Gbps/8.25Tbps
Packet forwarding rate	144Mpps/1547Mpps
Indicator light	port status indicator, power supply, system status indicator
performance	Storage Forward support 32K MAC address table depth
Input power	100-240V~ 50/60Hz
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
Dimensions (L x W x H)	442mm * 492mm * 266.2mm (height 6U)
routing	LPU supports BGP, OSPF, RIP Dynamic Routing Protocol Support Static Routing Support Agent ARP
Safety features	IP-Mac-Port-VID quad-binding IP source protection, DOS protection, port security 802.1x authentication, guest vlan Support Mac-IP-VLAN ID-Port-Port Four-yuan Bind support 802.1x authentication, RADIUS configuration support ARP protection, IP source Protection, DOS protection support port isolation, port security support SSL, SSH
ACL	supports L2 ~ L4 packet filter supports the time period-based ACL control support port, VLAN, POLICY
VLAN	support 802.1q VLAN, Mac VLAN, Private VLAN, protocol VLAN support VLAN VPN support Voice VLAN support GARP / GVRP
MAC address table	support 32K MAC Address Support Setting port maximum learning MAC address number address table display, static address table, dynamic address table, filter address table
Port management	port convergence, port monitoring, port speed storm suppression
Spanning tree	STP (802.1d), RSTP (802.1W), MSTP (802.1s) spanning tree security
Multicast	support IGMP V1/V2/V3 multicast VLAN, multicast address table, multicast filter
QoS	Each port supports 8 output queue support port, 802.1p, DSCP / TOS priority support EQU, SP, WRR, SP + WRR Four priority scheduling mode support Voice VLAN
DHCP	DHCP Server DHCP Relay DHCP Snooping
Convergence Management	support static aggregation support dynamic aggregation
System Management	supports WEB management based on HTTP, SSL (V2 / V3 / TLSV1), CLI management based on Telnet, Console, SSH (V1 / V2) SNMP V1/V2/V3 ( TP-LINK MIBS), national standard cluster management
system maintenance	supports LLDP Support Configuration Import Export and System Time Settings Ring Backup Detection, Cable Detection, PING, Tracert Detection Display / Filter System Log, Log Server
Maximum number of manageable APs	1000 sets
Maximum number of SSIDs supported	1000 (support Chinese SSID)
wireless function	Wireless network unified configuration DHCP server Layer 2 fast roaming automatic channel adjustment linear power adjustment Prohibits weak signal client access and kicking weak signal client
Wireless security	64/128/152 Bit WEP Encryption, WPA-PSK / WPA2-PSK (AES / TKTP), WPA / WPA2 Security Mechanism SSID Isolation, the internal isolation of the AP SSID and TAG VLAN mapping
AP management	AP automatically discovery, unified configuration and management intelligent roaming, automatic radio frequency tuning AP timing restart, AP software automatically uniform upgrade Load balancing based on access users
verification method	SMS authentication, Mac authentication Portal authentication: local portal, remote pos
Authentication server	local server, radius
Network Management	Support SDN controller function Can manage up to 1000 network devices
