TP-LINK TL-TR905 Industrial Grade Industrial Grade 4G Wireless Router

Brand: TP-LINK
Model: TL-TR905-Industrial-Grade
Dimensions: 116mm x 76mm x 26mm

Support LTE/WCDMA/GSM mobile communication protocol, support advanced LTE Cat4 technology Support 4G full Netcom, insert the card (nano-SIM) to connect to the Internet Adapt to the harsh industrial working environment at -40℃~+75℃ IEC/EN 61000-4 high standard industrial grade protection design, adapt to harsh environment Support RS-232/422/485 standard communication serial port protocol, support TCP Sever, TCP Client, UDP working mode Support to open 2.4GHz Wi-Fi, provide wireless access to peripheral devices Compact steel body, exquisite and beautiful, durable and efficient heat dissipation Standard DIN rail/wall-mounted installation, easy maintenance Support centralized management of TP-LINK commercial network cloud platform Product model

  • TL-TR905 Industrial Grade

Product Features

  • Support LTE/WCDMA/GSM mobile communication protocol, support advanced LTE Cat4 technology
  • Support 4G full Netcom, insert the card (nano-SIM) to connect to the Internet
  • Adapt to the harsh industrial working environment at -40℃~+75℃
  • IEC/EN 61000-4 high standard industrial grade protection design, adapt to harsh environment
  • Support RS-232/422/485 standard communication serial port protocol, support TCP Sever, TCP Client, UDP working mode
  • Support to open 2.4GHz Wi-Fi, provide wireless access to peripheral devices
  • Compact steel body, exquisite and beautiful, durable and efficient heat dissipation
  • Standard DIN rail/wall-mounted installation, easy maintenance
  • Support centralized management of TP-LINK commercial network cloud platform

Technical Specifications

Property DescriptionProperty Value
Product model
  • TL-TR905 Industrial Grade
Installation method
  • standard rail / wall installation
  • Distribution DIN rail buckle
size
  • 116 x 76 x 26 mm (excluding antenna part)
  • steel housing
4G/3G
  • LTE-FDD: Upstream 51.02Mbps / Downstream 150.75 Mbps
  • LTE-TDD: Upstream 30.61Mbps / Downlink 131.61 Mbps
Wi-Fi
  • 2.4GHz 150Mbps (the function is enabled on the page, if you need 4G to work in the speed-up mode, it is recommended to turn off Wi-Fi)
port
  • 2 10/100Mbps RJ45 ports
  • 1 RS-232/422/485 DB9 serial port
  • 1 pair of DC terminal power supply ports (V+, V- )
  • 2 RP-SMA antenna ports
  • 1 ground port
  • 1 nano-SIM card slot (with rubber cover)
antenna
  • 2 external detachable 5dBi omnidirectional antennas, shipped from the factory
Antenna coverage angle
  • 4G/3G 360°
  • Wi-Fi 180°
Indicator light
  • 1 SYS system indicator
  • 2 LAN port indicators
  • 1 LTE status indicator
  • 1 Serial port indicator light
Button
  • 1 reset button
power supply
  • 9-48 VDC DC terminal block power supply
Maximum machine power consumption
  • 8.56W
Management method
  • web page Self-management
  • TP-LINK Commercial Network Cloud Platform Concentration Management
Use environment
  • operating temperature: -40°C ~ 75°C
  • Working humidity: 10% ~ 90% RH does not condense
  • storage temperature: -40°C ~ 85°C < / li>
  • storage humidity: 5% ~ 90% RH does not condense
wireless function
  • Quick Setup Wizard: Support
  • Enable/Disable Network: Support
  • VPN Function: Support IPSec, PPTP, L2TP
  • Wireless Encryption : WPA, WPA2, WPA-PSK, WPA2-PSK
  • Transmit power setting: support 1dBm linear adjustment
Serial function
  • support TCP Server, TCP Client, UDP Operation Mode
  • Support Baud Rate Setting
  • Support Serial RS-232/422/485 Protocol Settings
  • Support serial log function
System Management
  • device management: full Chinese Web Management
  • restore factory setting: Support
  • backup configuration: support
  • Import configuration: Support
  • software upgrade: support
  • ping watchdog: Support

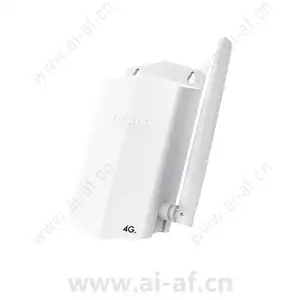

TP-LINK TL-TR901 4G to wired router three Netcom external LTE antenna outdoor waterproof and dustproof

TP-LINK TL-TR901 4G to wired router three Netcom external LTE antenna outdoor waterproof and dustproof

TP-LINK TL-TR960G 4G Wireless Router

TP-LINK TL-TR960G 4G Wireless Router

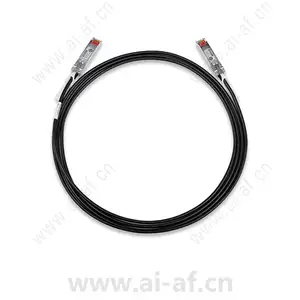

TP-LINK TL-TC532-1 10G SFP+ fiber jumper 1 meter long cable with optical modules at both ends

TP-LINK TL-TC532-1 10G SFP+ fiber jumper 1 meter long cable with optical modules at both ends

TP-LINK TL-U8 Game Live Switch

TP-LINK TL-U8 Game Live Switch

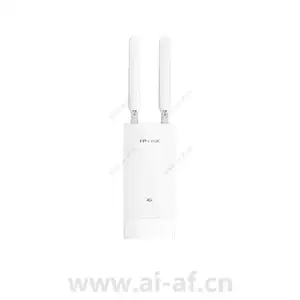

TP-LINK TL-TR903 Outdoor Waterproof 4G Router Monitoring Outdoor Engineering Applicable SupPort 4G All Netcom

TP-LINK TL-TR903 Outdoor Waterproof 4G Router Monitoring Outdoor Engineering Applicable SupPort 4G All Netcom

TP-LINK TL-TR906 Industrial Grade Industrial Grade 4G Wireless Router

TP-LINK TL-TR906 Industrial Grade Industrial Grade 4G Wireless Router

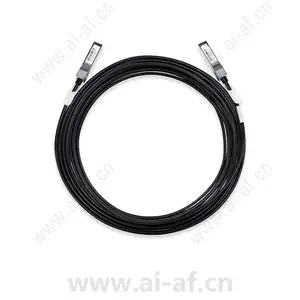

TP-LINK TL-TC532-3 10 Gigabit SFP+ optical fiber jumper 3 meters long cable with optical modules at both ends

TP-LINK TL-TC532-3 10 Gigabit SFP+ optical fiber jumper 3 meters long cable with optical modules at both ends

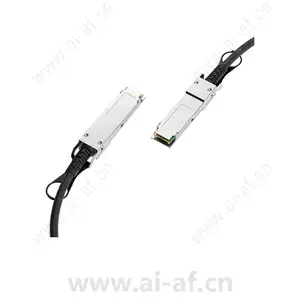

TP-LINK TL-TC752-1 1m 40G QSFP+ Cable
