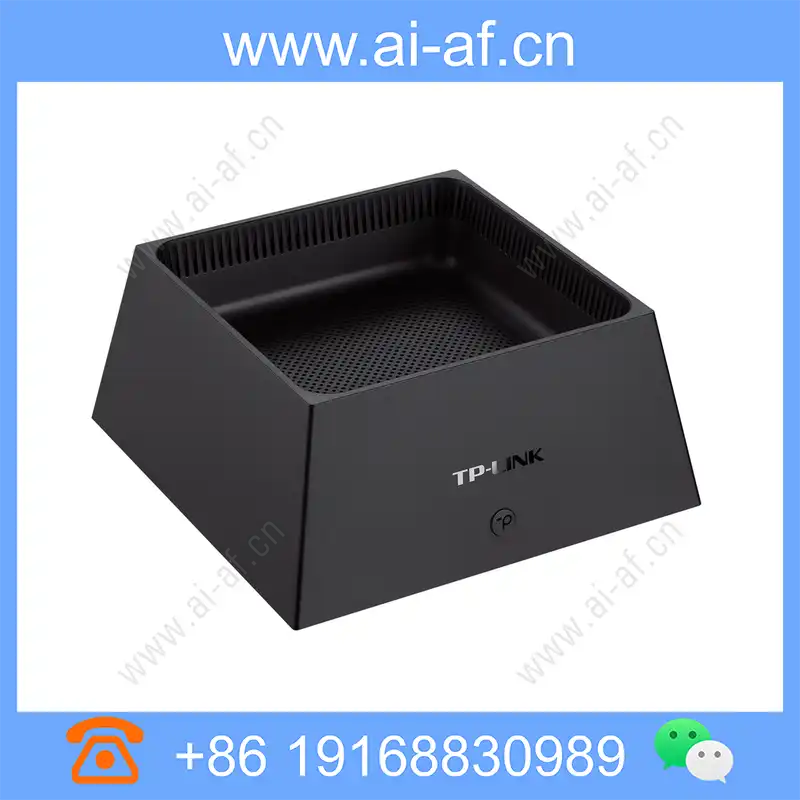

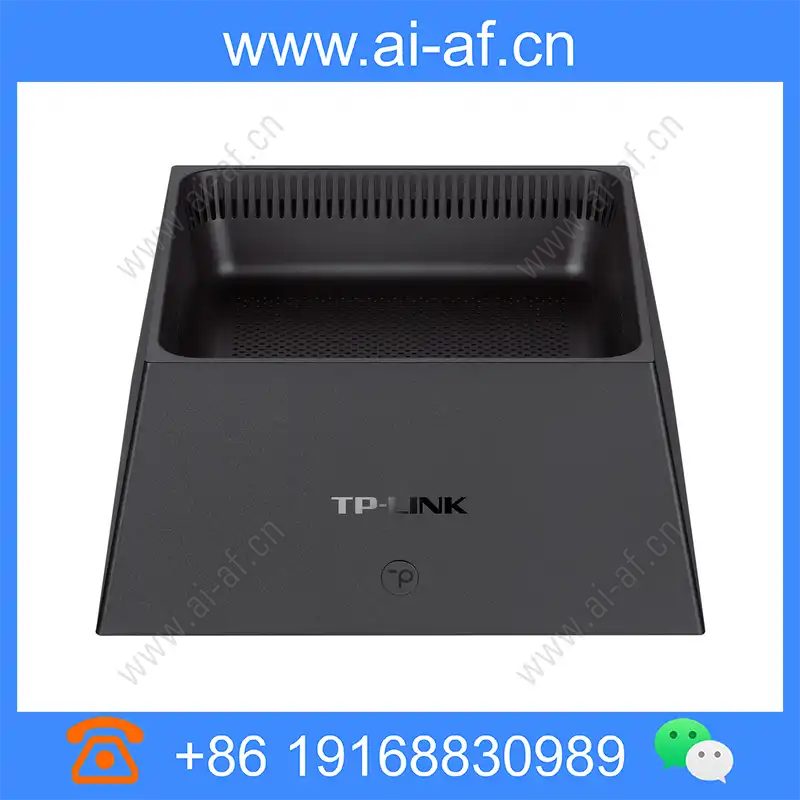

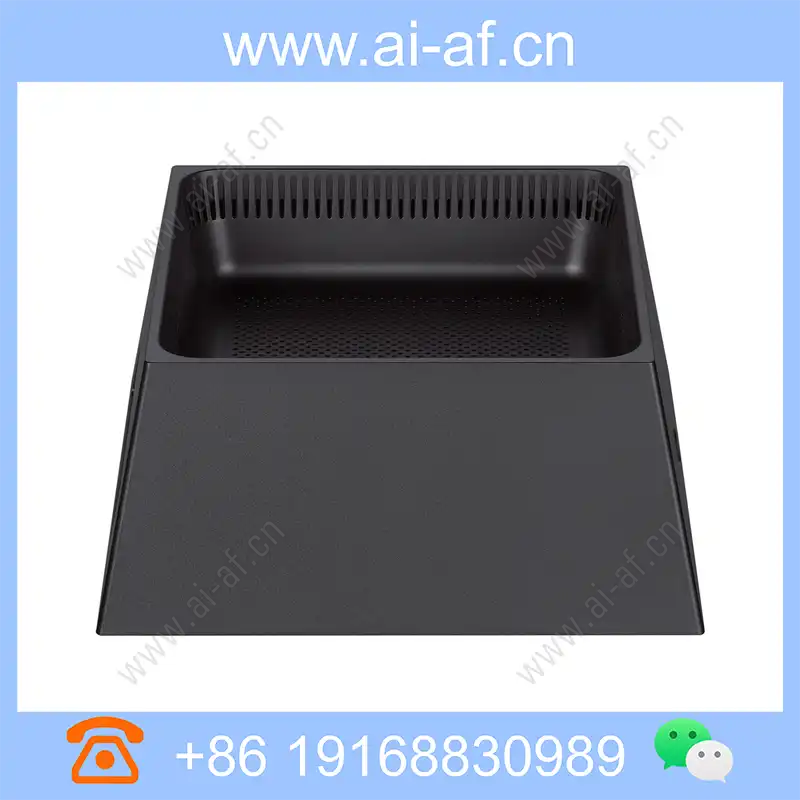

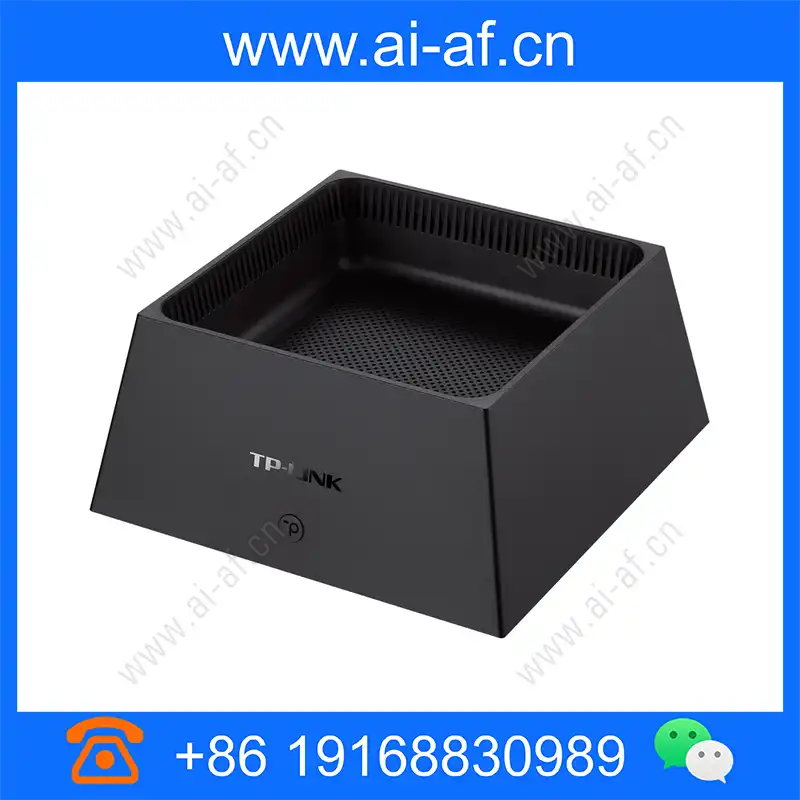

TP-LINK TL-XDR5450 Easy Exhibition Version AX5400 Dual Band Gigabit Wi-Fi 6 Wireless Router
Protocol standard
IEEE802.11a
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11ac
IEEE802.11ax
IEEE802.3
IEEE802.3u
IEEE802.3ab
2.4GHz band: 574Mbps
5GHz band: 4804Mbps

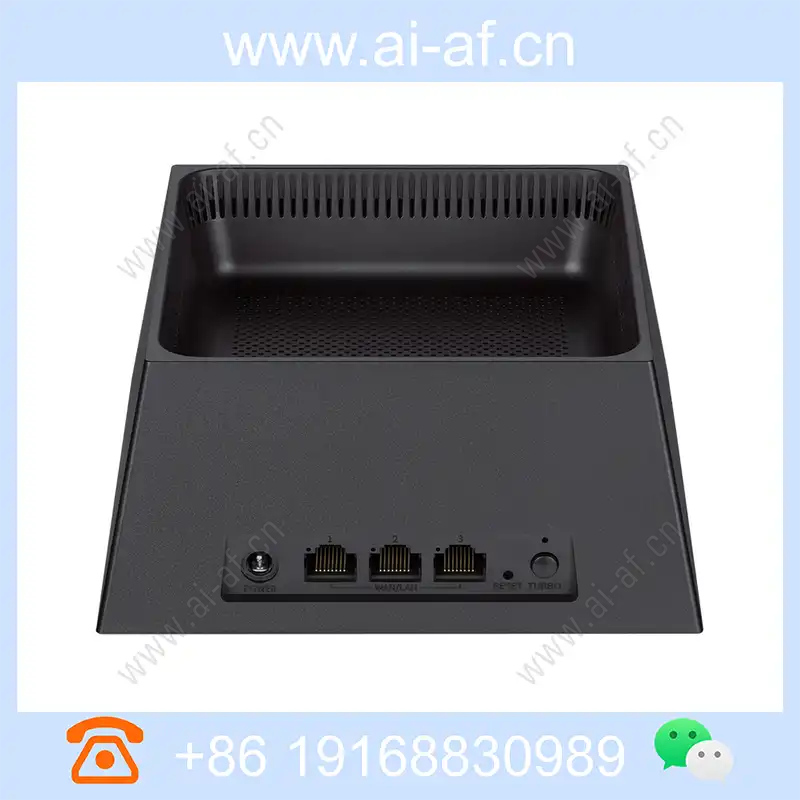

3 10/100m/1000M Adaptive WAN / LAN port, support automatic flip (Auto MDI / MDIX)
reset button
easy to-exhibition button
Turbo button
SYS system instructions
Each port link / ACT indicator
Built-in antenna
153mm*153mm*77.7mm
Wireless Setting
Visitor Network Settings
WAN Port Network Status
LAN Port
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.11ax IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 574Mbps 5GHz band: 4804Mbps |
| interface | 3 10/100m/1000M Adaptive WAN / LAN port, support automatic flip (Auto MDI / MDIX) |
| Button | reset button easy to-exhibition button Turbo button |
| LED | SYS system instructions Each port link / ACT indicator |
| antenna | Built-in antenna |
| size and weight | 153mm*153mm*77.7mm |
| network status | Wireless Setting Visitor Network Settings WAN Port Network Status LAN Port Network Status |
| Equipment management | device information Real-time network speed speed limit Internet time management Disable device |
| Application functions | Wireless Bridge Press Visitor Network Signal Adjustment IP and MAC Address Bind Administrator identity AP isolation virtual server DMZ host DDNS wireless device access control Wireless timing switch automatic cleaning |
| Advanced Features | TP-LINK ID information Internet setting wireless setting LAN port setting software upgrade Modify administrator password Backup and load configuration restart and restore factory system log |
| Packaging accessories | AX5400 dual-band Gigabit Wi-Fi 6 wireless router TL-XDR5450 easy-to-exhibit one piece Power adapter User manual Warranty Card Category Five |
| Use environment | operating temperature: 0° C to 40° C storage temperature: -40° C to 70° C Working humidity: 10% to 90% RH does not condense storage humidity: 5% to 90% RH does not condense |
