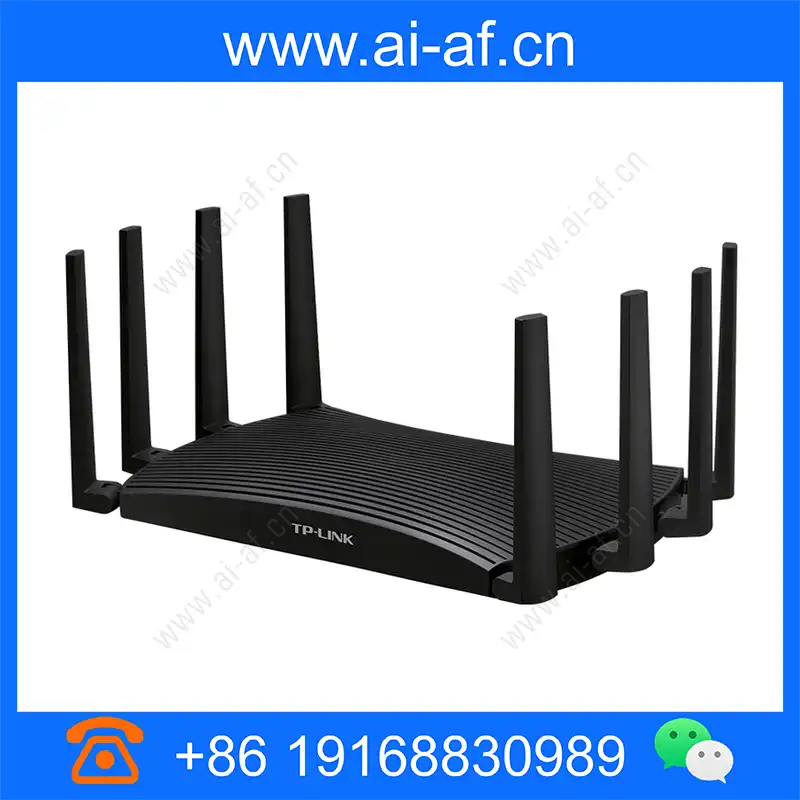

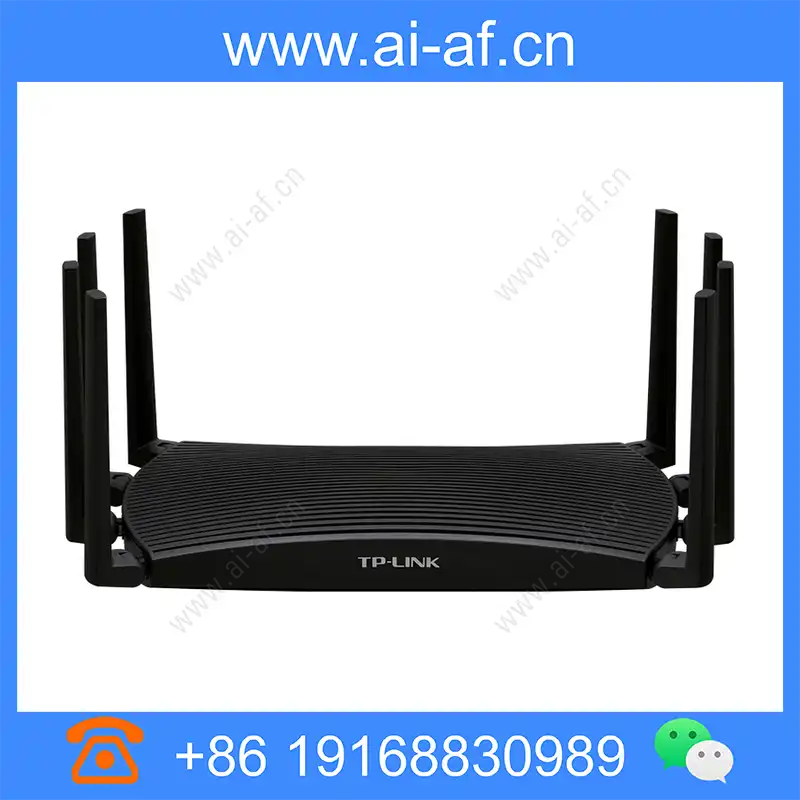

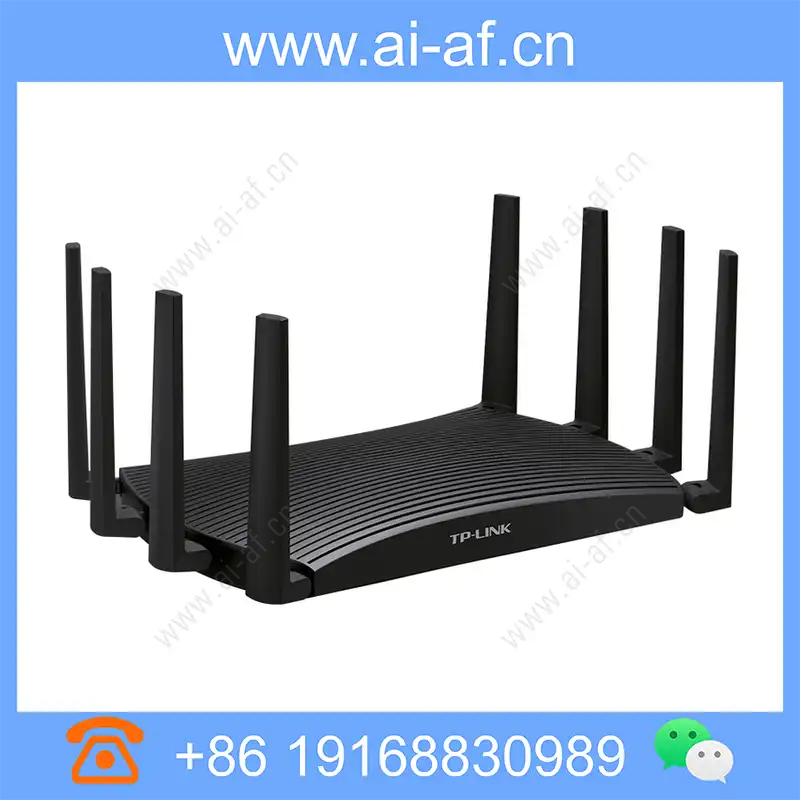

TP-LINK TL-XDR6070 Easy Exhibition Version AX6000 Dual Band Wi-Fi 6 Wireless Router (2.5G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
maximum radio rate 5952Mbps (2.4GHz 1148Mbps, 5GHz 4804Mbps)
beamforming ( Beamforming)
4 x 4 MU-MIMO
WMM: Based on priority data processing and forwarding
Wi-Fi multi-frequency one
Easy Exhibition Function
3 10/100/1000Mbps rate self-adaptive Ethernet ports, support WAN/LAN self-adaptation (blind port insertion)
1 2.5GE Ethernet port
Bare size (lengthxwidthxheight 313*213*153mm):
Package size (lengthxwidthxheight): 355.5*257.5*99.5mm
< p>Bare machine weight: 0.56kg (single machine, excluding accessories and packaging)Whole machine weight: 1.24kg (single machine, including accessories and
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol maximum radio rate 5952Mbps (2.4GHz 1148Mbps, 5GHz 4804Mbps) beamforming ( Beamforming) 4 x 4 MU-MIMO WMM: Based on priority data processing and forwarding Wi-Fi multi-frequency one Easy Exhibition Function |

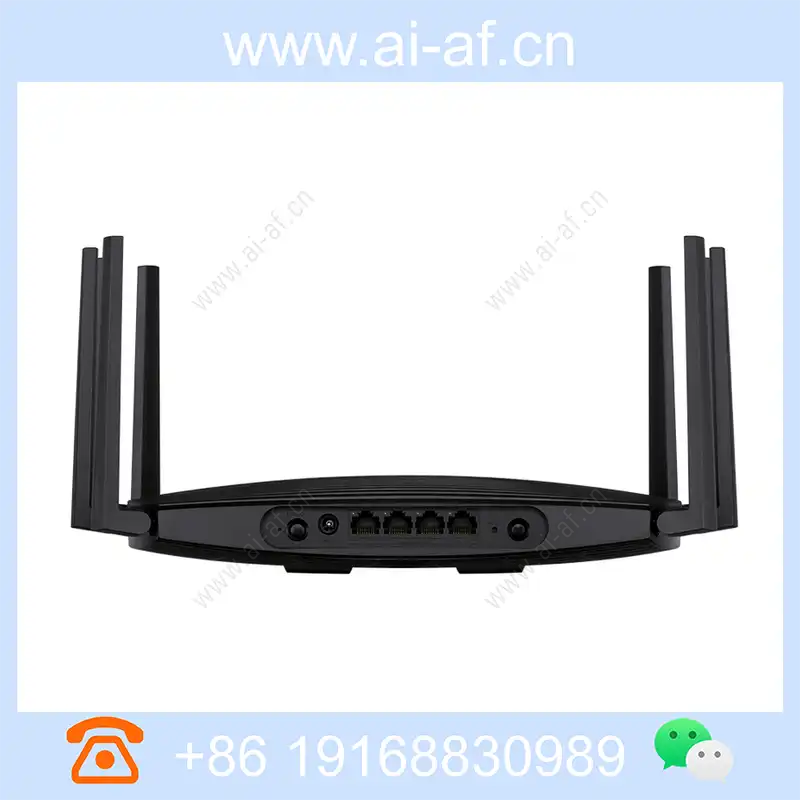

| Ethernet port | 3 10/100/1000Mbps rate self-adaptive Ethernet ports, support WAN/LAN self-adaptation (blind port insertion) 1 2.5GE Ethernet port |
| size and weight | Bare size (lengthxwidthxheight 313*213*153mm): Package size (lengthxwidthxheight): 355.5*257.5*99.5mm < p>Bare machine weight: 0.56kg (single machine, excluding accessories and packaging)Whole machine weight: 1.24kg (single machine, including accessories and packaging) |

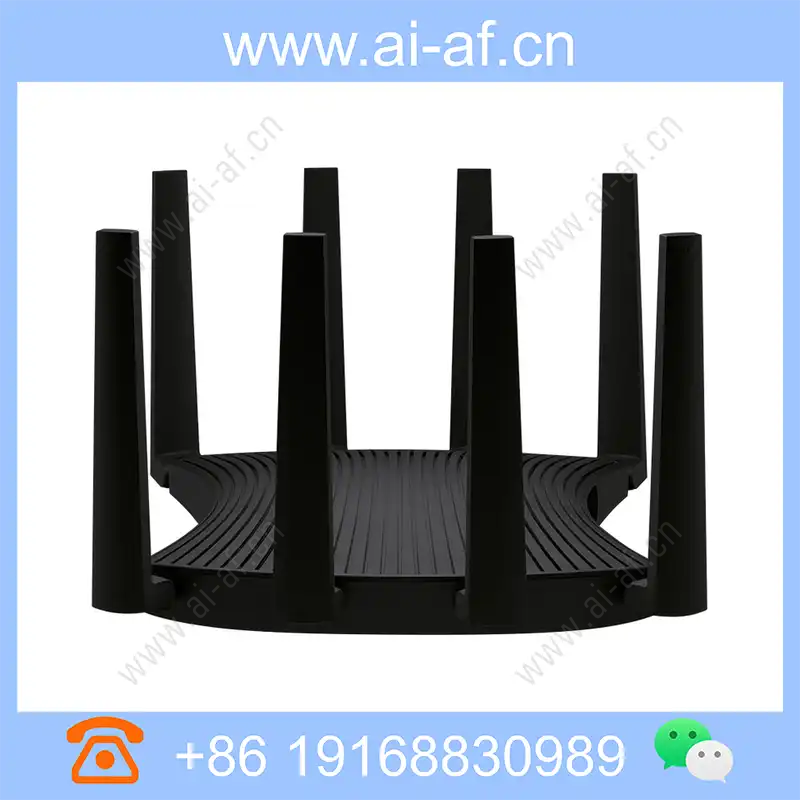

| Antenna type | External Whole Outer Outer Outer: 4 2.4G Antenna, 4 5G Antenna |
| Software function | Wireless Bridge P Signal Adjustment Terminal Manage IP and MAC Address Bind AP Isolated Virtual Server Dynamic domain name service (DDNS) DMZ host automatic cleaning wireless timing switch Local Online / Local Firmware / Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivered 12V/3A power adapter |
| packing list | 1 router 1 power adapter 12V/3A 1 network cable (1 meter) 1 quick installation guide 1 parameter record label |
