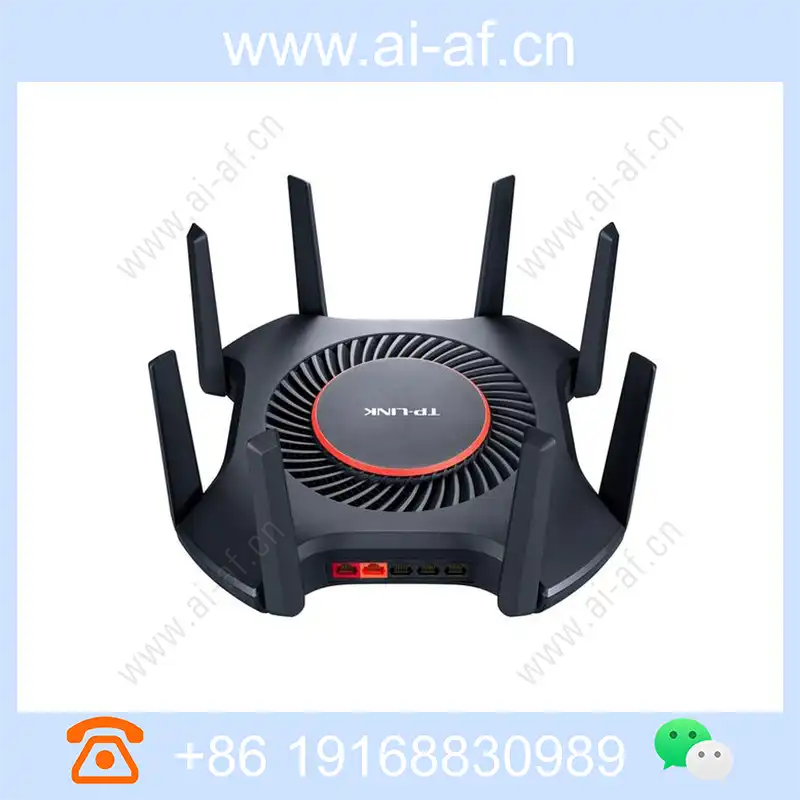

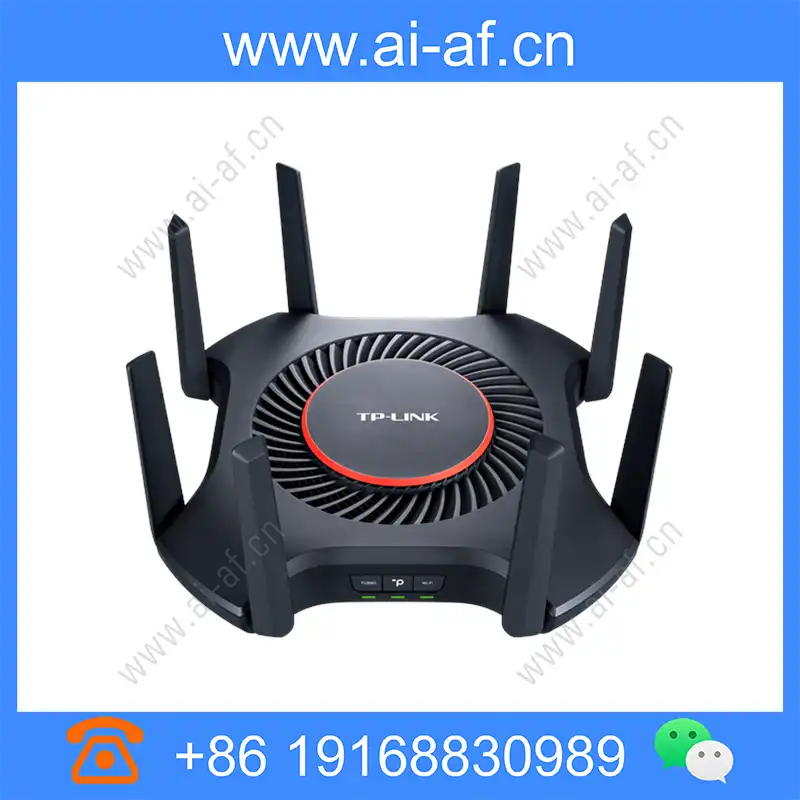

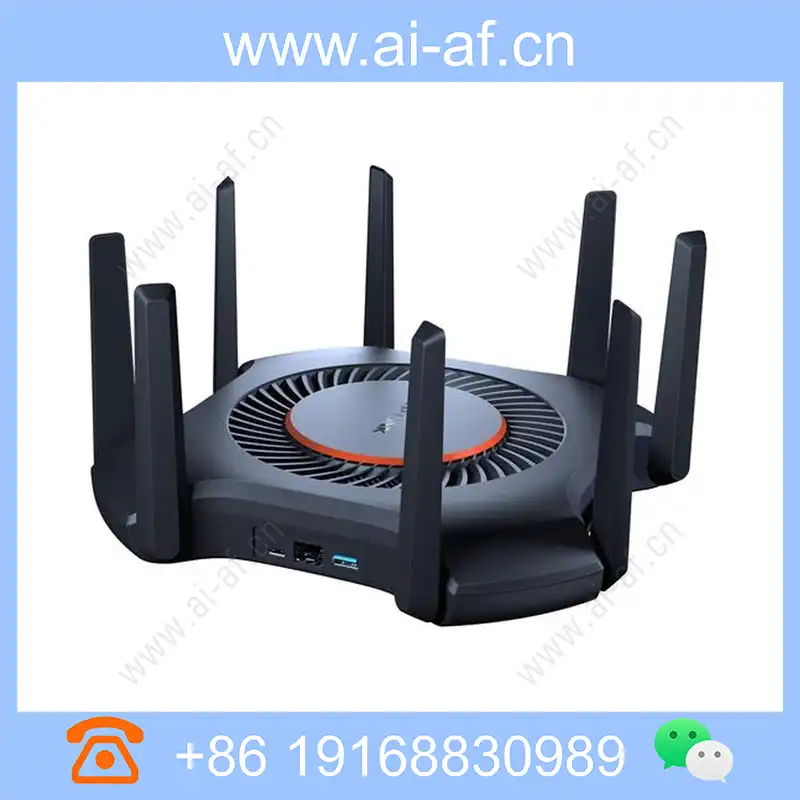

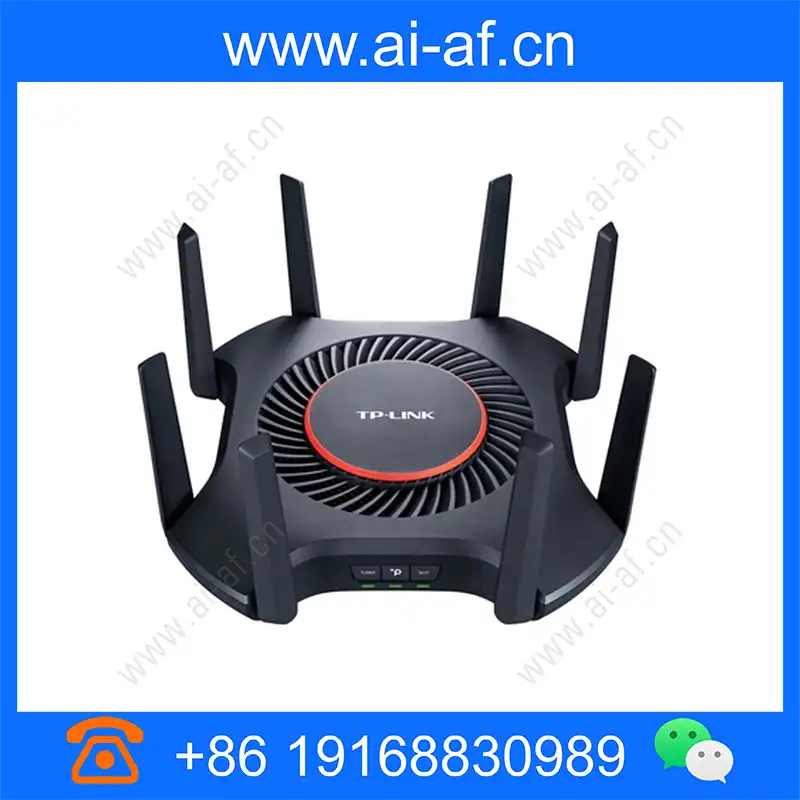

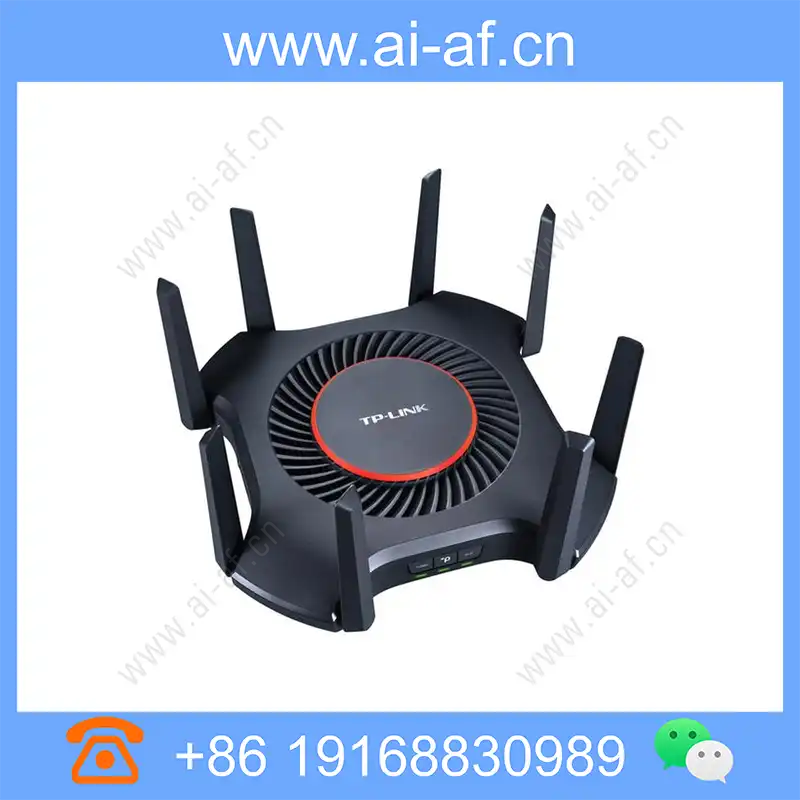

TP-LINK TL-XTR11060 Easy Exhibition Turbo Edition AX11000 Tri-band Optical Fiber Wi-Fi6 Wireless Router (2.5G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax Wireless Protocol
maximum radio rate 8353Mbps (2.4GHz 1148Mbps, 5GHz frequency band 1 4804Mbps, 5GHz band 2 2401Mbps)
beamforming
4 x 4 MU-MIMO
WMM: Data Processing and Forwarding
Wi-Fi Based on Priority Frequent 1
Easy Exhibition Function
3 10/100/1000Mbps rate adaptive LAN port, 1 10/100/1000Mbps rate adaptive WAN / LAN adaptive port; 1 2.5Gbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network mouth blind plug); 1 Gigabit fiber port
2 USB 3.0 port
Naked Machine (length x width x height): 287 x 287 x 153mm
packaging size (length x width x height): 342.5 * 342.5
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax Wireless Protocol maximum radio rate 8353Mbps (2.4GHz 1148Mbps, 5GHz frequency band 1 4804Mbps, 5GHz band 2 2401Mbps) beamforming 4 x 4 MU-MIMO WMM: Data Processing and Forwarding Wi-Fi Based on Priority Frequent 1 Easy Exhibition Function |
| Ethernet port | 3 10/100/1000Mbps rate adaptive LAN port, 1 10/100/1000Mbps rate adaptive WAN / LAN adaptive port; 1 2.5Gbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network mouth blind plug); 1 Gigabit fiber port |
| USB port | 2 USB 3.0 port |
| size and weight | Naked Machine (length x width x height): 287 x 287 x 153mm packaging size (length x width x height): 342.5 * 342.5 * 217.5mm Naked Machine Weight: 1.294kg (single, excluding accessories, packaging) Machine weight: 2.776kg (single, including accessories, packaging) |
| Antenna type | External Whole-directed Antenna: 4 Rates 2.4G & 5G Dual Frequency Antenna, 4 5G Antenna |
| Software function | Wireless Bridge P Signal Adjustment Terminal Manage IP and MAC Address Bind AP Isolated Virtual Server Dynamic domain name service (DDNS) DMZ host automatic cleaning wireless timing switch Local Online / Local Firmware / Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V / 4A power adapter |
| packing list | Router 1 Power Adapter 12V / 4A 1 Netline (1 m) 1 Quick Installation Guide 1 / p> parameter record label 1 photo |
