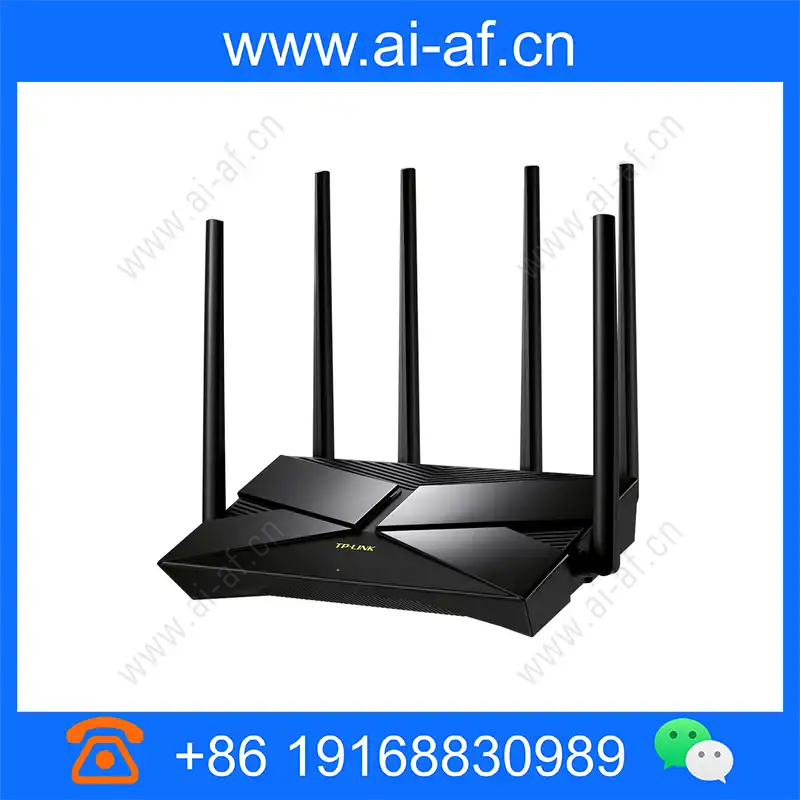

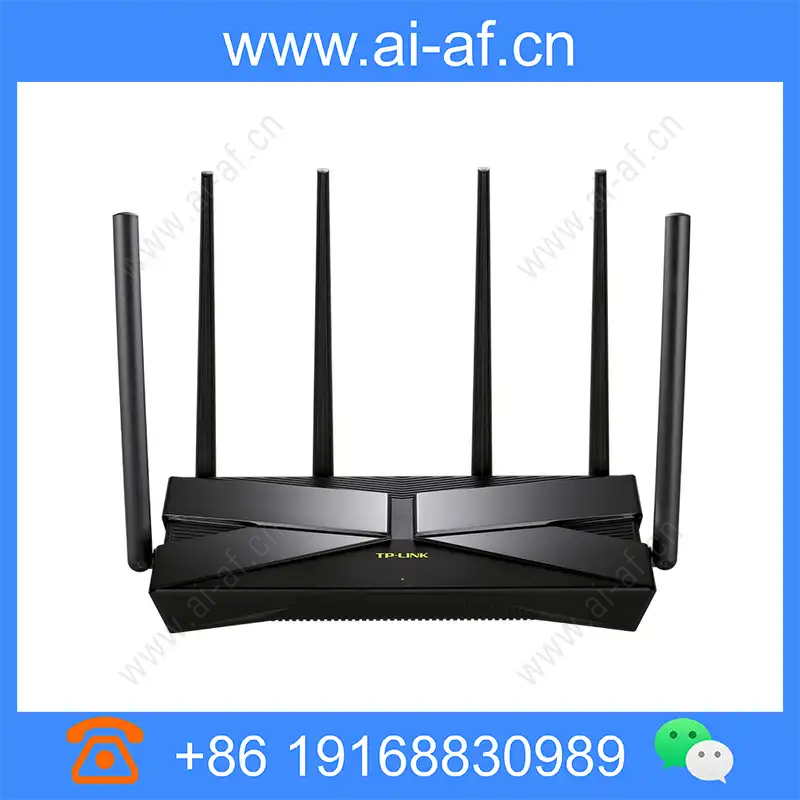

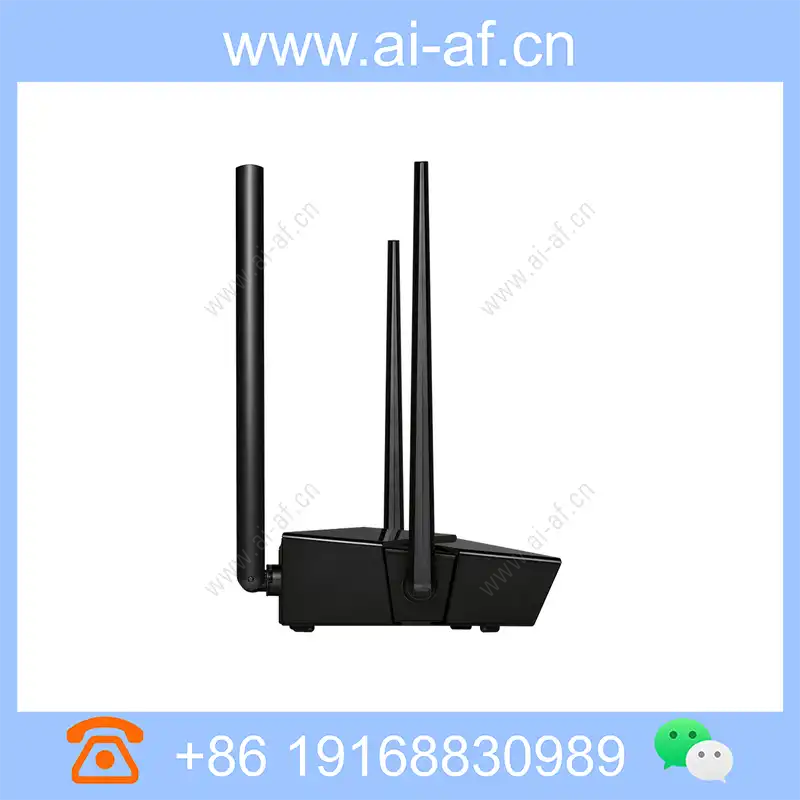

TP-LINK TL-XTR5460 Easy Exhibition Version AX5400 Tri-band Wi-Fi 6 Wireless Router (2.5G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
Maximum wireless rate 5378Mbps (2.4GHz 574Mbps, 5G1 2402Mbps, 5G2 2402Mbps*)
< p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHzBeamforming (Beamforming)
Wi-Fi multi-frequency integration
easy

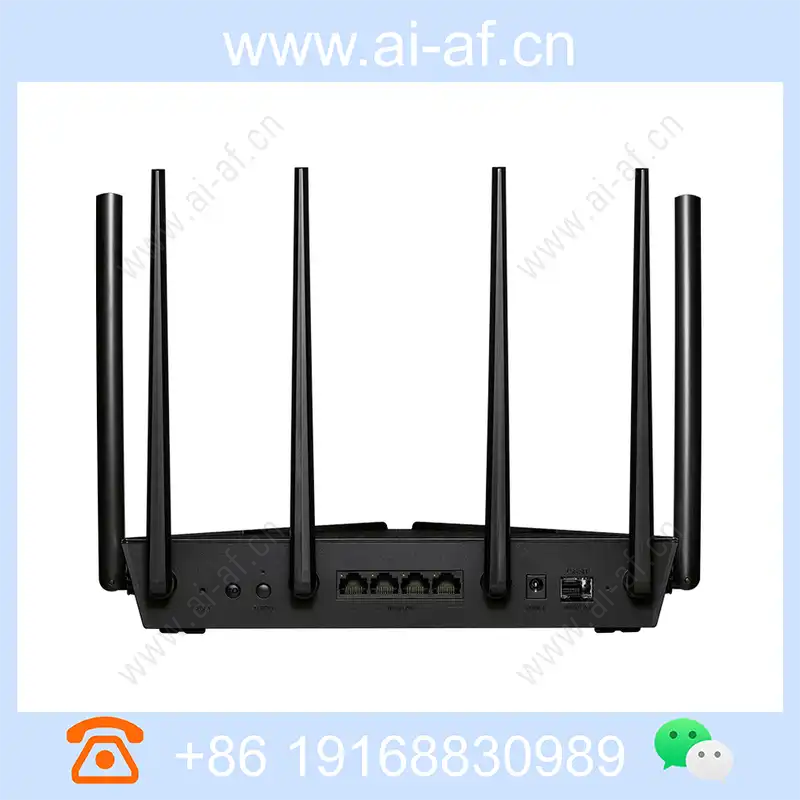

4 10/100/1000Mbps rate adaptive WAN / LAN adaptive port; 1 2.5Gbps rate adaptive SFP interface, support WAN / LAN adaptive (network port blind plug)
External All Outline: 2 2.4G Antenna, 4 5G Antenna
Signal Conditioning
Terminal Management
IP and MAC Address Binding
AP Isolation
Virtual Server< /p>
DDNS
DMZ
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol Maximum wireless rate 5378Mbps (2.4GHz 574Mbps, 5G1 2402Mbps, 5G2 2402Mbps*) < p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHzBeamforming (Beamforming) Wi-Fi multi-frequency integration easy |
| Ethernet port | 4 10/100/1000Mbps rate adaptive WAN / LAN adaptive port; 1 2.5Gbps rate adaptive SFP interface, support WAN / LAN adaptive (network port blind plug) |
| Antenna type | External All Outline: 2 2.4G Antenna, 4 5G Antenna |
| Software function | Signal Conditioning Terminal Management IP and MAC Address Binding AP Isolation Virtual Server< /p> DDNS DMZ host automatic cleaning wireless timer switch port customization band customization local online/local firmware/remote upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V / 2.5A power adapter |
| packing list | router 1 Power adapter 12V / 2.5A 1 network cable (1 m) 1 Quick Installation Guide 1 copy Parameter record label 1 photo |
| size | Length*width*height: 297*149.4*215.3mm |
