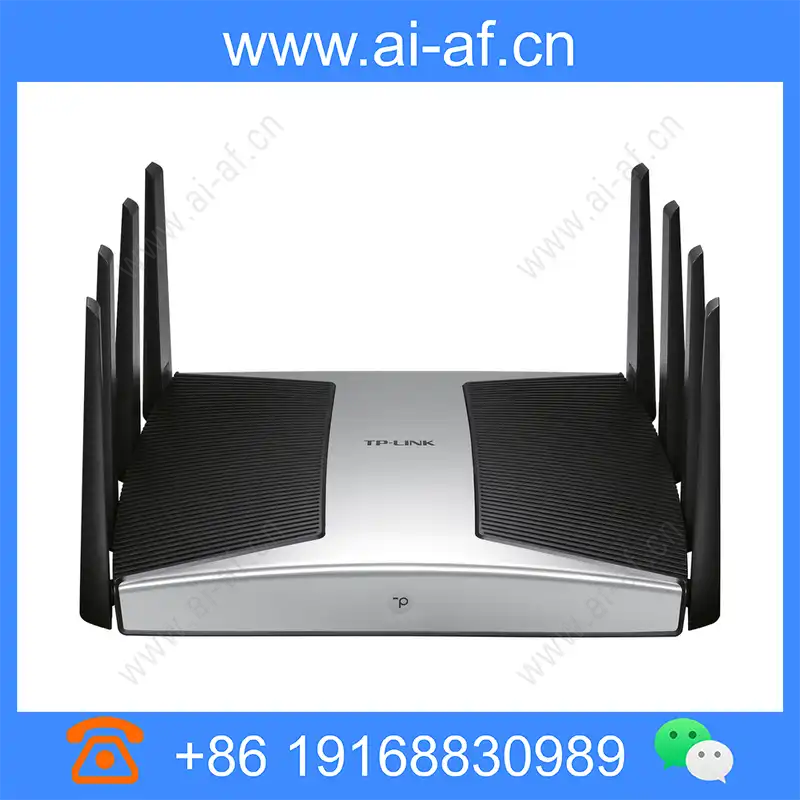

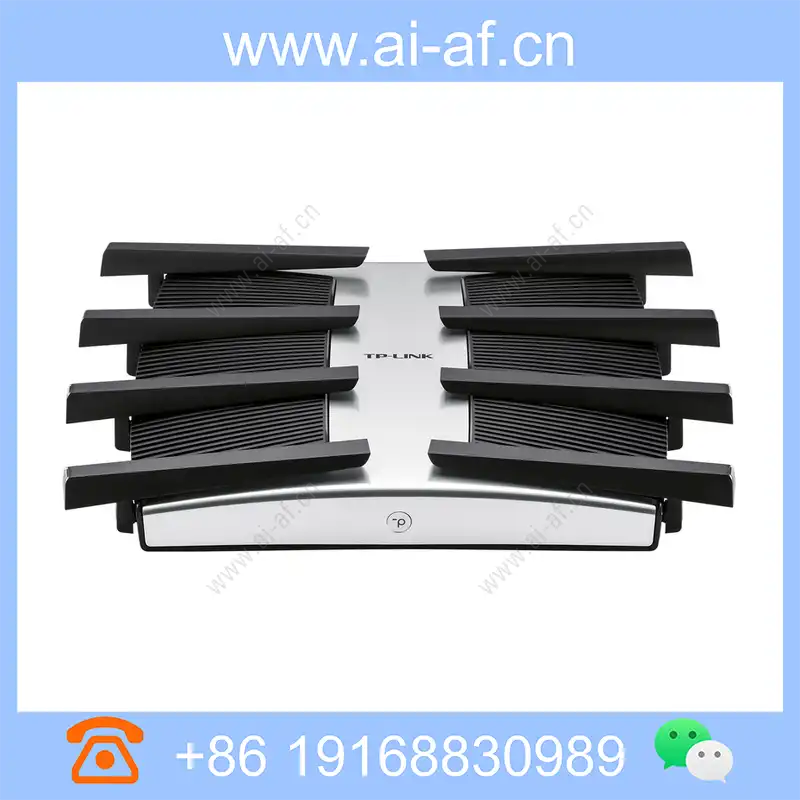

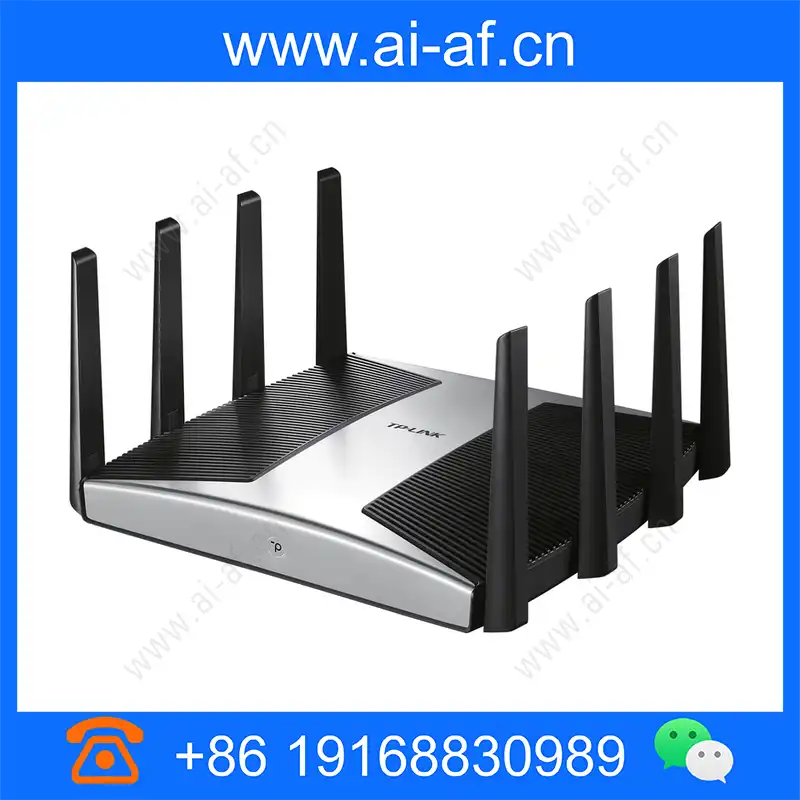

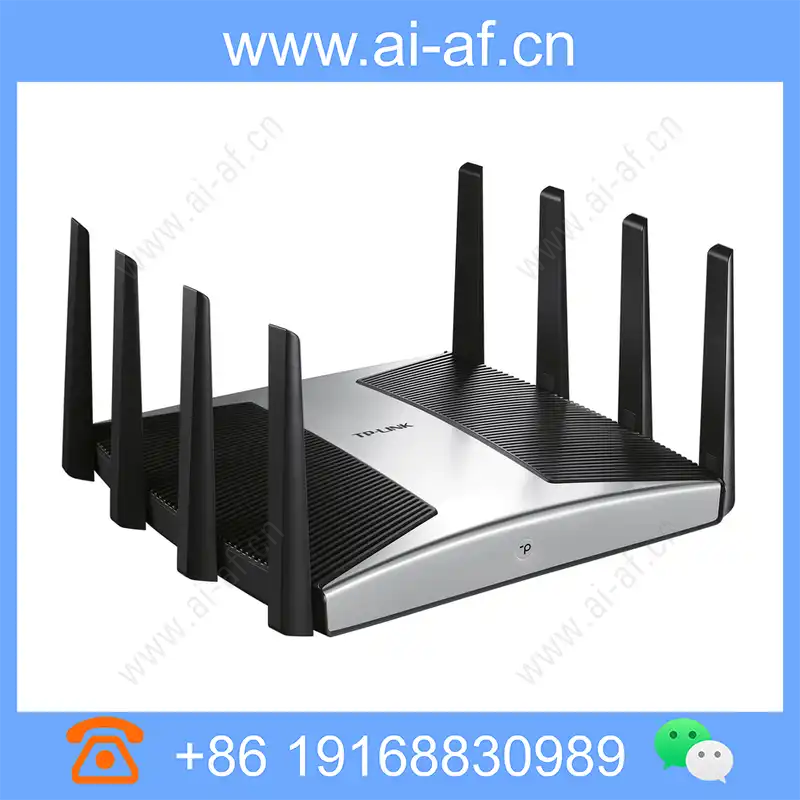

TP-LINK TL-XTR10280 Easy Exhibition Version AX10200 Tri-band Super Wi-Fi 6 Wireless Router (2.5G Port)
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax wireless protocol
Maximum wireless rate 10182Mbps (2.4GHz 574Mbps, 5G1 4804Mbps, 5G2 4804Mbps*)
< p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHzBeamforming (Beamforming)
4x4 MU-MIMO
Wi- Fi multi-frequency integration
Easy expansion function
4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug)
1 2.5G SFP port
Bare size (LxWxH): 291.7*261.2*159.3mm
Package size (LxWxH): 396.5*312.5*99.5mm
Bare machine weight: 1.23kg (single machine, without accessories and packaging)
Whole machine weight: 1.85kg (single machine
Technical Specifications
| Property Description | Property Value |
|---|---|
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax wireless protocol Maximum wireless rate 10182Mbps (2.4GHz 574Mbps, 5G1 4804Mbps, 5G2 4804Mbps*) < p>*Following regulations, select China 5G2 frequency band in the regional settings does not support 160MHzBeamforming (Beamforming) 4x4 MU-MIMO Wi- Fi multi-frequency integration Easy expansion function |

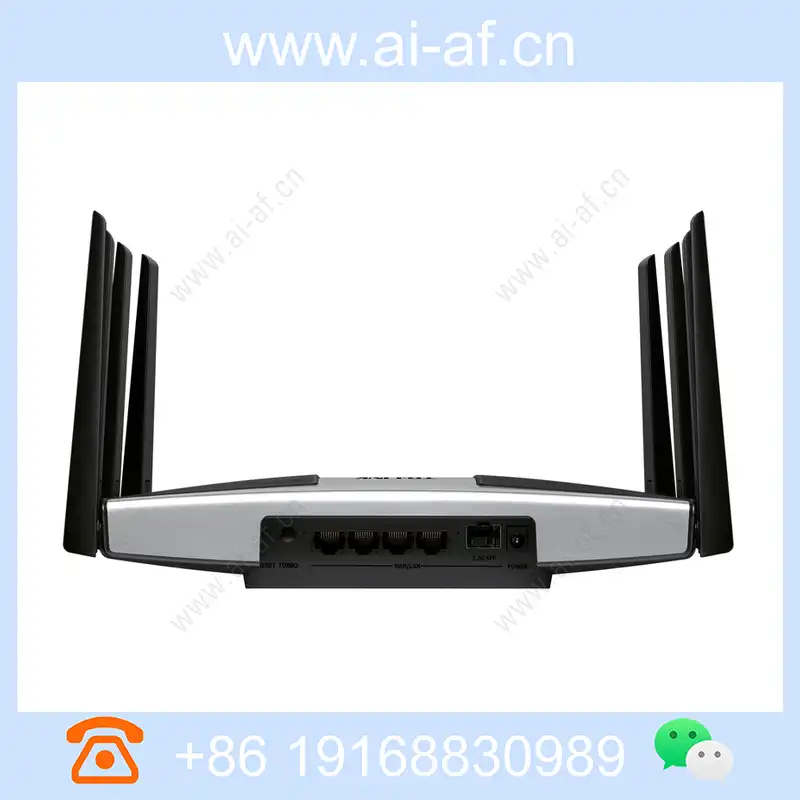

| Ethernet port | 4 10/100/1000Mbps rate adaptive Ethernet interface, support WAN / LAN adaptive (network port blind plug) 1 2.5G SFP port |
| size and weight | Bare size (LxWxH): 291.7*261.2*159.3mm Package size (LxWxH): 396.5*312.5*99.5mm Bare machine weight: 1.23kg (single machine, without accessories and packaging) Whole machine weight: 1.85kg (single machine, including accessories and packaging) |
| Antenna type | External omnidirectional antenna: 2 dual-band antennas, 6 5G antennas |
| Software function | Wireless Bridge P Signal Adjustment Terminal Manage IP and MAC Address Bind AP Isolated Virtual Server Dynamic domain name service (DDNS) DMZ host automatic cleaning wireless timing switch Local Online / Local Firmware / Remote Upgrade |
| management | Computer / Mobile / PAD Web Management Mobile App Management |
| Safety | WPA-PSK, WPA2-PSK, WPA3 wireless encryption host network, guest network administrator identity limited |
| power supply | DC power supply, factory delivery 12V / 4A power adapter |
| packing list | Router 1 Power Adapter 12V / 4A 1 Netline (1 m) 1 Quick Installation Guide 1 / p> parameter record label 1 photo |
